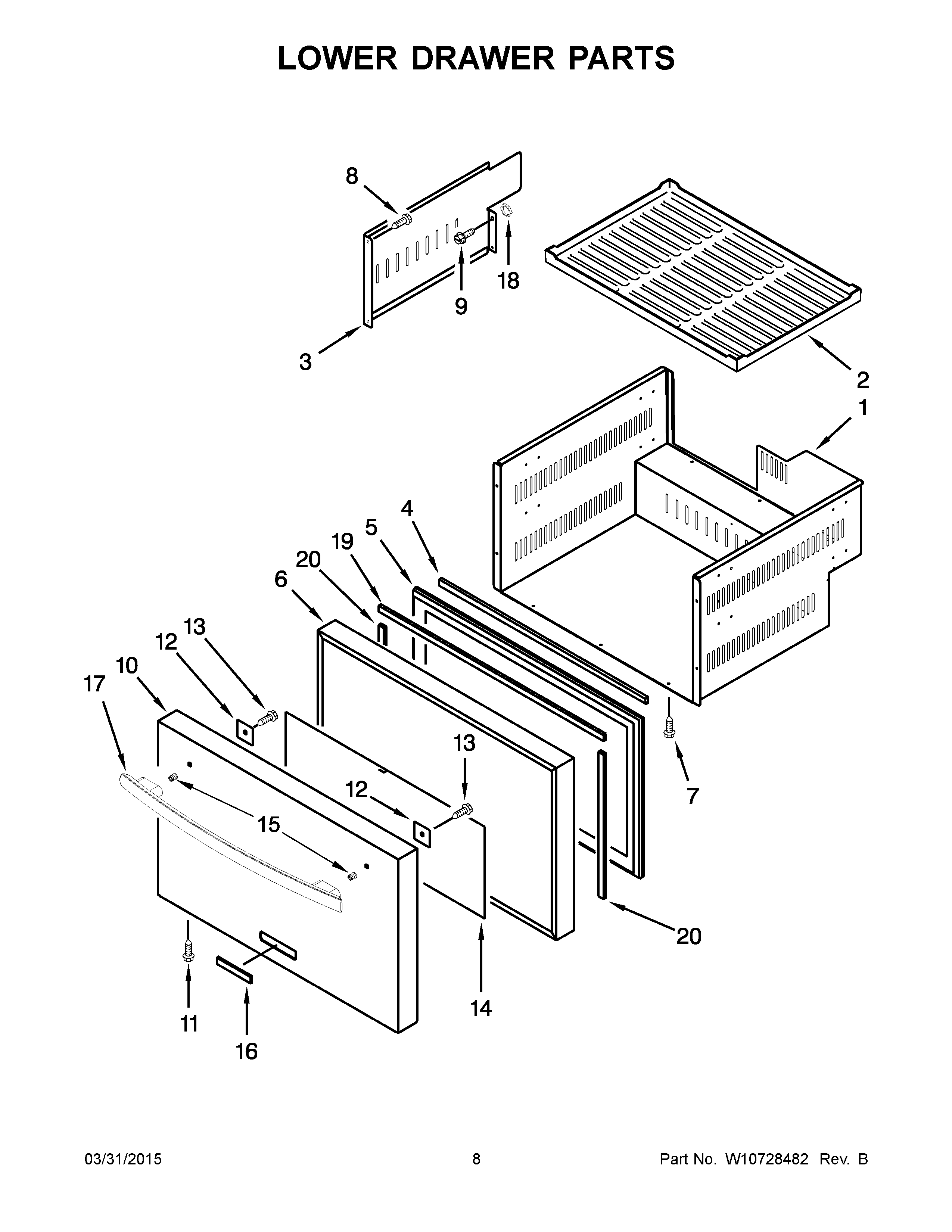

JUD24FCERS00 05 – LOWER DRAWER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10788702
1	MAY W10772903
2	MAT, LOWER DRAWER
3	MAY W10772905
4	MAY W10281317
5	GASKET
6	MAY W10772906
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10622009
11	SCREW
12	MAY W10299088
13	MAY W10204866
14	WRAP SPACER
15	MAY W10319166
16	MAY W10292471
17	MAY W10622019
18	NUT
19	DOOR GASKET, LONG
20	DOOR GASKET, SHORT
