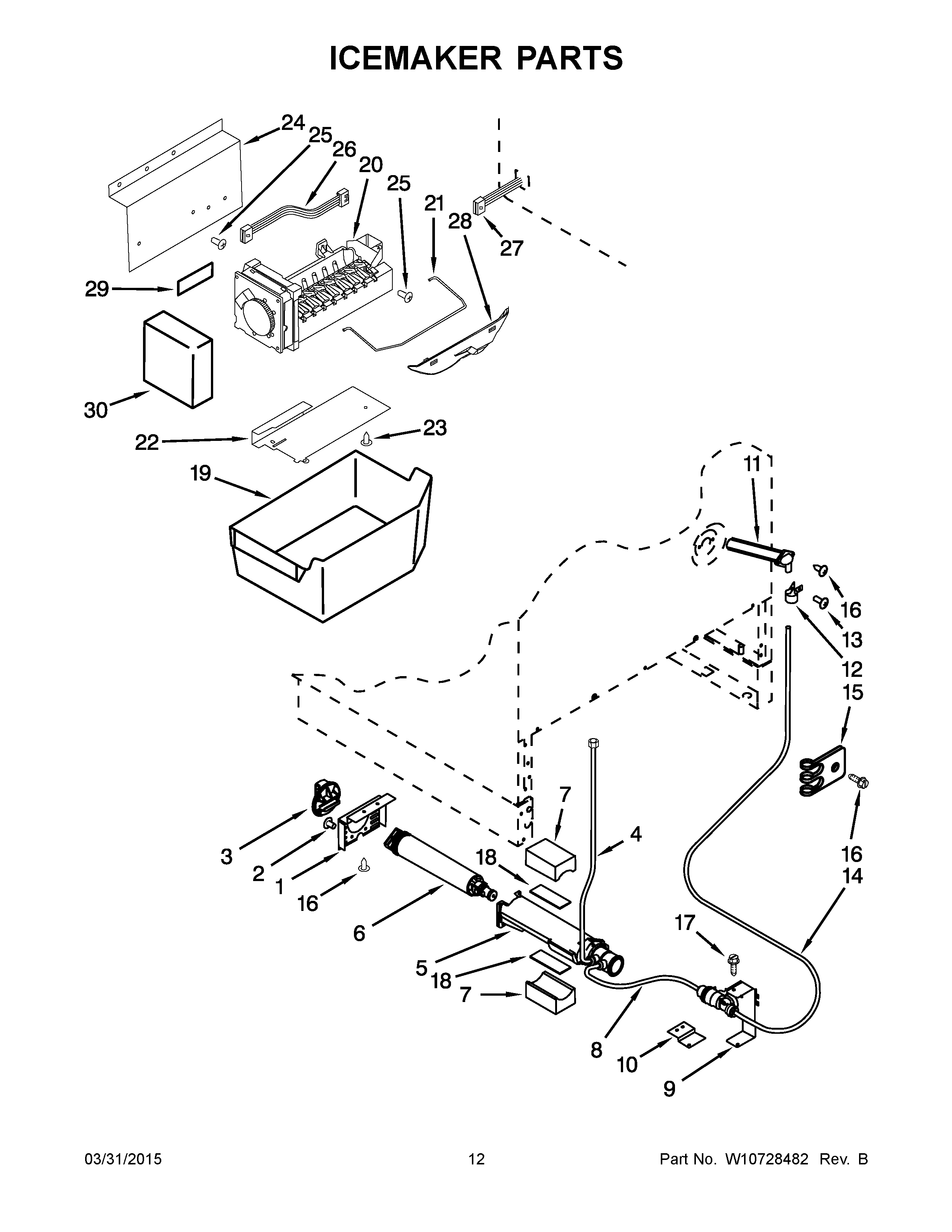

JUD24FCERS00 07 – ICEMAKER PARTS

Products

Position	Product
1	BRACKET, FILTER
2	SCREW, SUPPORT
3	CAP, WATER FILTER
4	TUBE, INLET
5	HOUSING, FILTER
6	WATER FILTER
7	BLOCK, FILTER
8	TUBE, WATER
9	VALVE, SOLENOID
10	BRACKET, VALVE
11	FITTING
12	TUBE CLAMP
13	SCREW
14	TUBE, WATER
15	TUBE CLAMP
16	MAY 4344825
17	MAY 4344832
18	TAPE, FILTER
19	PAN, ICE CUBE
20	ICEMAKER
21	MAY W10772923
22	HEAT SHIELD
23	SCREW
24	MAY W10622037
25	SCREW
26	HARNESS, DEFROST HEATER
27	MAY W10772925
28	MAY W10772926
29	PROTECTION SHEET
30	COVER, FRONT
