JUD24FRACX00 06 – UNIT PARTS
Written by
in

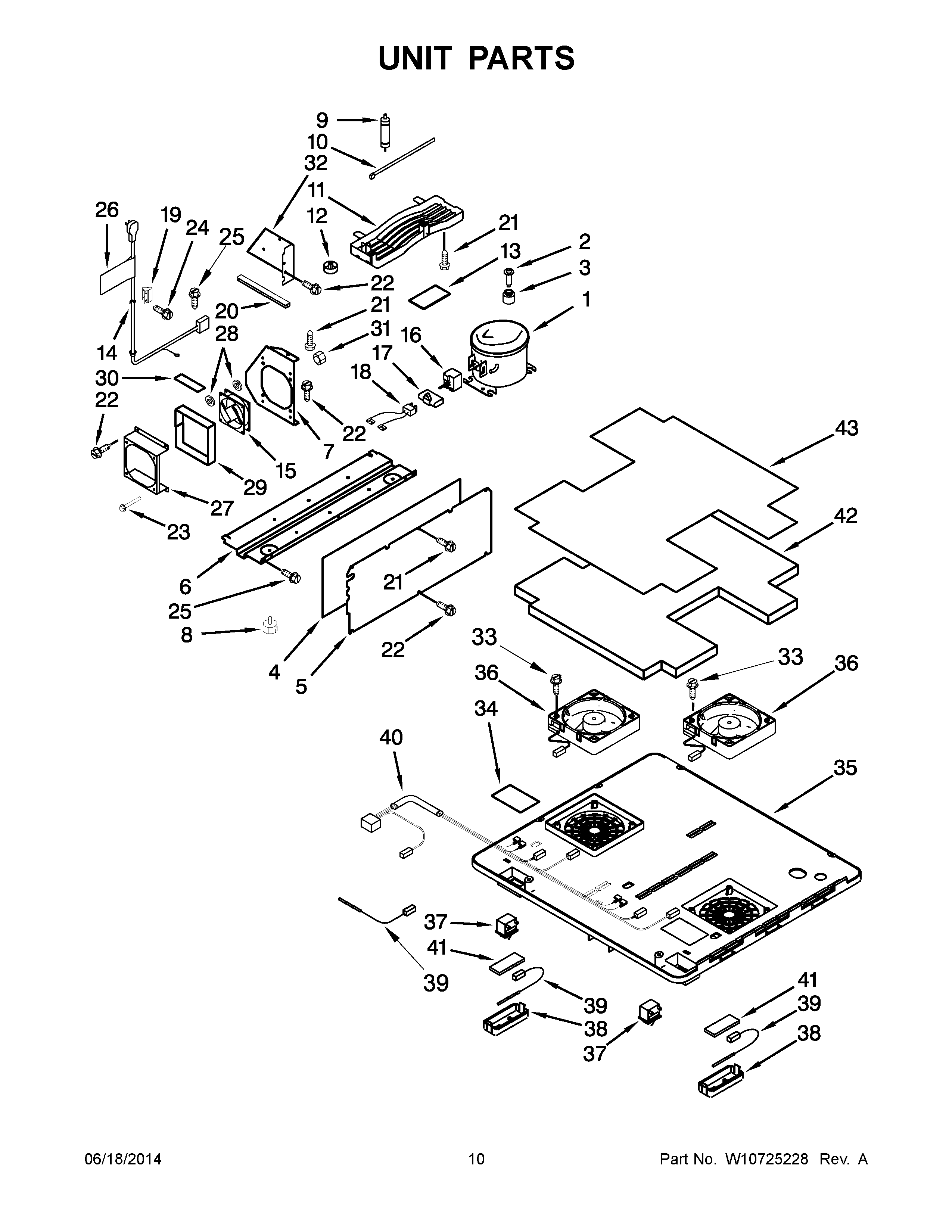

JUD24FRACX00 06 – UNIT PARTS
Products
Position
Product
1
MAY 4344775
2
MAY 4344780
3
MAY 4344779
4
MAY W10204672
5
MAY 4344786
6
MAY W10622029
7
MAY W10204674
8
MAY 4344763
9
MAY W10163273
10
MAY 4344829
11
DRAIN PAN
12
MAY W10163276
13
Pad, Rubber
14
MAY W10204676
15
MAY W10204677
16
MAY 4344776
17
MAY 4344837
18
MAY W10287954
19
CLAMP, CORD
20
MAY 4344907
21
MAY 4344825
22
MAY 4344832
23
MAY W10270492
24
MAY W10204865
25
MAY 4344826
26
MAY 4344913
27
MAY W10204687
28
MAY W10204688
29
MAY W10204689
30
MAY W10204690
31
MAY W10270493
32
MAY 4344773
33
MAY W10205061
34
TERMINAL PROTECTOR
35
MAY W10622034
36
MAY W10204942
37
MAY W10721454
38
MAY W10622036
39
MAY W10204946
40
MAY W10204947
41
MAY W10204948
42
MAY W10204952
43
MAY W10205060
←
