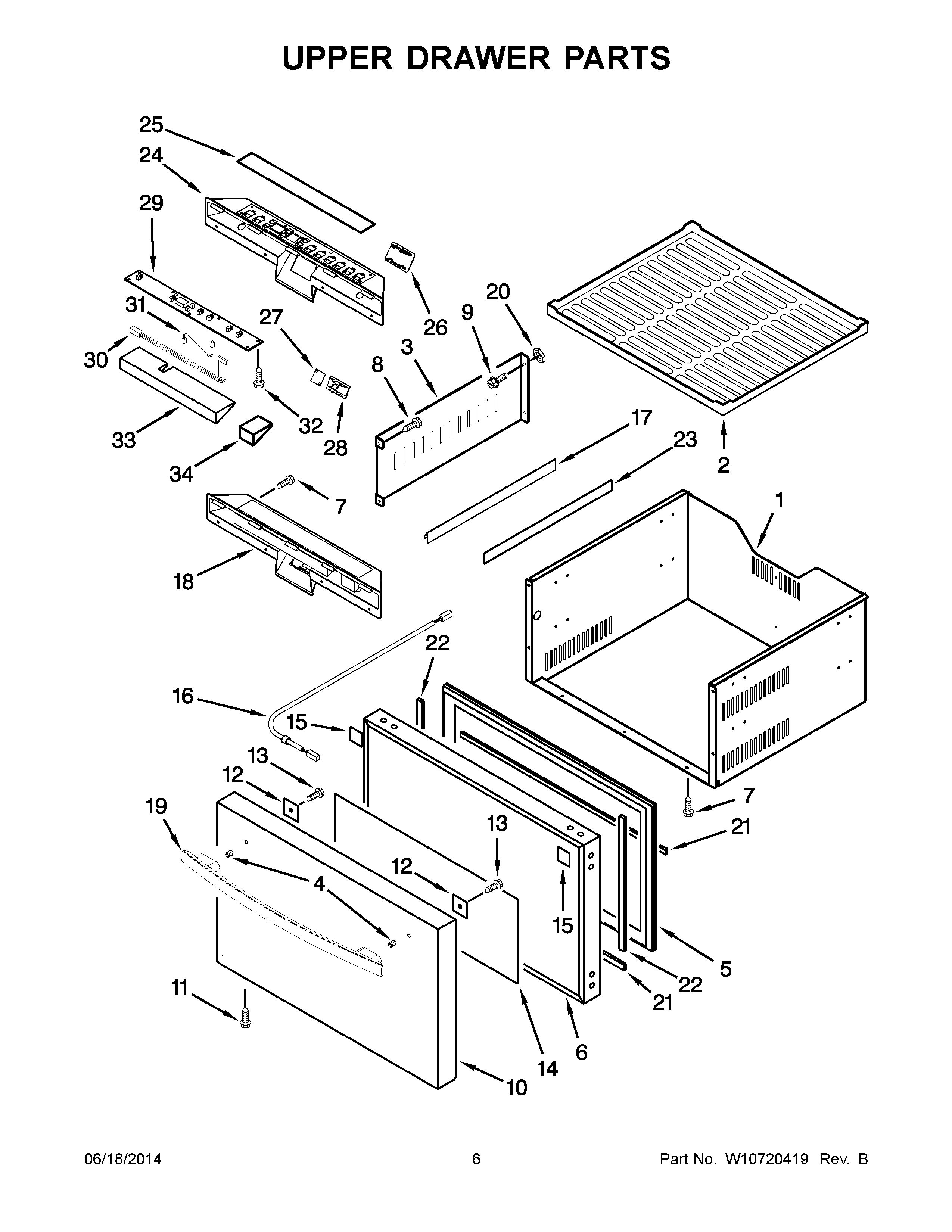

JUD24FRARS00 04 – UPPER DRAWER PARTS

JUD24FRARS00 04 – UPPER DRAWER PARTS

Written by

in

JUD24FRARS00 04 – UPPER DRAWER PARTS

Products

Position	Product
1	MAY W10622003
2	MAT, UPPER DRAWER
3	MAY W10270486
4	MAY W10319166
5	GASKET
6	MAY W10622008
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10622009
11	SCREW
12	MAY W10622815
13	MAY W10204866
14	WRAP SPACER
15	MAY W10204868
16	MAY W10622011
17	SUPPORT, LEAD WIRE
18	MAY W10721445
19	MAY W10622019
20	NUT
21	DOOR GASKET, LONG
22	DOOR GASKET, SHORT
23	WIRE SUPPORT TAPE
24	MAY W10721449
25	MAY W10270518
26	LAMP COVER
27	LED LAMP
28	LAMP HOLDER
29	MAY W10721450
30	MAY W10204933
31	MAY W10204934
32	SCREW, LED
33	MAY W10622023
34	MAY W10204937
