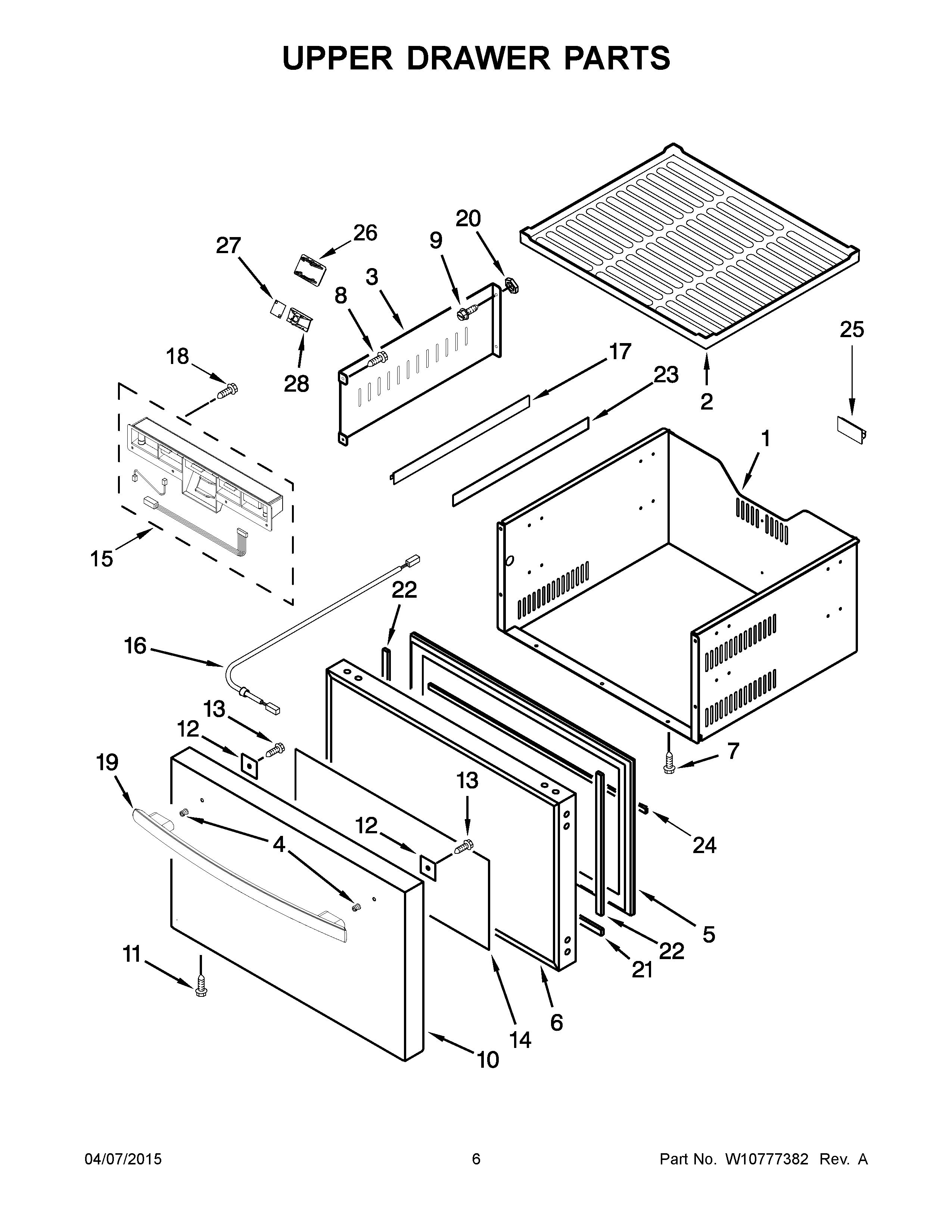

JUD24FRECX00 04 – UPPER DRAWER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10788702
1	MAY W10622003
2	MAT, UPPER DRAWER
3	MAY W10270486
4	MAY W10319166
5	GASKET
6	TOP FOAMED DOOR ASSEMBLY
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10622009
11	SCREW
12	MAY W10299088
13	MAY W10204866
14	WRAP SPACER
15	MAY W10796447
16	HARNESS, DISPLAY TO INDICATOR
17	SUPPORT, LEAD WIRE
18	SCREW
19	MAY W10622019
20	NUT
21	DOOR GASKET, LONG
22	DOOR GASKET, SHORT
23	MAY W10205081
24	SEAL, COLD AIR
25	SUPPORT, WIRE
26	LAMP COVER
27	LED LAMP
28	LAMP HOLDER
