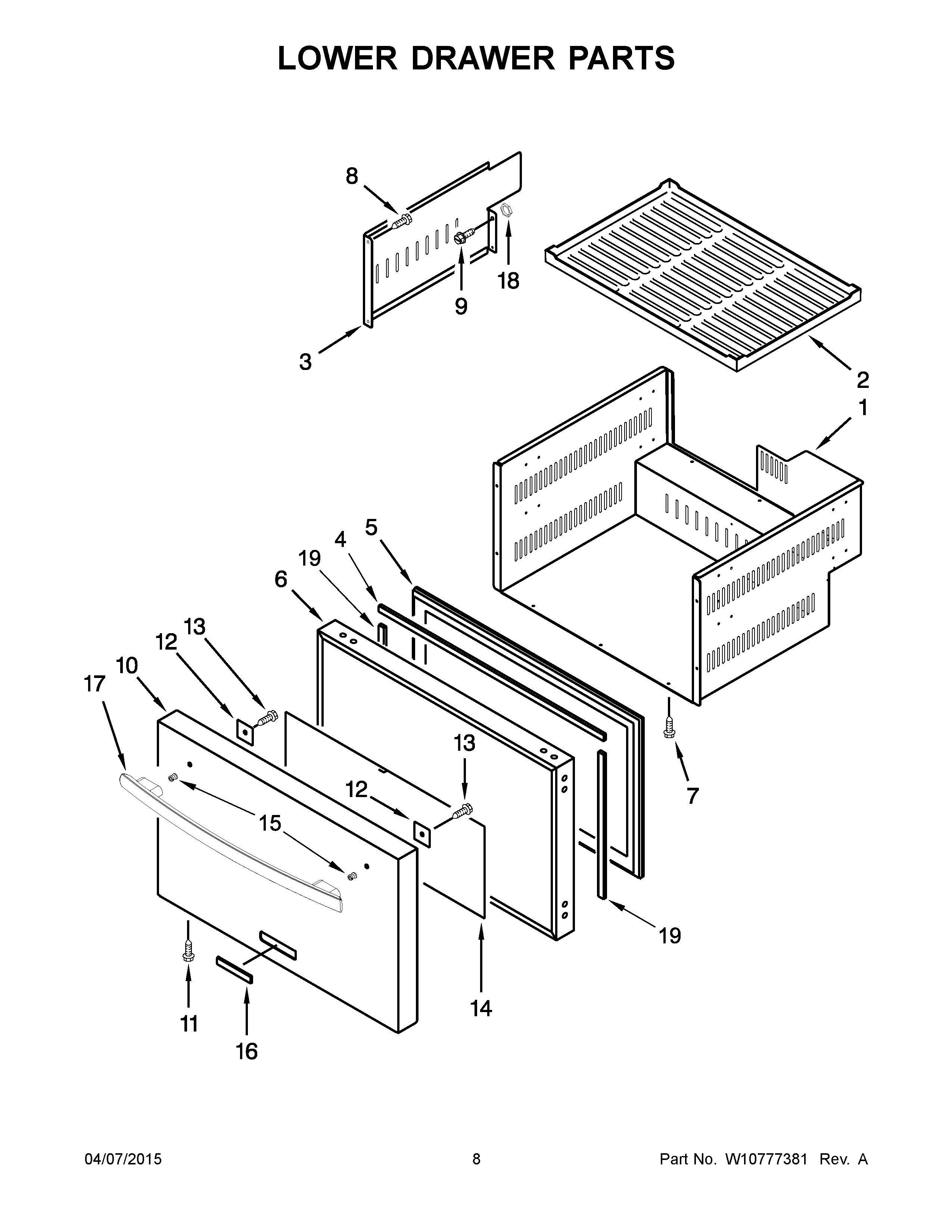

JUD24FRERS00 05 – LOWER DRAWER PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10788702
1MAY W10721452
2MAT, LOWER DRAWER
3MAY W10796446
4DOOR GASKET, LONG
5GASKET
6MAY W10772906
7SCREW
8MAY W10204809
9SCREW
10MAY W10622009
11SCREW
12MAY W10299088
13MAY W10204866
14WRAP SPACER
15MAY W10319166
16MAY W10292471
17MAY W10622019
18NUT
19DOOR GASKET, SHORT
