JUD24FRERS00 06 – UNIT PARTS – Aparts

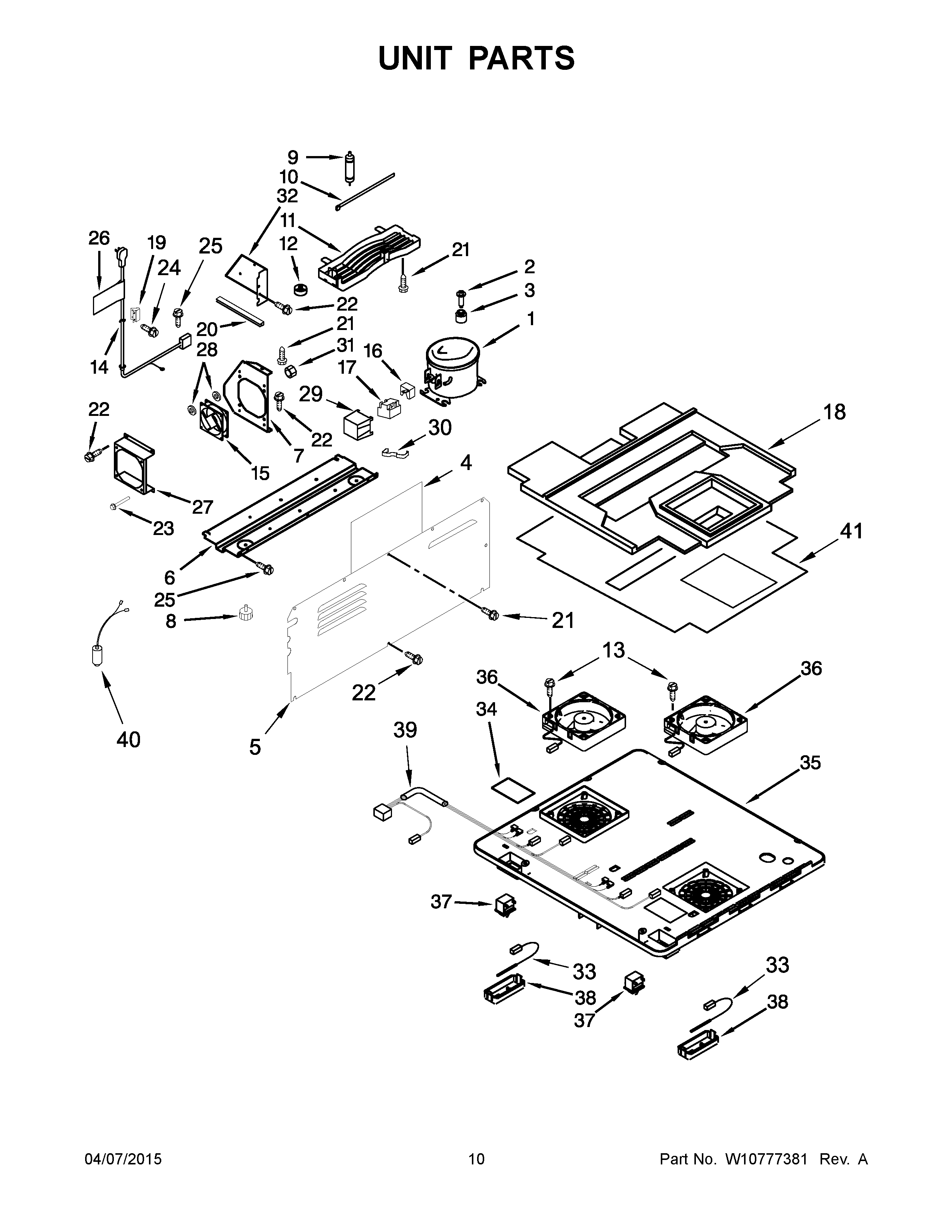

JUD24FRERS00 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	ALUMINUM TAPE
1	MAY 4344775
2	MAY W10772873
3	MAY 4344779
4	MAY W10778963
5	MAY W10796445
6	MAY W10772877
7	MAY W10204674
8	MAY 4344763
9	MAY W10163273
10	MAY 4344829
11	DRAIN PAN
12	MAY W10163276
13	MAY W10205061
14	MAY W10204676
15	MAY W10772882
16	MAY W10778965
17	MAY W10778966
18	INSULATION, FAN COVER
19	CLAMP, CORD
20	MAY 4344907
21	MAY 4344825
22	MAY 4344832
23	MAY W10772886
24	MAY W10204865
25	MAY 4344797
26	MAY 4344913
27	MAY W10772889
28	MAY W10204688
29	MAY W10778967
30	MAY W10778971
31	NUT
32	MAY 4344773
33	MAY W10772916
34	TERMINAL PROTECTOR
35	MAY W10796448
36	MAY W10204942
37	MAY W10721454
38	MAY W10778979
39	MAY W10772918
40	MAY W10778969
41	PLATE COVER
