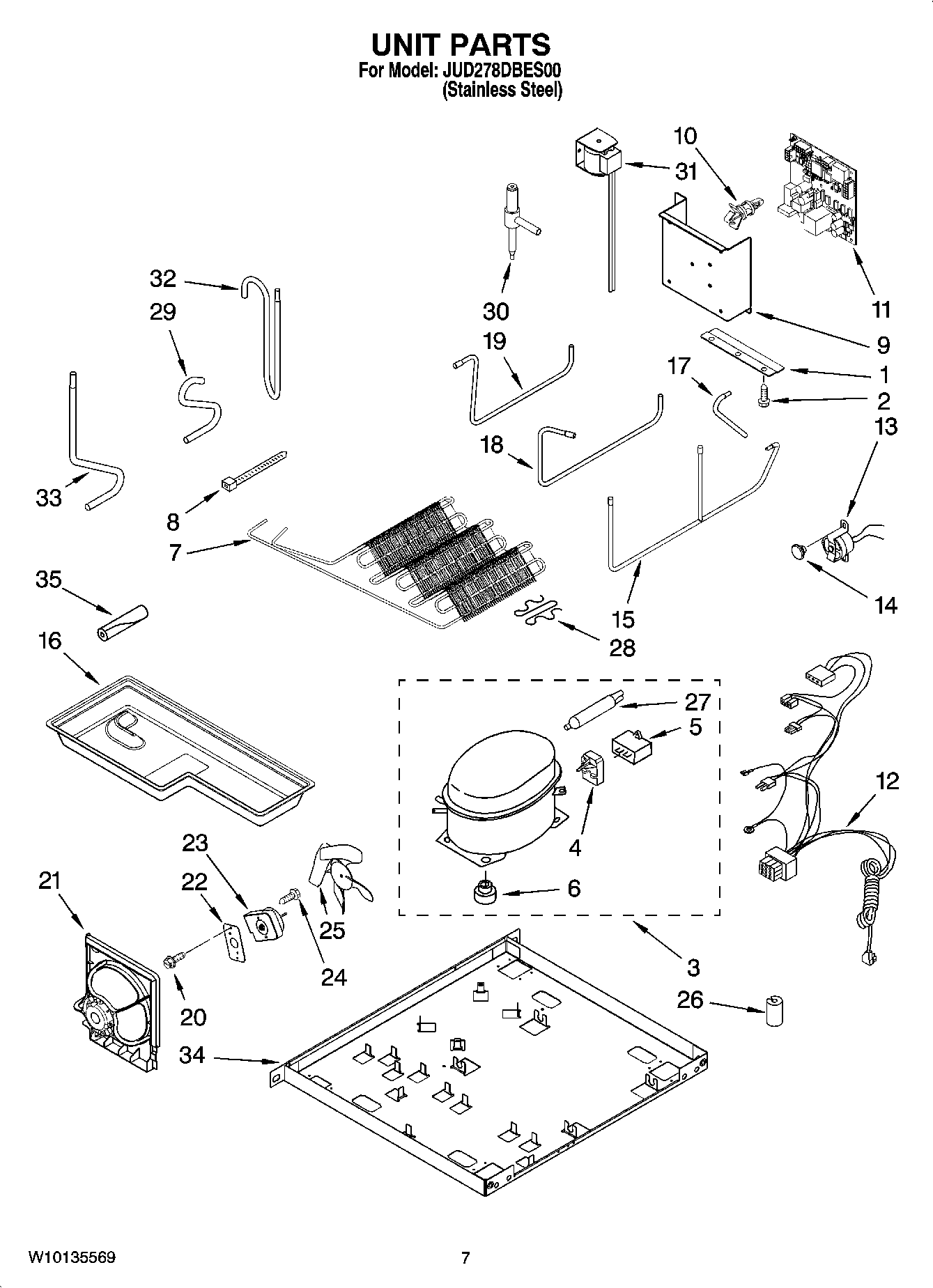

JUD278DBES00 04 – UNIT PARTS

JUD278DBES00 04 – UNIT PARTS

Written by

in

JUD278DBES00 04 – UNIT PARTS

Products

Position	Product
1	MAY 2257844
2	MAY 489478
3	MAY 2257884
4	MAY 2258026
5	CAPACITATOR (SERVICE)
6	Grommet (4) (Service Only)
7	MAY 2257869
8	Cable Tie
9	MAY 2257840
10	Spacer (5)
11	MAY 2252184
12	MAY 2310005
13	MAY 2258137
14	Plug, Button (2)
15	MAY 2257905
16	MAY 2257890
17	MAY 2258083
18	MAY 2257902
19	MAY 2257903
20	MAY 8281196
21	Bracket, Fan
22	Plate, Motor
23	Motor, Fan
24	MAY 8281197
25	MAY 2225834
26	GROMMET, CONDENSER
27	MAY 2258316
28	Clip, Mounting
29	MAY 2257919
30	MAY 2257924
31	MAY 2257537
32	MAY 2258070
33	MAY 2258071
34	MAY 2257876
35	MAY 2158826
