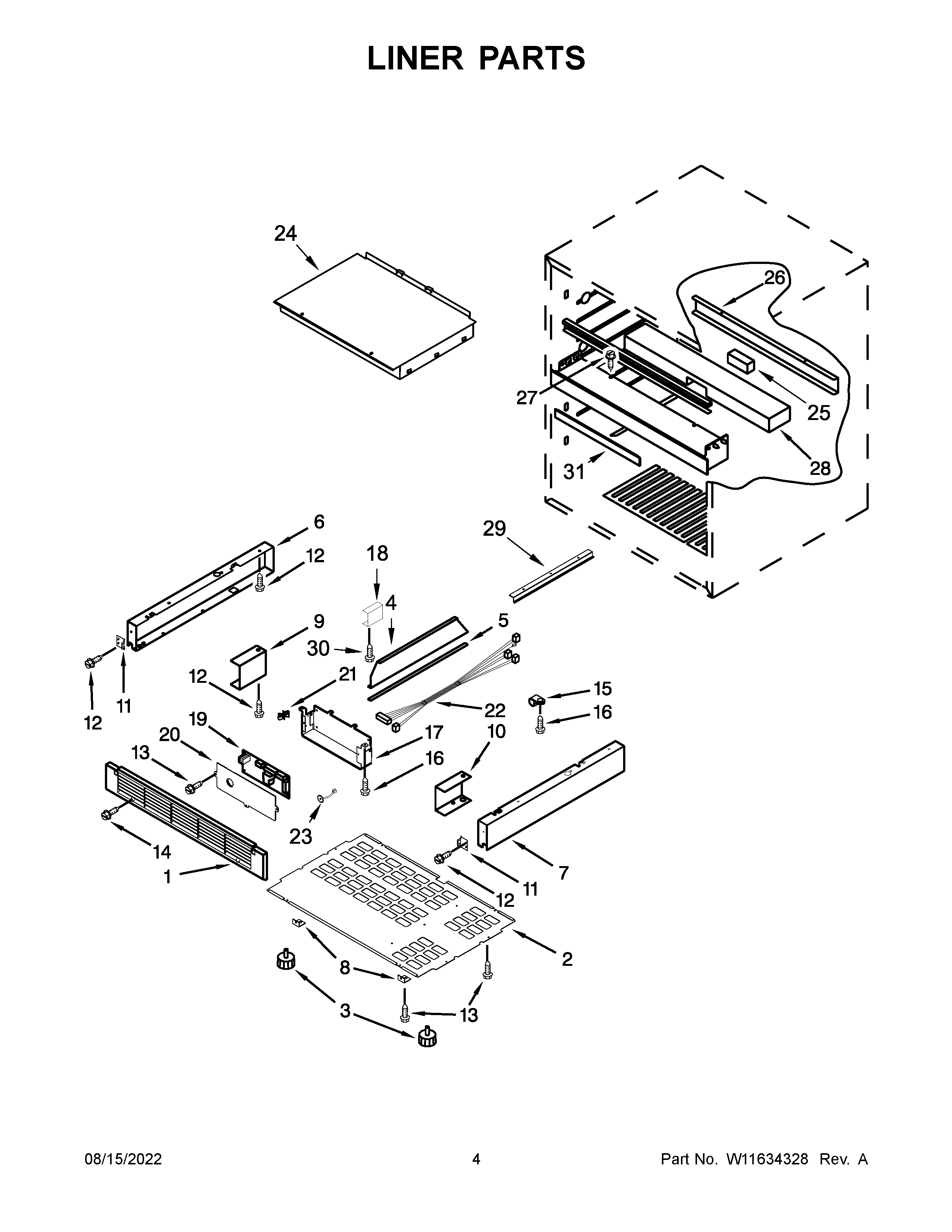

JUDFP242HL01 03 – LINER PARTS

Products

Position	Product
1	W10204635 Whirlpool Refrigerator Grille
2	W10772863 Whirlpool Refrigerator Cabinet Base
3	W11106296 Whirlpool Refrigerator Leveler
4	AUXILIARY PLATE
5	4344823 Whirlpool Refrigerator Seal
6	FRAME (LEFT HAND)
7	FRAME (RIGHT HAND)
8	W10239388 Whirlpool Brace
9	4344820 Whirlpool Refrigerator Support
10	4344821 Whirlpool Refrigerator Support
11	W10204640 Whirlpool Refrigerator Clip
12	4344797 Whirlpool Screw
13	4344826 Whirlpool Refrigerator Screw
14	W10319184 Whirlpool Refrigerator Screw
15	CABLE CLAMP
16	SCREW
17	W10772866 Whirlpool Refrigerator Control Box
18	BRACKET, PCB BOX
19	W11422836 Whirlpool Refrigerator Electronic Control Board
20	W10788698 Whirlpool Refrigerator Cover
21	W10204659 Whirlpool Refrigerator Spacer
22	W10772870 Whirlpool Refrigerator Wire Harness
23	W10788693 Whirlpool Refrigerator Speaker
24	MULLION BODY ASSEMBLY
25	W10205072 Whirlpool Refrigerator Insulation
26	MULLION CASE COVER
27	SCREW
28	MULLION INSULATION
29	BLOCK AIR CIRCULATION
30	SCREW
31	MULLION CASE INSULATION FRONT
