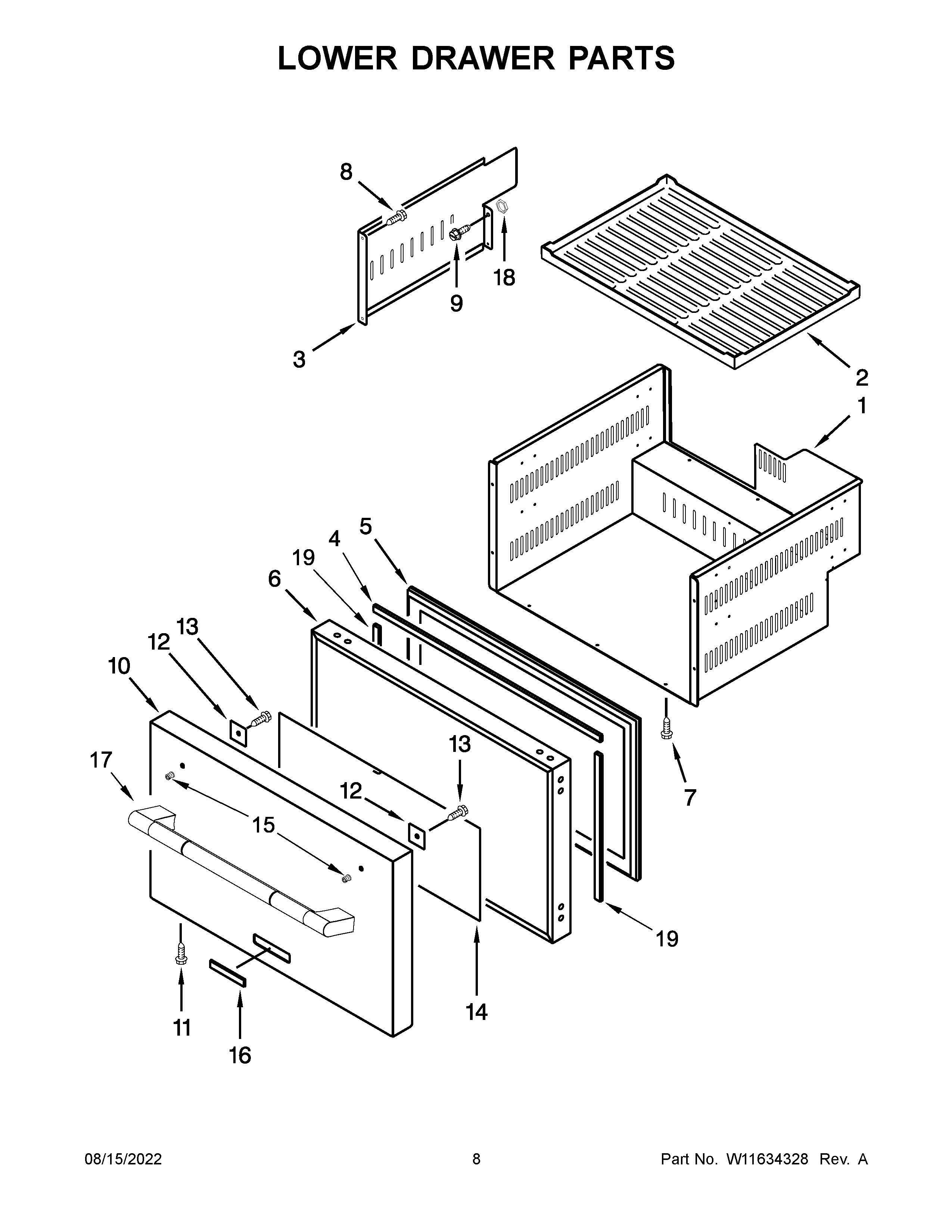

JUDFP242HL01 05 – LOWER DRAWER PARTS

JUDFP242HL01 05 – LOWER DRAWER PARTS

Written by

in

JUDFP242HL01 05 – LOWER DRAWER PARTS

Products

PositionProduct
1DRAWER BOX ASSEMBLY, UPPER
2MAT, LOWER DRAWER
3BOTTOM DRAWER PARTITION
4W10204889 Whirlpool Refrigerator Gasket
5WPW10622006 Whirlpool Refrigerator Gasket
6BOTTOM FOAMED DOOR ASSEMBLY
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10W11422815 Whirlpool Refrigerator Front Drawer
11W10319185 Whirlpool Screw
12W11263339 Whirlpool Refrigerator Plate
13W10859467 Whirlpool Refrigerator Screw
14W10204867 Whirlpool Front Drawer
15W11179356 Whirlpool Refrigerator Stud Handle
16W11422825 Whirlpool Refrigerator Nameplate
17W11422798 Whirlpool Handle
18W10204920 Whirlpool Refrigerator Nut
19W10204897 Whirlpool Refrigerator Gasket
