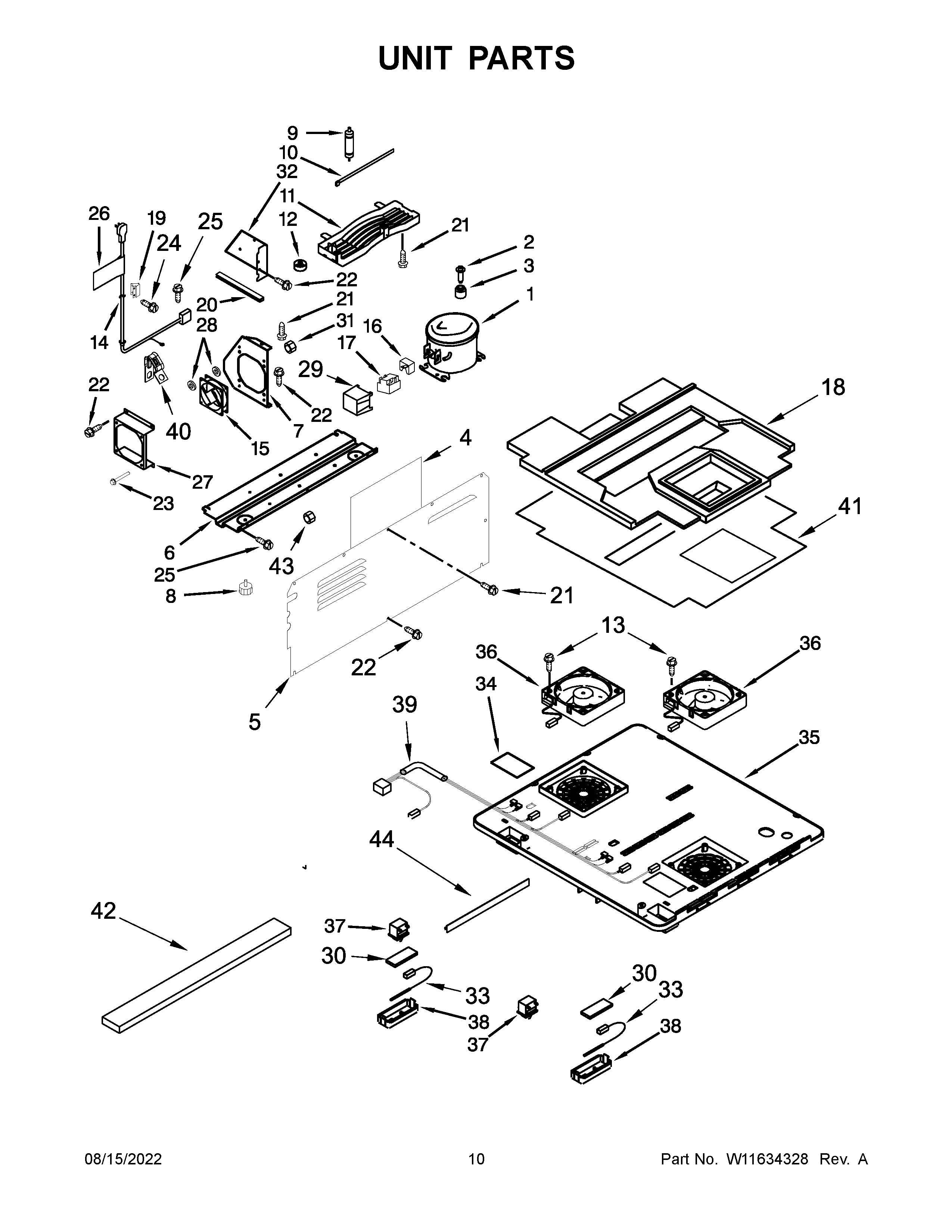

JUDFP242HL01 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10266810 Whirlpool Refrigerator Repair Kit
1	W11422743 Whirlpool Compressor
2	W10772873 Whirlpool Screw
3	WP4344779 Whirlpool Refrigerator Grommet
4	INSULATION, REAR COVER
5	W10796445 Whirlpool Refrigerator Back Cover
6	CABINET BASE PLATE
7	W10204674 Whirlpool Refrigerator Baffle
8	W11106296 Whirlpool Refrigerator Leveler
9	W10163273 Whirlpool Refrigerator Tube
10	TIE, CABLE
11	W10316689 Whirlpool Refrigerator Drip Pan
12	W10163276 Whirlpool Refrigerator Trap
13	W10205061 Whirlpool Screw Assembly
14	WPW10204676 Whirlpool Refrigerator Power Cord
15	W10772882 Whirlpool Refrigerator Condenser Motor
16	OVERLOAD
17	W11596023 Whirlpool Start Device
18	INSULATION, FAN COVER
19	CLAMP, CORD
20	TRIM, EDGE
21	SCREW
22	W11380570 Whirlpool Microwave Screw
23	SCREW
24	W10837731 Whirlpool Screw Assembly
25	4344797 Whirlpool Screw
26	WARNING LABEL
27	W11506521 Whirlpool Refrigerator Bracket
28	W10204688 Whirlpool Plate Assembly
29	COVER, RELAY
30	W10204948 Whirlpool Refrigerator Control Box
31	NUT
32	BRACKET, (DEFROST TIMER)
33	W11238391 Whirlpool Refrigerator Thermistor
34	W10205062 Whirlpool Wire Cover
35	COVER, FAN
36	W10854409 Whirlpool Refrigerator Evaporator Motor
37	W10721454 Whirlpool Refrigerator Switch
38	SENSOR CASE
39	W10772918 Whirlpool Refrigerator Wire Harness
40	CLAMP, CORD
41	PLATE COVER
42	W10788704 Whirlpool Refrigerator Seal
43	SPRING WASHER
44	SEAL
