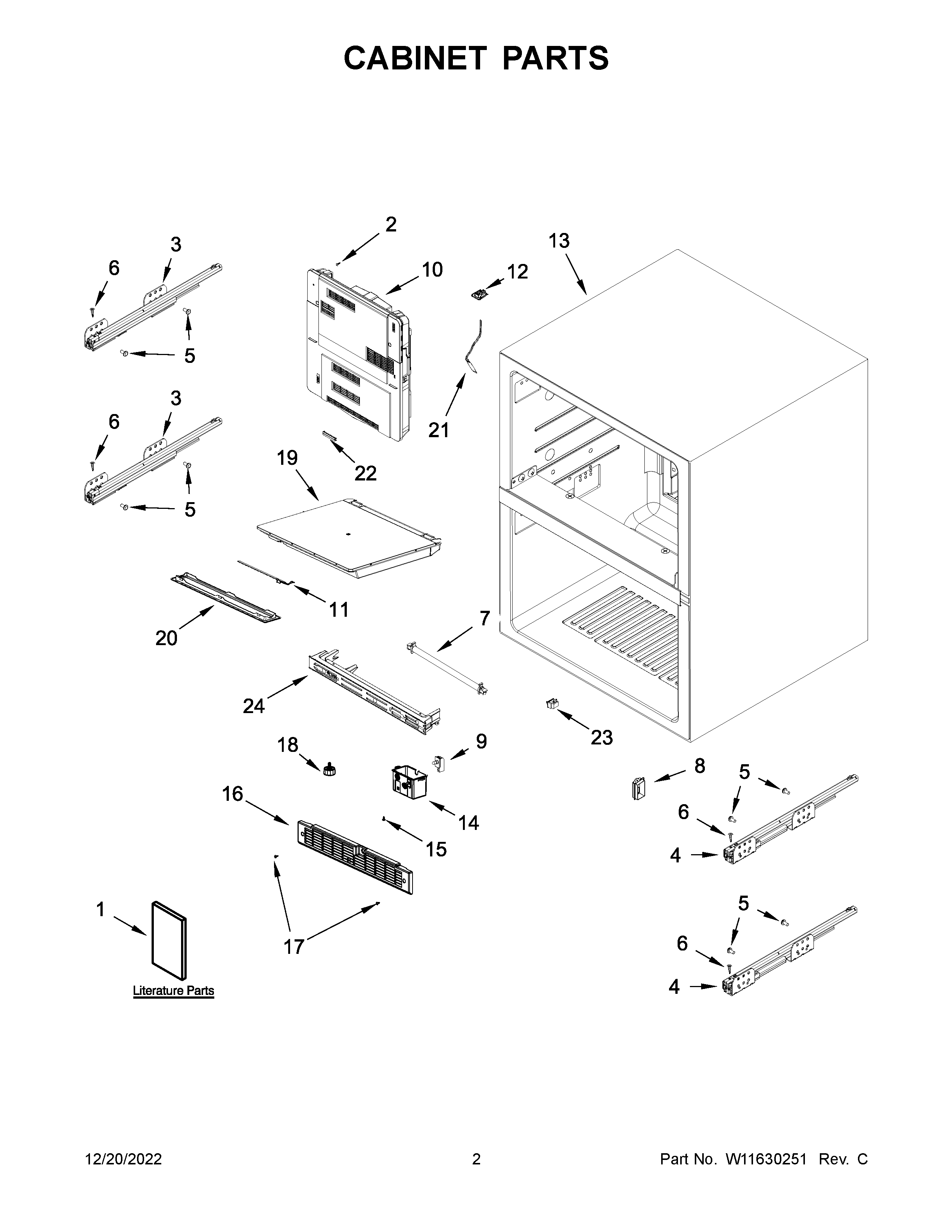

JUDFP242HL11 02 – CABINET PARTS

Products

Position	Product
1B	USE AND CARE GUIDE
1A	TECH SHEET
1	ENERGY GUIDE
2	SCREW
3	W11599889 Whirlpool Slide
4	W11599890 Whirlpool Slide Assembly
5	SCREW
6	SCREW
7	W11359416 Whirlpool Heater
8	SWITCH, CASE
9	W11266082 Whirlpool Switch Assembly
10	W11568769 Whirlpool Evaporator Cover
11	LED
12	CONNECTOR, COVER
13	CABINET (NOT A SERVICABLE PART)
14	ASSEMBLY, SWITCH BOX
15	W11371097 Whirlpool Screw
16	W11700300 Whirlpool Refrigerator Grille
17	W11675284 Whirlpool Screw
18	W11106296 Whirlpool Refrigerator Leveler
19	ASSEMBLY, SEPARATOR
20	W11312450 Whirlpool Light Lens
21	W11359415 Whirlpool Bi-metal Defrost
22	COVER PIECE, EVAPORATOR
23	W11579510 Whirlpool Refrigerator Switch
24	W11579511 Whirlpool Trim
