JUDFP242HM00 06 – UNIT PARTS – Aparts

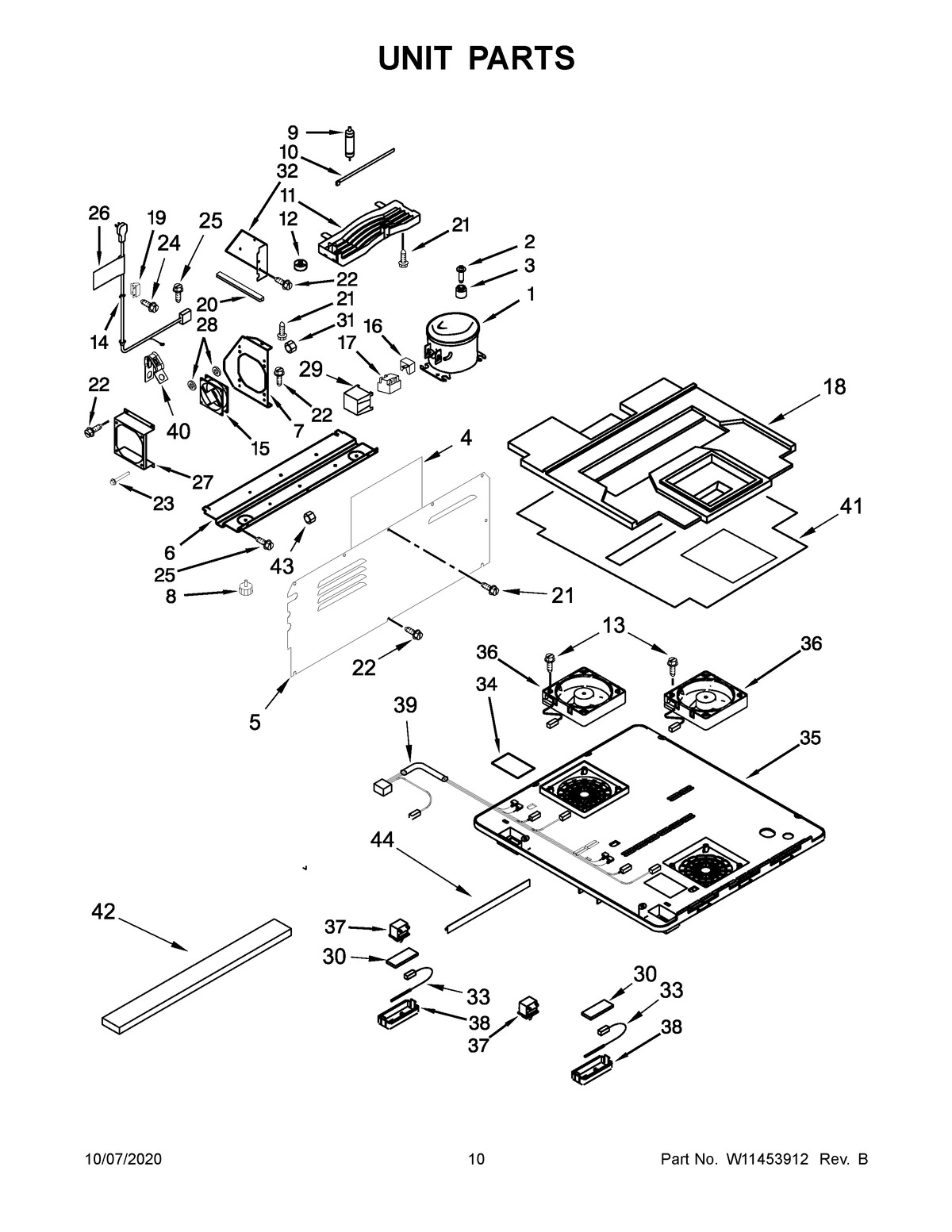

JUDFP242HM00 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	ALUMINUM TAPE
1	COMPRESSOR
2	MAY 4344780
3	MAY 4344779
4	MAY W10778963
5	MAY W10796445
6	CABINET BASE PLATE
7	MAY W10204674
8	MAY 4344763
9	MAY W10163273
10	MAY 4344829
11	DRAIN PAN
12	MAY W10163276
13	MAY W10205061
14	MAY W10204676
15	MAY W10772882
16	OVERLOAD RELAY
17	PTC THERMISTOR
18	INSULATION, FAN COVER
19	CLAMP, CORD
20	MAY 4344907
21	MAY 4344825
22	MAY 4344832
23	SCREW
24	MAY W10204865
25	MAY 4344797
26	WARNING LABEL
27	MAY W10772889
28	MAY W10204688
29	COVER, RELAY
30	MAY W10204948
31	NUT
32	BRACKET, DEFROST TIMER
33	MAY W10772916
34	TERMINAL PROTECTOR
35	MAY W10796448
36	MAY W10204942
37	MAY W10721454
38	MAY W10775535
39	MAY W10772918
40	MAY W10281591
41	PLATE COVER
42	SEAL
43	SPRING WASHER
44	SEAL
