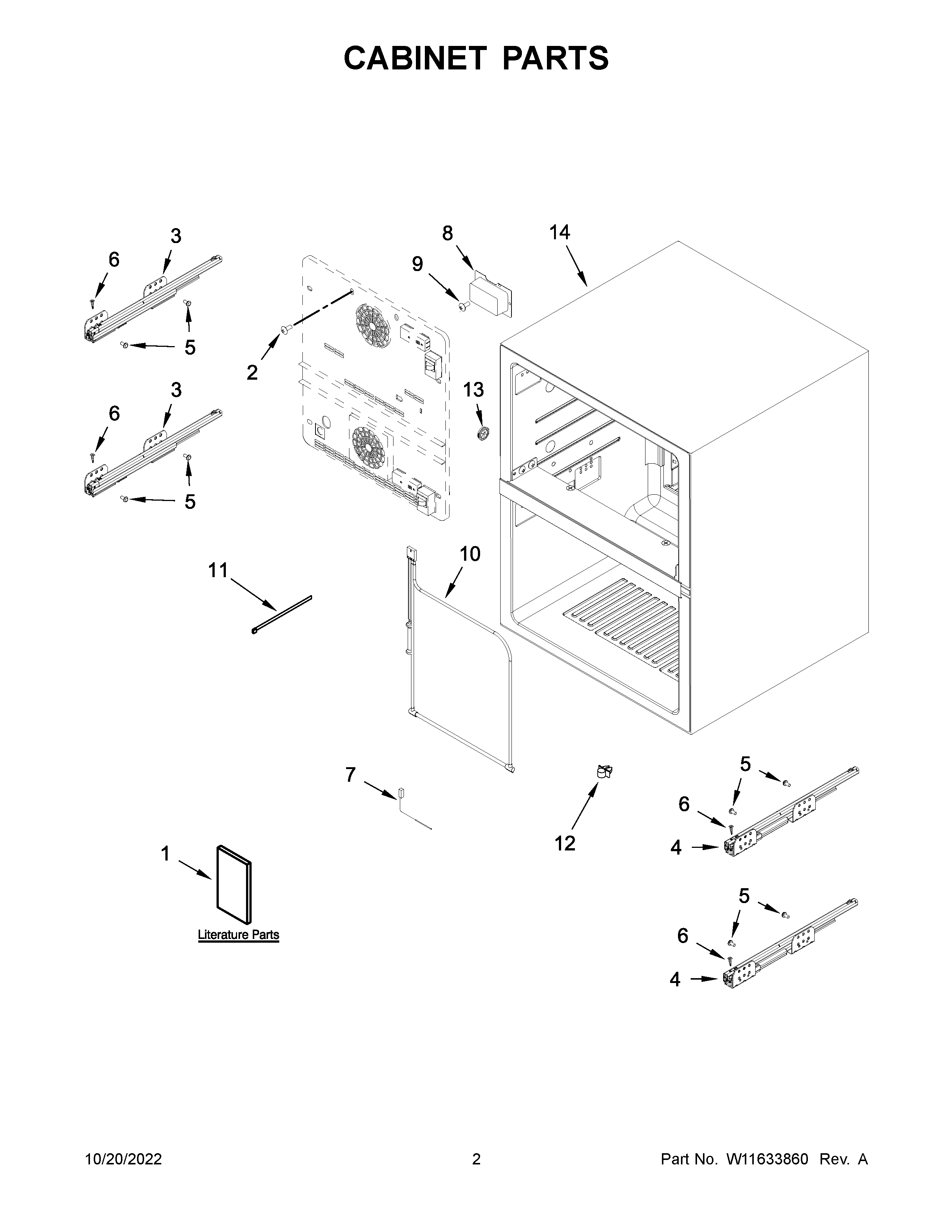

JUDFP242HM01 02 – CABINET PARTS

JUDFP242HM01 02 – CABINET PARTS

Written by

in

JUDFP242HM01 02 – CABINET PARTS

Products

PositionProduct
1BUSE & CARE GUIDE
1ASERVICE & WIRING SHEET
1ENERGY GUIDE
2SCREW
3W10621521 Whirlpool Refrigerator Slide
4W10621523 Whirlpool Refrigerator Slide
5SCREW
6SCREW
7W11573590 Whirlpool Refrigerator Thermistor
8COVER
94344826 Whirlpool Refrigerator Screw
10W10204621 Whirlpool Refrigerator Bimetal Defrost
114344829 Whirlpool Tie Wire
12W10238022 Whirlpool Refrigerator Clip
13W10621514 Whirlpool Refrigerator Temperature Control Pad
14CABINET (NOT A SERVICEABLE PART)
