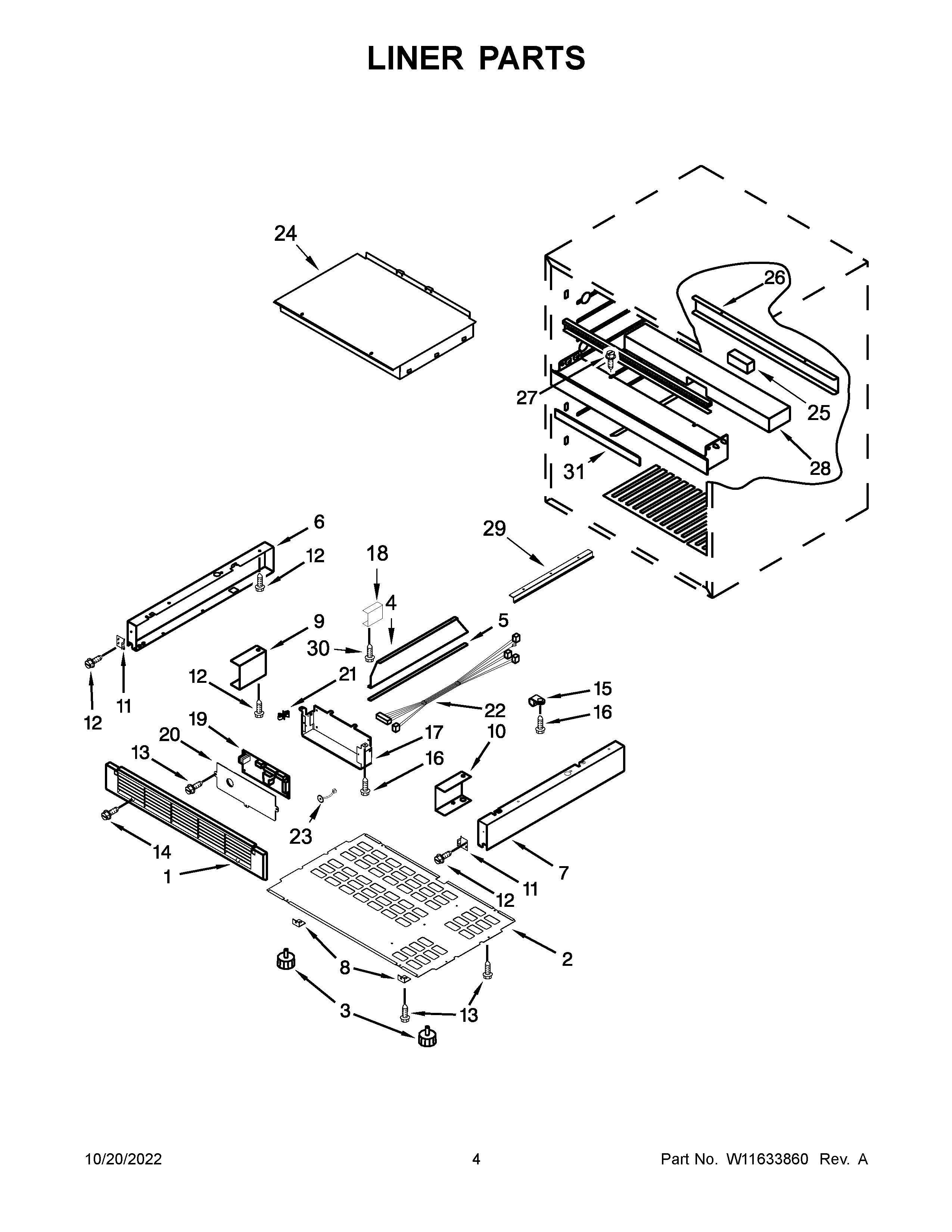

JUDFP242HM01 03 – LINER PARTSadmin2025-04-26T09:36:54+00:00JUDFP242HM01 03 – LINER PARTS ProductsPositionProduct1W10204635 Whirlpool Refrigerator Grille2W10772863 Whirlpool Refrigerator Cabinet Base3W11106296 Whirlpool Refrigerator Leveler4AUXILIARY PLATE54344823 Whirlpool Refrigerator Seal6FRAME (LEFT HAND)7FRAME (RIGHT HAND)8W10239388 Whirlpool Brace94344820 Whirlpool Refrigerator Support104344821 Whirlpool Refrigerator Support11W10204640 Whirlpool Refrigerator Clip124344797 Whirlpool Screw134344826 Whirlpool Refrigerator Screw14W10319184 Whirlpool Refrigerator Screw15CABLE CLAMP16SCREW17W10772866 Whirlpool Refrigerator Control Box18BRACKET, PCB BOX19W11422836 Whirlpool Refrigerator Electronic Control Board20W10788698 Whirlpool Refrigerator Cover21W10204659 Whirlpool Refrigerator Spacer22W10772870 Whirlpool Refrigerator Wire Harness23W10788693 Whirlpool Refrigerator Speaker24MULLION BODY ASSEMBLY25W10205072 Whirlpool Refrigerator Insulation26MULLION CASE COVER27SCREW28MULLION INSULATION29BLOCK AIR CIRCULATION30SCREW31MULLION CASE INSULATION FRONT
