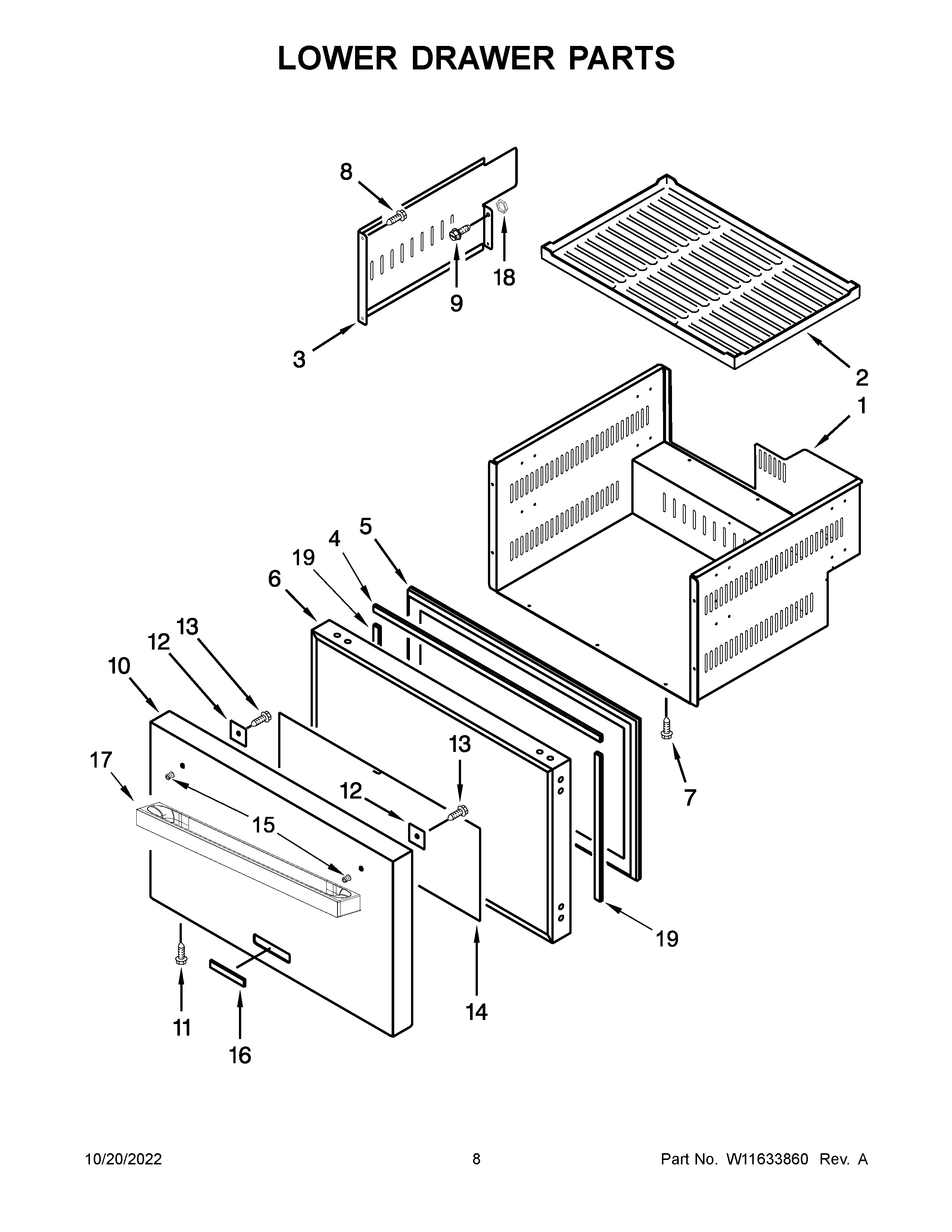

JUDFP242HM01 05 – LOWER DRAWER PARTS

Products

Position	Product
1	DRAWER BOX ASSEMBLY, UPPER
2	MAT, LOWER DRAWER
3	BOTTOM DRAWER PARTITION
4	W10204889 Whirlpool Refrigerator Gasket
5	WPW10622006 Whirlpool Refrigerator Gasket
6	BOTTOM FOAMED DOOR ASSEMBLY
7	SCREW
8	SCREW
9	W10204810 Whirlpool Screw
10	WRAP, STAINLESS STEEL
11	W10319185 Whirlpool Screw
12	W11263339 Whirlpool Refrigerator Plate
13	W10859467 Whirlpool Refrigerator Screw
14	W10204867 Whirlpool Front Drawer
15	W11179356 Whirlpool Refrigerator Stud Handle
16	W11422825 Whirlpool Refrigerator Nameplate
17	HANDLE (NOIR)
18	W10204920 Whirlpool Refrigerator Nut
19	W10204897 Whirlpool Refrigerator Gasket
