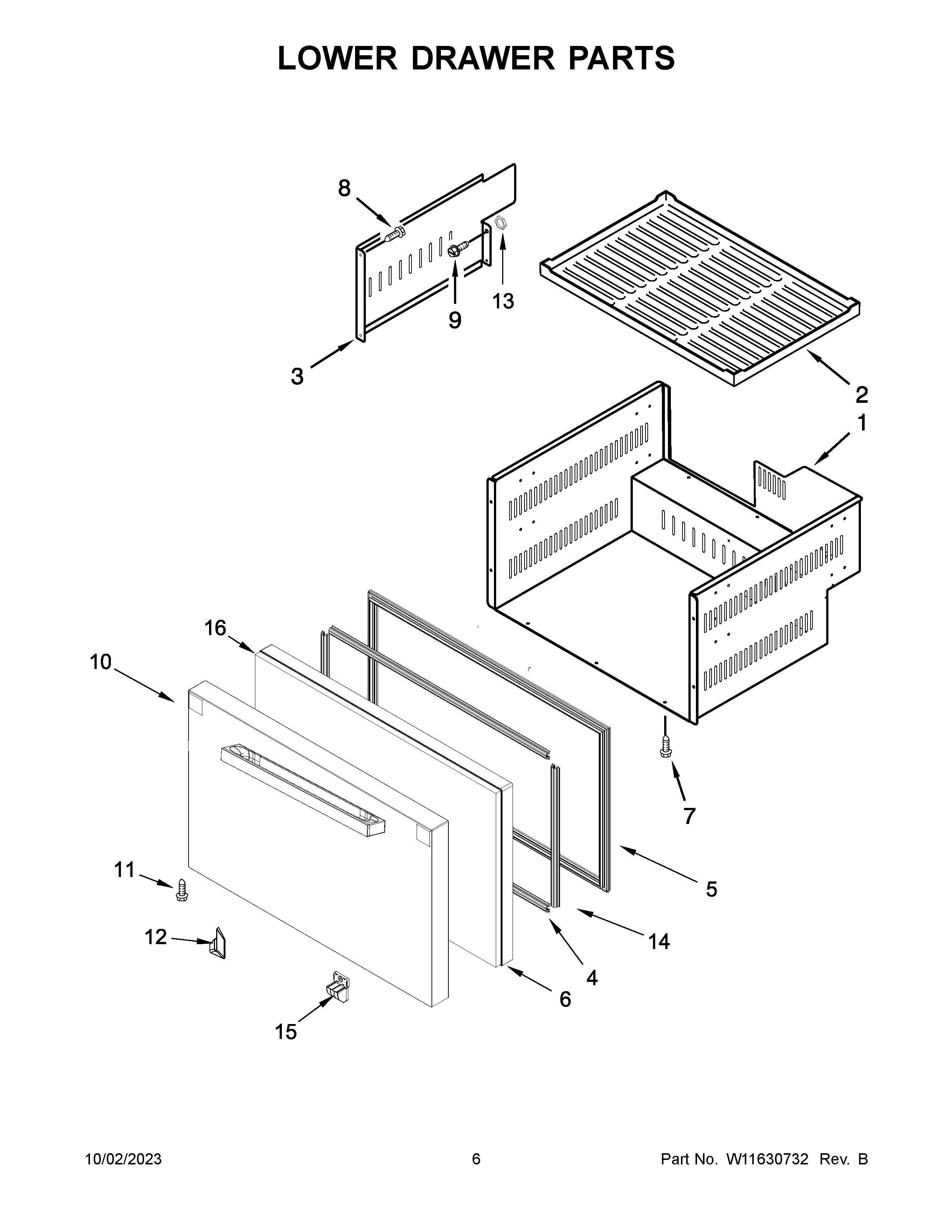

JUDFP242HM11 04 – LOWER DRAWER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	ASSEMBLY, COMPLETE DOOR
1	DRAWER BOX ASSEMBLY, LOWER
2	MAT, LOWER DRAWER
3	DRAWER PARTITION
4	GASKET, SASH (TOP/BOTTOM)
5	GASKET
6	W11568937 Whirlpool Refrigerator Drawer
7	SCREW
8	SCREW
9	W10204810 Whirlpool Screw
10	WRAP, STAINLESS STEEL
11	W10319185 Whirlpool Screw
12	W11422825 Whirlpool Refrigerator Nameplate
13	W10204920 Whirlpool Refrigerator Nut
14	DOOR GASKET, SHORT
15	W11678576 Whirlpool Bracket
16	INSULATION, DOOR
