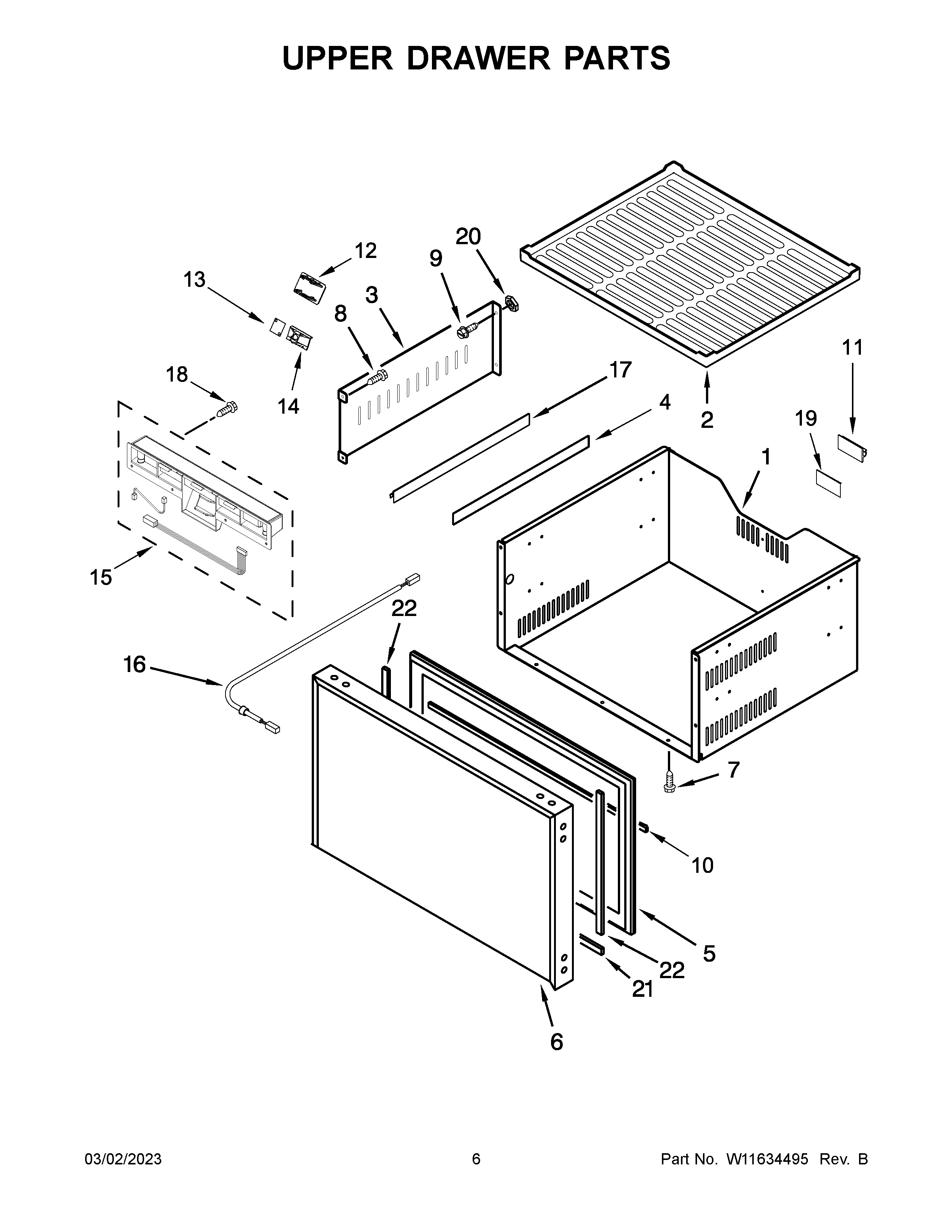

JUDFP242HX01 04 – UPPER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10788702 Whirlpool Refrigerator Hardware Pack
1DRAWER BOX ASSEMBLY, UPPER
2MAT, UPPER DRAWER
3DRAWER PARTITION
4W11442514 Whirlpool Tape
5WPW10622006 Whirlpool Refrigerator Gasket
6TOP FOAMED DOOR ASSEMBLY
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10COLD AIR SEAL
11W10772901 Whirlpool Refrigerator Clip
12W10204929 Whirlpool Cover
13W10204930 Whirlpool Refrigerator Light Lens
14W10204931 Whirlpool Socket Assembly
15CONTROL ASSEMBLY
16W10789534 Whirlpool Refrigerator Wire Harness
17W10622013 Whirlpool Refrigerator Clip
18W10204808 Whirlpool Refrigerator Screw
19COVER, RELAY
20W10204920 Whirlpool Refrigerator Nut
21W10204889 Whirlpool Refrigerator Gasket
22W10204897 Whirlpool Refrigerator Gasket
