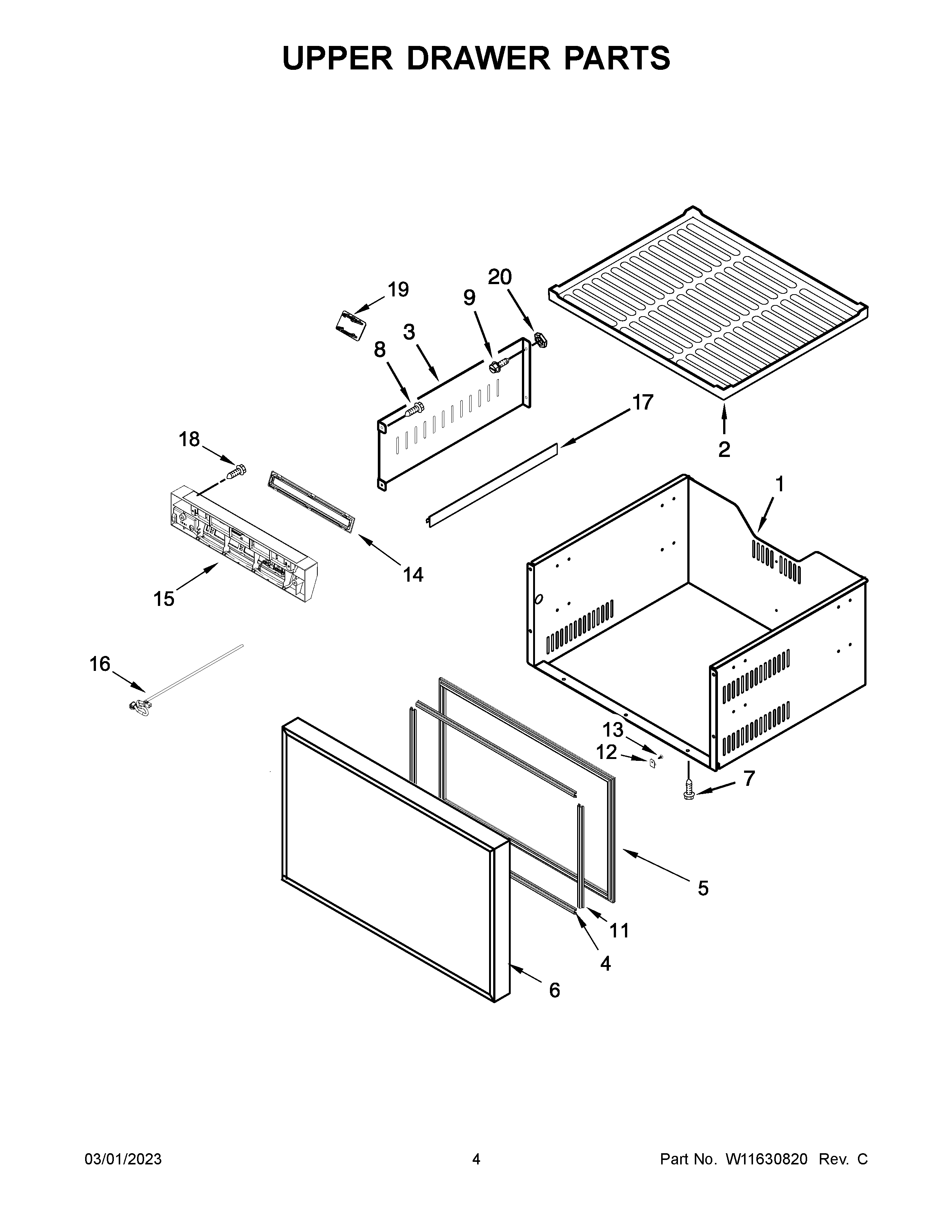

JUDFP242HX11 03 – UPPER DRAWER PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIASSEMBLY, COMPLETE DOOR
NIW11598387 Whirlpool Hardware Pack
1DRAWER BOX ASSEMBLY, UPPER
2MAT, UPPER DRAWER
3DRAWER PARTITION
4GASKET, SASH (TOP/BOTTOM)
5GASKET, DOOR
6W11568830 Whirlpool Refrigerator Front Drawer
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10INSULATION, DOOR
11DOOR GASKET, SHORT
12W11579579 Whirlpool Refrigerator Plate
13W10859467 Whirlpool Refrigerator Screw
14W11312450 Whirlpool Light Lens
15CONTROL PANEL ASSEMBLY
16W11592421 Whirlpool Wire Harness
17SUPPORT, LEAD WIRE
18W10204808 Whirlpool Refrigerator Screw
19LAMP COVER
20W10204920 Whirlpool Refrigerator Nut
