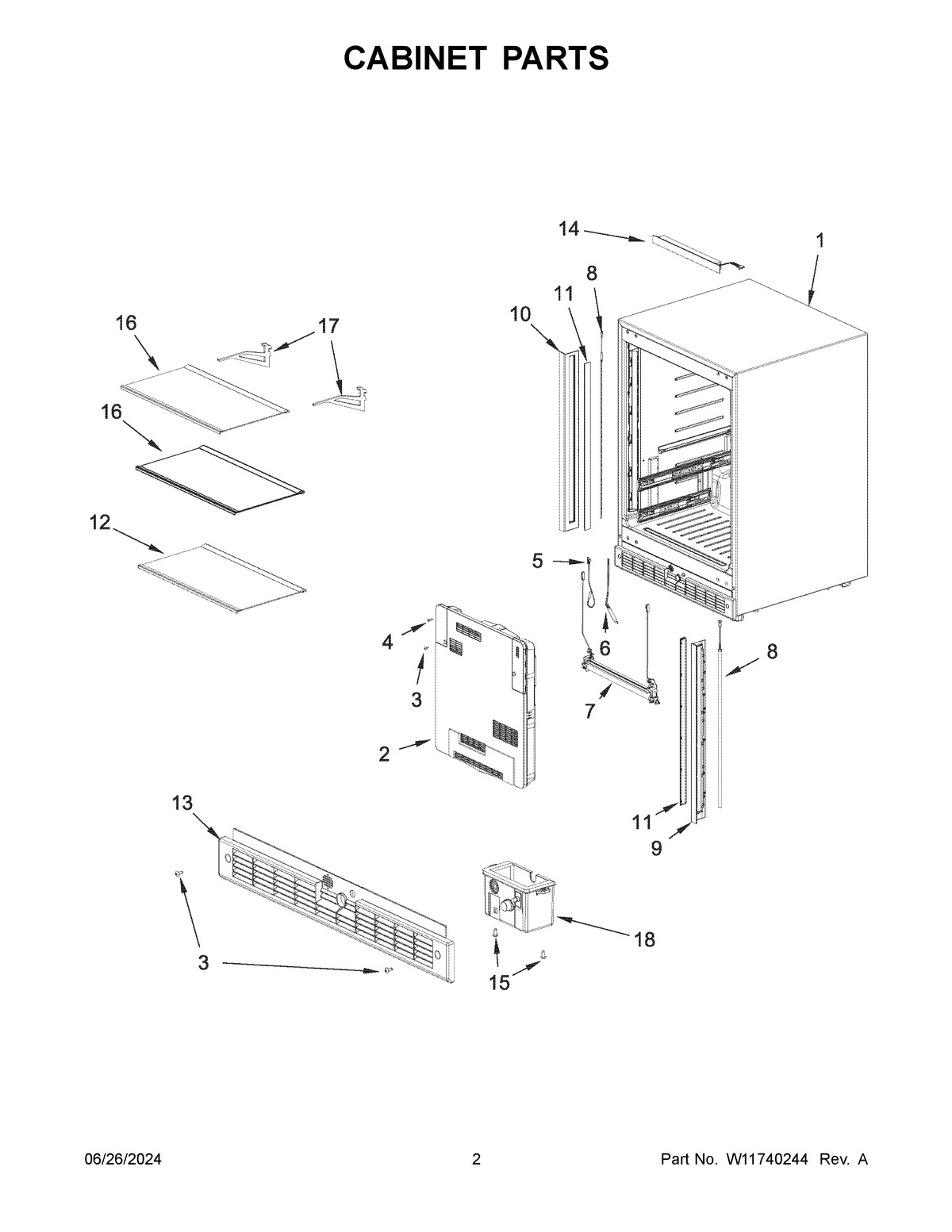

JUGFL242HL02 02 – CABINET PARTS

JUGFL242HL02 02 – CABINET PARTS

Written by

in

JUGFL242HL02 02 – CABINET PARTS

Products

PositionProduct
1CABINET (NOT A SERVICE PART)
2ASSEMBLY, EVAPORATOR COVER
3W11675284 Whirlpool Screw
4W11375760 Whirlpool Refrigerator Screw
5W11266076 Whirlpool Thermistor
6W11359415 Whirlpool Bi-metal Defrost
7W11359416 Whirlpool Heater
8W11359423 Whirlpool Module
9W11359424 Whirlpool Cover
10W11395483 Whirlpool Cover
11COVER, LED
12ASSEMBLY, GLASS TRAY
13W11360218 Whirlpool Grille
14W11424751 Whirlpool Refrigerator Control
15W11371097 Whirlpool Screw
16ASSEMBLY, GLASS TRAY
17HOLDER, SHELF
18W11359433 Whirlpool Cover
