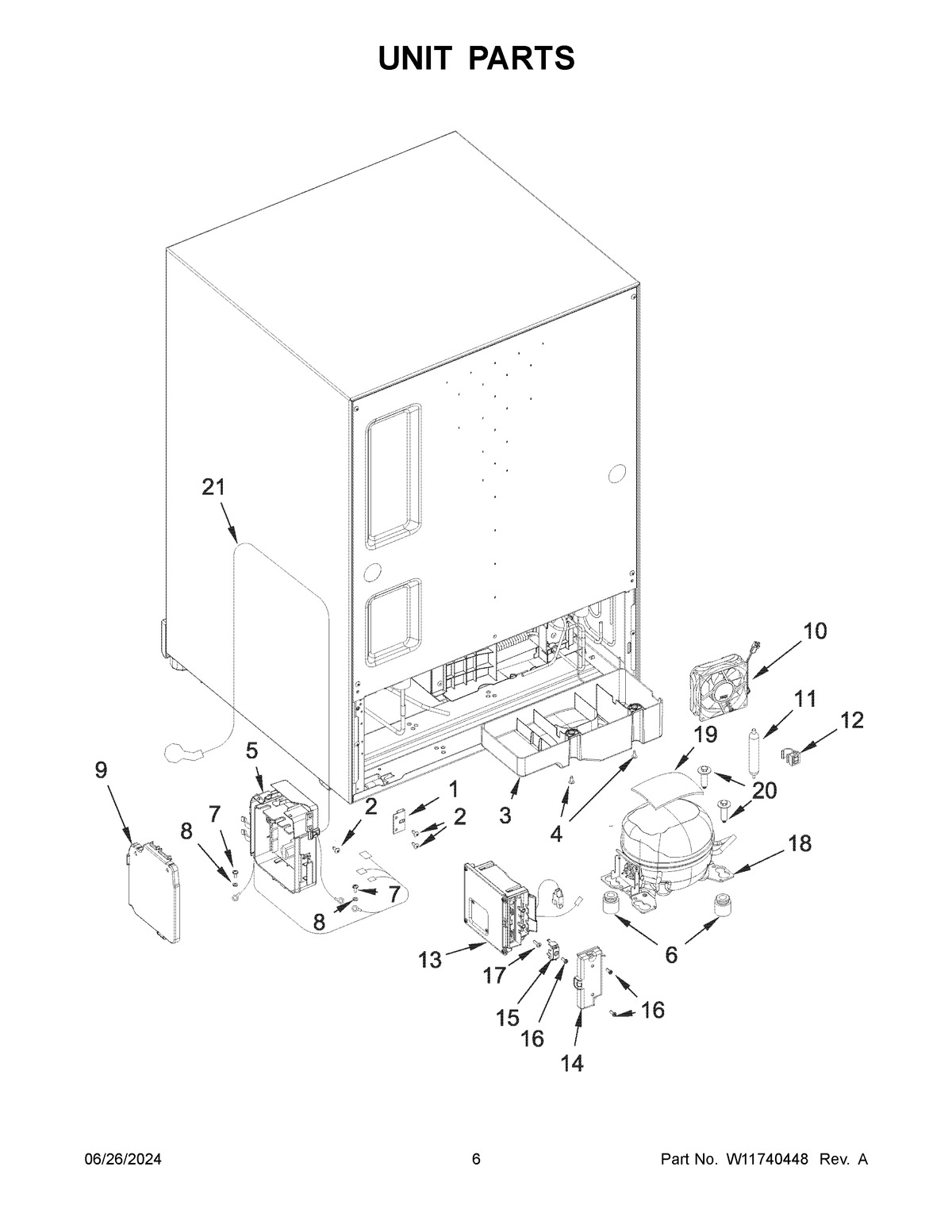

JUGFL242HM02 04 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 52 GRAMS (R600A)
1	CLAMP, CORD
2	W11371097 Whirlpool Screw
3	WATER PAN, EVAPORATOR
4	SCREW
5	CONTRL-BOX
6	MOUNT, COMPRESSOR
7	4344826 Whirlpool Refrigerator Screw
8	W11266077 Whirlpool Washer
9	W11313206 Whirlpool Refrigerator Cover
10	W11360536 Whirlpool Refrigerator Evaporator Motor
11	W11109499 Whirlpool Refrigerator Tube
12	CLAMP
13	BOX, IB
14	COVER, SIDE
15	STOPPER
16	SCREW
17	SCREW
18	COMPRESSOR
19	COMPRESSOR, RUBBER
20	BOLT
21	W11618463 Whirlpool Power Cord
