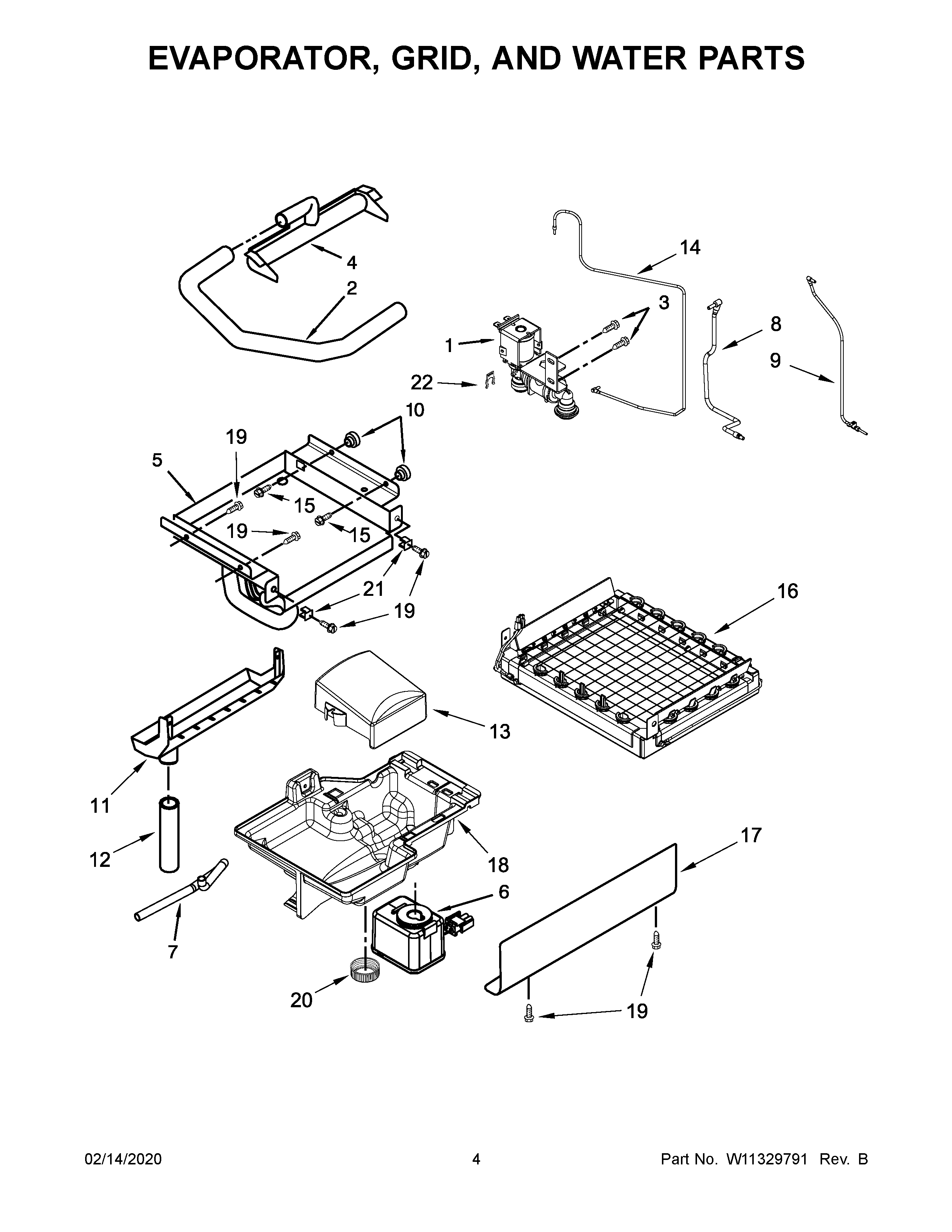

JUIFN15HX00 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1VALVE, WATER (INCLUDES REGULATOR)
2TUBE, PUMP
3Screw
4DISPENSER, WATER
5EVAPORATOR
6PUMP, RESERVOIR DRAIN
7TUBE, RESERVOIR DRAIN
8WATERLINE, RESERVOIR
9MAY W11280543
10SPACER
11RESERVOIR, WATER SLIDE
12TUBE, WATER SLIDE
13COVER, BRACKET
14WATERLINE, VALVE
15SCREW (STAINLESS)
16ASSEMBLY, GRID
17COVER, GRID
18RESERVOIR, WATER
19SCREW (STAINLESS)
20CAP, DRAIN
21GROMMET, SCREW
22LOCKING RING (1/4)
