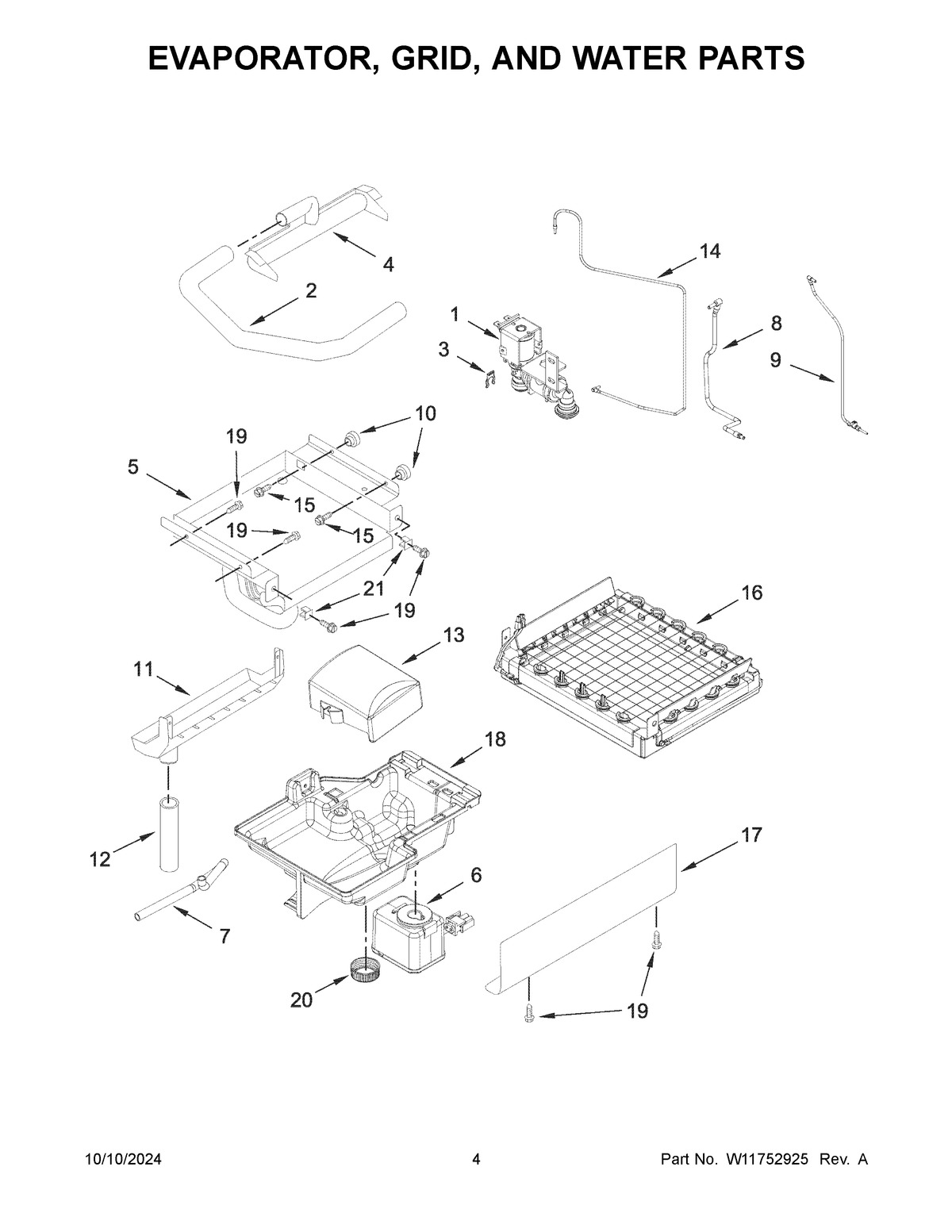

JUIFN15HX02 03 – EVAPORATOR, GRID, AND WATER PARTS

JUIFN15HX02 03 – EVAPORATOR, GRID, AND WATER PARTS

Written by

in

JUIFN15HX02 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1VALVE
3W10782423 Whirlpool Refrigerator Ring
4W10863947 Whirlpool Refrigerator Tube
5EVAPORATOR
6PUMP
7W11097809 Whirlpool Refrigerator Tube
8WATERLINE, RESERVOIR
9W11280543 Whirlpool Water Tube
10836667 Whirlpool Refrigerator Spacer
11WP2185625 Whirlpool Refrigerator Water Pan
12W11033204 Whirlpool Refrigerator Hose
13W10512292 Whirlpool Refrigerator Cover
14WATERLINE, VALVE
15WP3400886 Whirlpool Refrigerator Screw
16W10919199 Whirlpool Refrigerator Cutter Grid
17W10340986 Whirlpool Refrigerator Panel
18W11614100 Whirlpool Water Pan
19WP3400884 Whirlpool Refrigerator Screw
20W11023835 Whirlpool Refrigerator Drain Cap
21WP3400909 Whirlpool Refrigerator Nut
