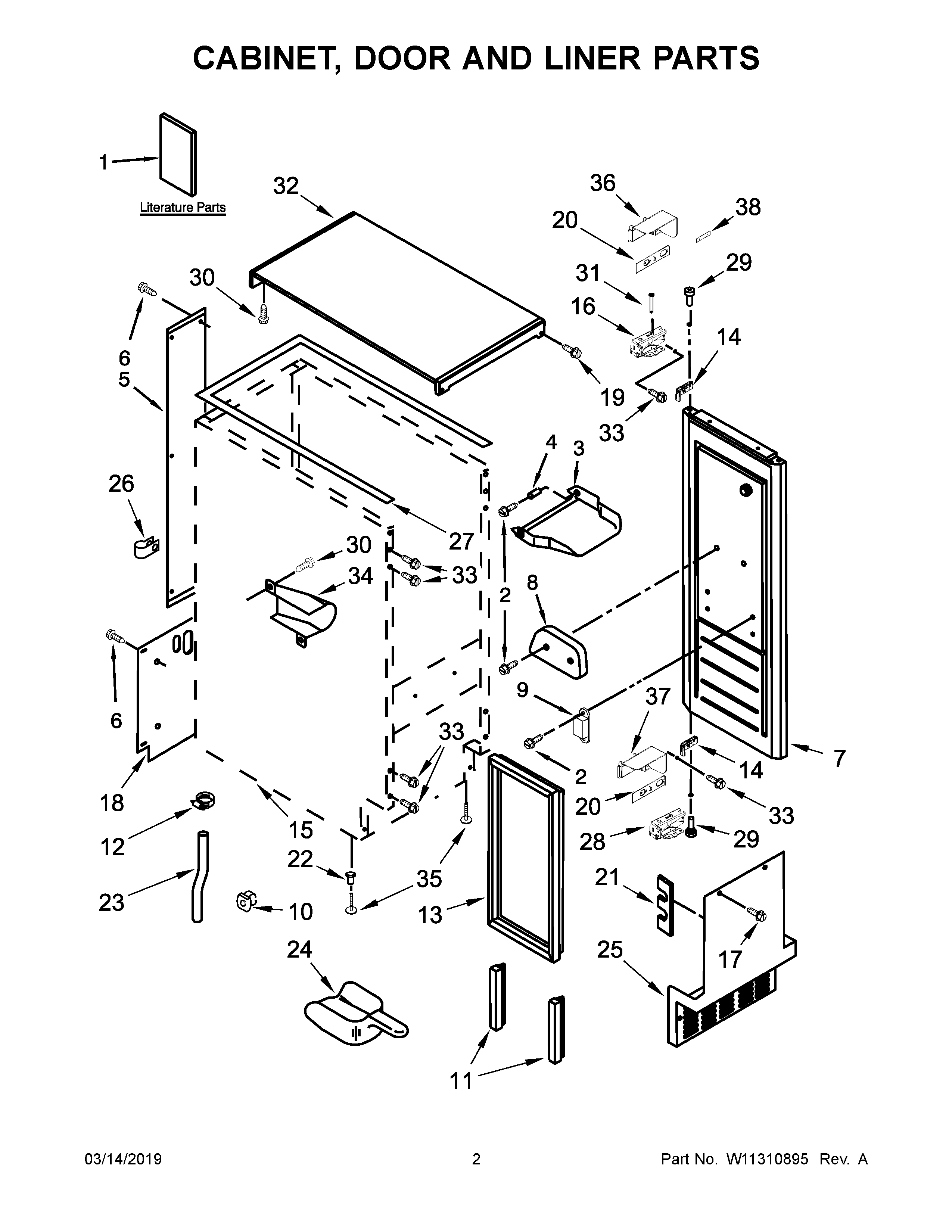

JUIFX15HX00 02 – CABINET, DOOR AND LINER PARTS

JUIFX15HX00 02 – CABINET, DOOR AND LINER PARTS

Written by

in

JUIFX15HX00 02 – CABINET, DOOR AND LINER PARTS

Products

PositionProduct
1BTECH SHEET
1AMAY W11175865
1MAY W11172210
2SCREW (STAINLESS)
3BIN, DOOR
4SPACER
5COVER, WIRING
6MAY 489442
7DOOR (BLACK)
8CAM, DOOR
9ASSEMBLY, MAGNETIC CATCH
10NUT, PUSH-IN
11MAY W11165597
12CLAMP, HOSE
13GASKET, DOOR
14AMAY W11197600
14MAY W11197599
15LINER (NOT A SERVICEABLE PART)
16MAY W11176752
17MAY W10531302
18MAY W11267679
19SCREW (BLACK)
20MAY W11257325
21MAY W11173207
22NUT
23TUBE, BIN TO PUMP
24SCOOP
25MAY W11197601
26Clip, Tube
27GASKET, TOP PANEL
28MAY W11176753
29PIN, HINGE
30SCREW
31MAY W11212764
32PANEL, TOP (BLACK)
33SCREW (BLACK)
34HOLDER, SCOOP
35LEG, LEVELING
36COVER, TOP HINGE (BLACK)
37COVER, BOTTOM HINGE (BLACK)
38MAY W11165643
