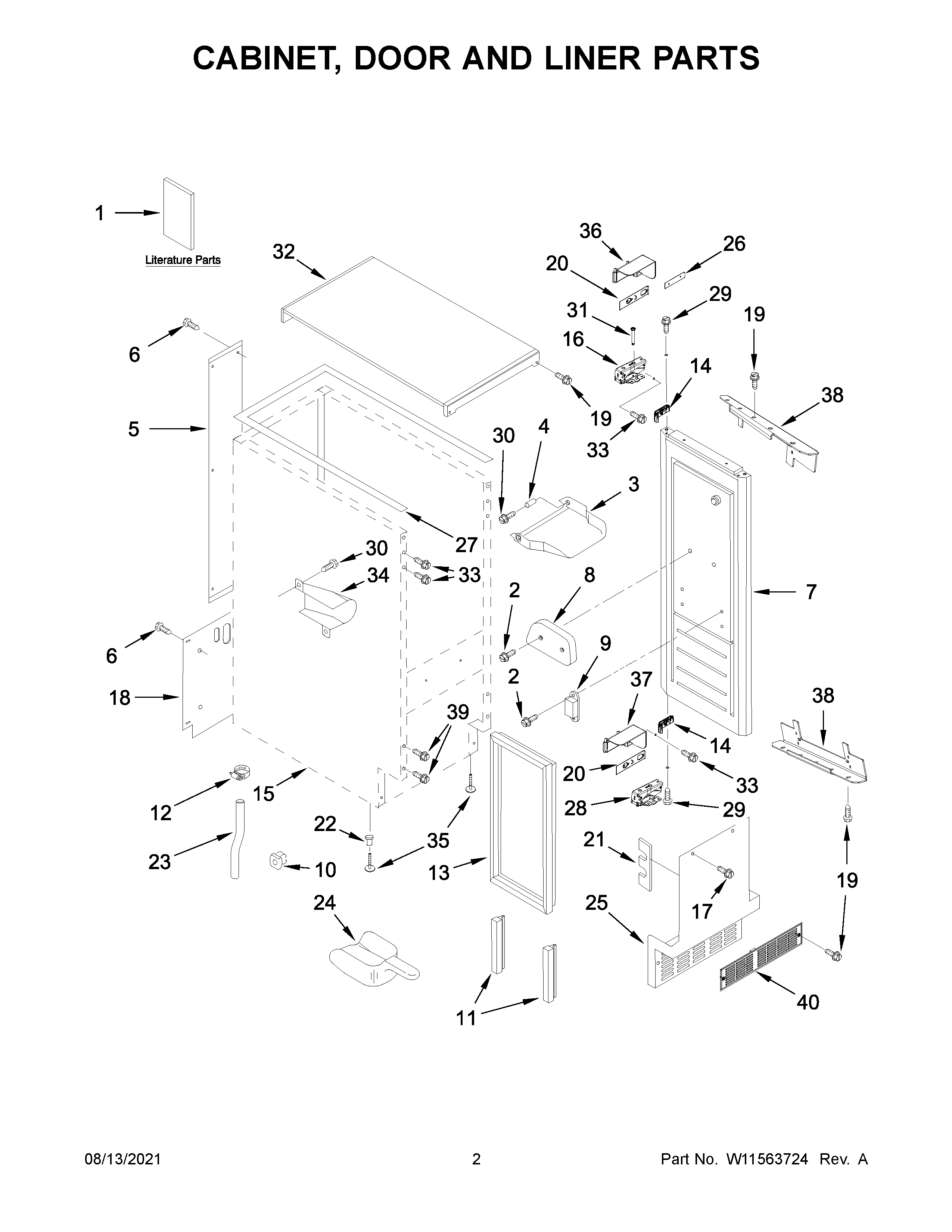

JUIFX15HX01 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1	USE AND CARE
1A	TECH SHEET
2	8534077 Whirlpool Screw
3	W10734102 Whirlpool Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	W11346787 Whirlpool Refrigerator Door Assembly
8	W11309649 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	GASKET, BOTTOM
12	W10670799 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14	W11309752 Whirlpool Endcap Floor
14A	W11309756 Whirlpool Floor Endcap
15	CABINET (NOT A SERVICEABLE PART)
16	W11176752 Whirlpool Refrigerator Hinge
17	W10531302 Whirlpool Refrigerator Screw
18	W11267679 Whirlpool Unit Cover
19	8534075 Whirlpool Screw
20	W11257325 Whirlpool Hinge Cap
21	W11546717 Whirlpool Refrigerator Foam Pad
22	3400240 Whirlpool Refrigerator Nut
23	W10825876 Whirlpool Refrigerator Drain Tube
24	W11420408 Whirlpool Refrigerator Ice Scoop
25	W11197601 Whirlpool Refrigerator Grille
26	COVER CAP, HINGE
27	W11624957 Whirlpool Refrigerator Top Gasket
28	W11176753 Whirlpool Refrigerator Hinge
29	NAMEPLATE
30	WP3400886 Whirlpool Refrigerator Screw
31	W11212764 Whirlpool Hinge Pin
32	W11246183 Whirlpool Door Assembly
33	W10495264 Whirlpool Refrigerator Screw
34	2185927 Whirlpool Refrigerator Holder
35	8193716 Whirlpool Leveling Leg
36	W11243472 Whirlpool Refrigerator Hinge
37	W11243473 Whirlpool Hinge Assembly
38	W11243907 Whirlpool Bracket
38A	W11223897 Whirlpool Bracket
39	W11573574 Whirlpool Screw
40	GRILL, AUXILLARY
