JUR248LBCX01 04 – UNIT PARTS
Written by
in

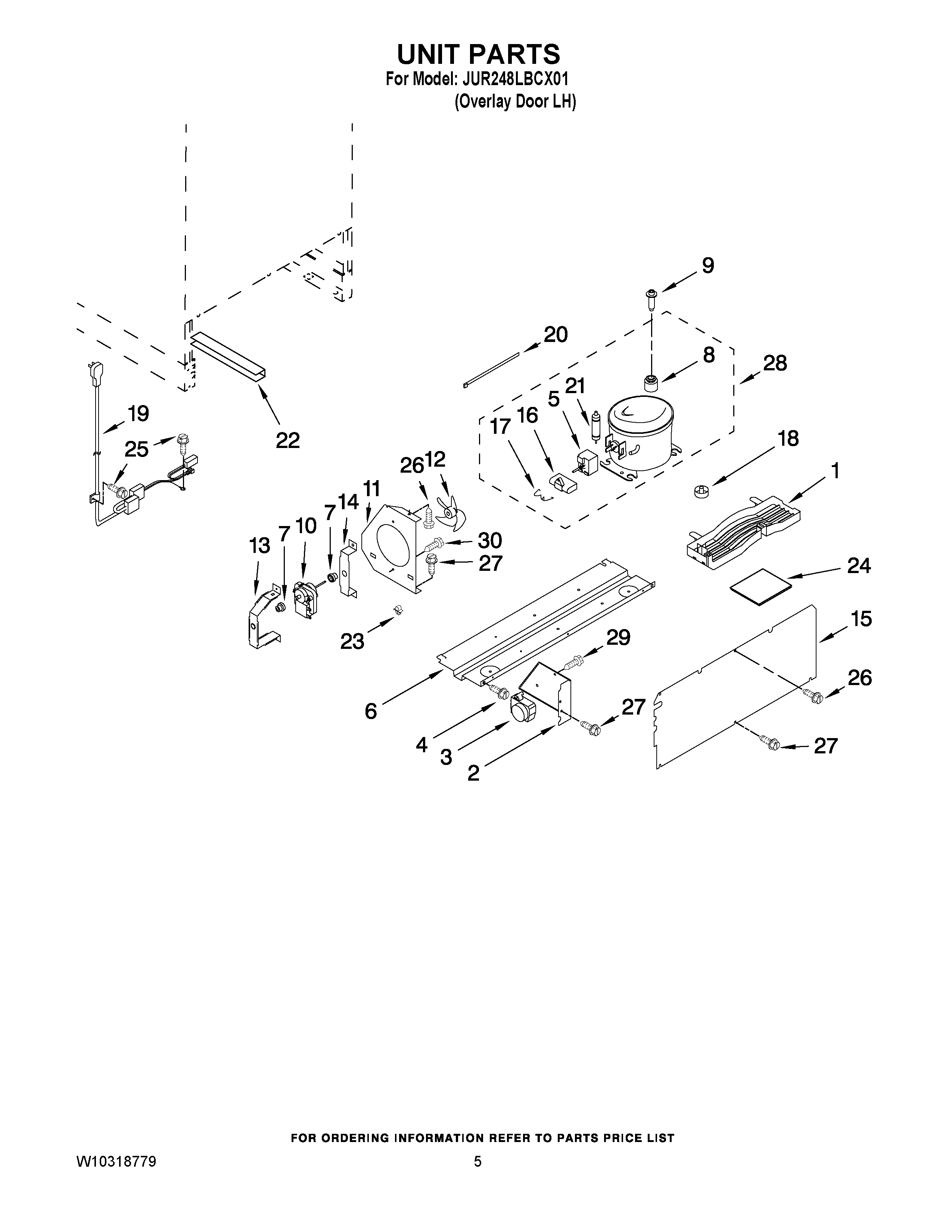

JUR248LBCX01 04 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
1
DRAIN PAN
2
BRACKET, DEFROST TIMER
3
MAY W10239390
4
MAY 4344797
5
MAY 4344776
6
MAY W10238066
7
MAY 4344778
8
MAY 4344779
9
MAY 4344780
10
FAN MOTOR, CONDENSER
11
MAY 4344782
12
MAY W10299081
13
MAY 4344784
14
MAY 4344785
15
MAY 4344786
16
MAY 4344837
17
MAY 4344836
18
MAY W10163276
19
MAY 4344830
20
MAY 4344829
21
MAY W10163273
22
MAY 4344907
23
MAY W10238022
24
Pad, Rubber
25
MAY 4344826
26
MAY 4344825
27
MAY 4344832
28
MAY 4344775
29
MAY 4344834
30
MAY 4344833
←
