JUR24FLECX00 05 – UNIT PARTS
Written by
in

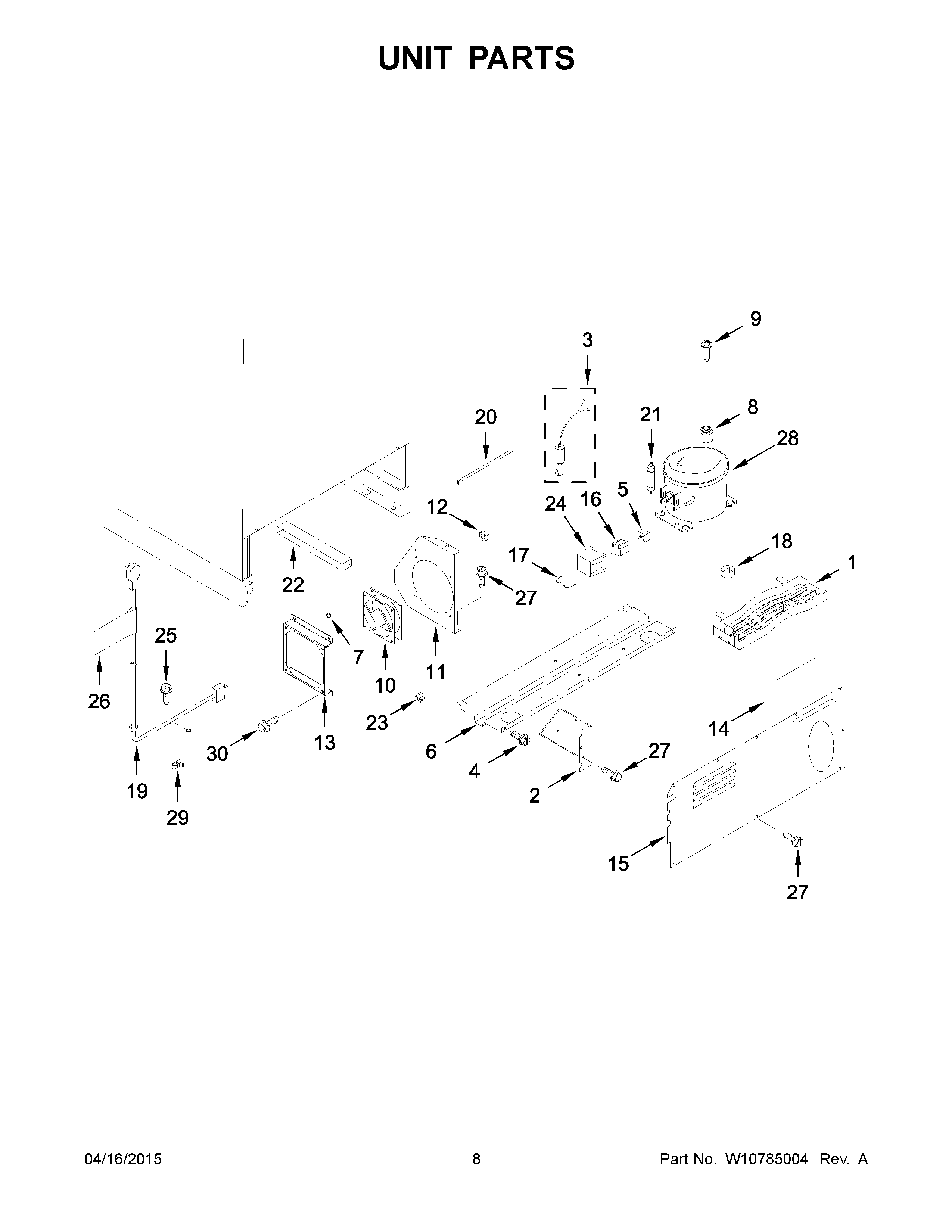

JUR24FLECX00 05 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
1
DRAIN PAN
2
MAY 4344773
3
MAY W10778969
4
MAY 4344797
5
MAY W10778965
6
MAY W10772877
7
MAY W10204688
8
MAY 4344779
9
MAY W10772873
10
MAY W10772882
11
MAY W10204674
12
NUT
13
MAY W10772889
14
SEAL, COLD AIR STOP
15
MAY W10796445
16
MAY W10778966
17
MAY W10778971
18
MAY W10163276
19
MAY W10204676
20
MAY 4344829
21
MAY W10163273
22
MAY 4344907
23
MAY W10238022
24
MAY W10778967
25
MAY 4344826
26
MAY 4344913
27
MAY 4344832
28
MAY 4344775
29
MAY W10281591
30
MAY W10772886
←
