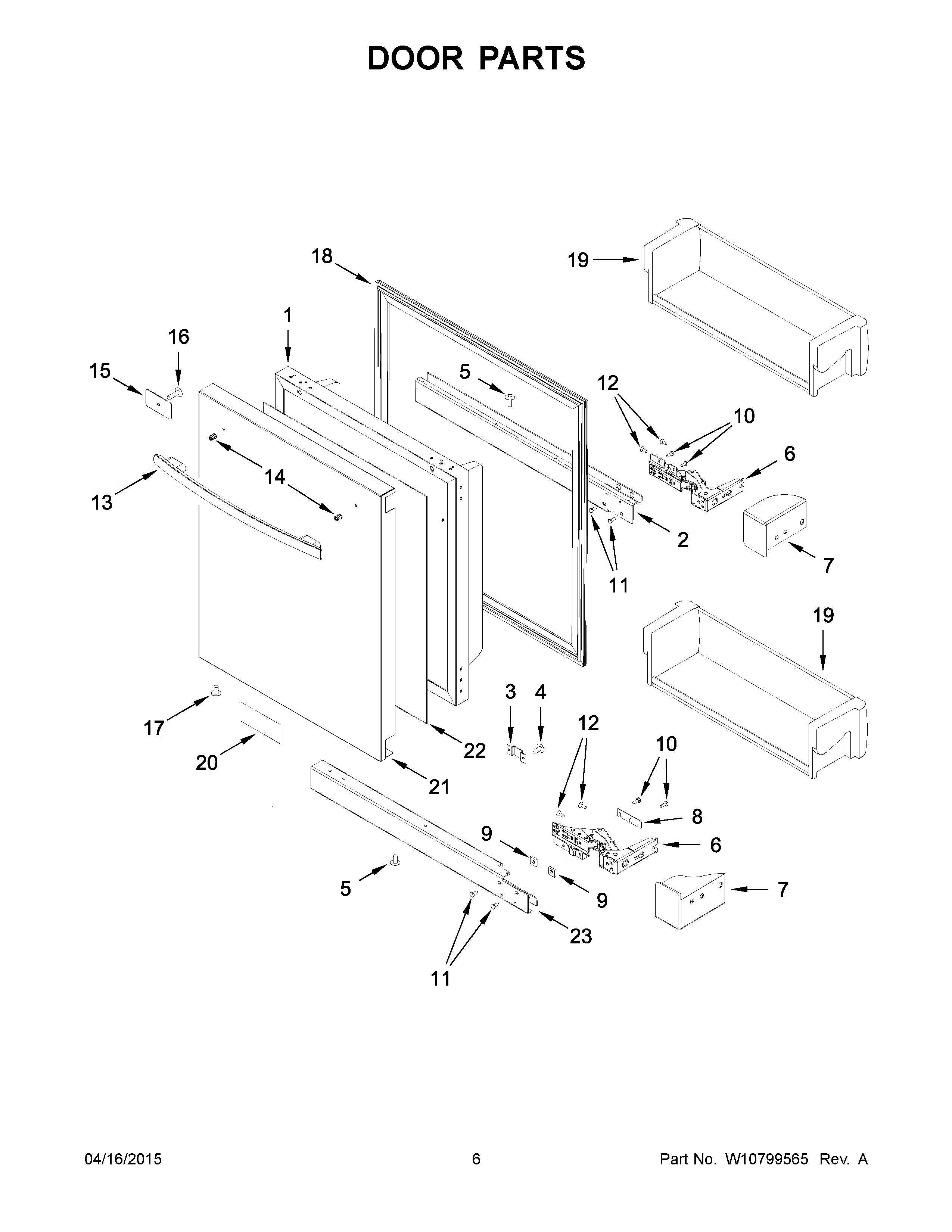

JUR24FLERS00 04 – DOOR PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10800048
1	FOAMED DOOR ASSEMBLY (RIGHT HINGE)
1A	MAY W10623024
2A	MAY W10623027
2	MAY W10622806
3	MAY W10622808
4	SCREW
5	MAY W10319187
6A	MAY W10622810
6	MAY W10622809
7A	MAY W10622812
7	MAY W10622811
8	MAY W10780350
9	MAY W10780347
10	MAY W10319189
11	MAY W10622817
12	MAY W10780349
13	MAY W10622019
14	MAY W10319166
15	MAY W10622815
16	MAY W10204866
17	SCREW
18	MAY W10624183
19	MAY W10175958
20	MAY W10292471
21A	MAY W10623023
21	MAY W10622813
22	MAY W10800040
23A	MAY W10623029
23	MAY W10622807
