JUW24FLECX00 02 – CABINET PARTS – Aparts

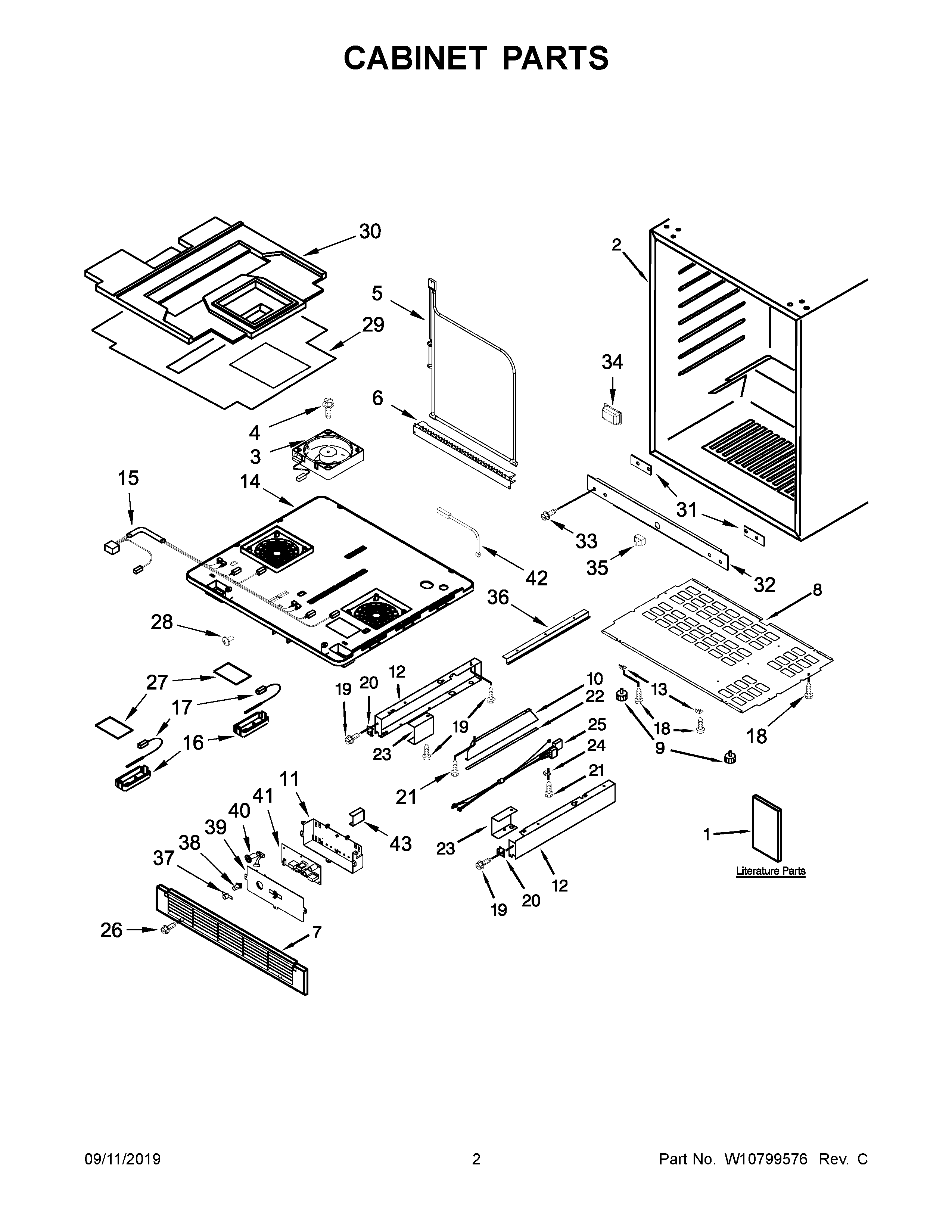

JUW24FLECX00 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	ENERGY GUIDE
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10204942
4	MAY W10205061
5	MAY W10292475
6	MAY 4344747
7	MAY W10780351
8	MAY W10772863
9	MAY 4344763
10	MAY W10778959
11	MAY W10772866
12A	MAY W10621525
12	MAY W10621526
13	MAY 4344771
14	COVER, FAN
15	MAY W10780364
16	MAY W10775535
17	MAY W10772916
18	MAY 4344826
19	MAY W10780355
20	MAY W10772865
21	MAY 4344825
22	MAY 4344823
23A	MAY 4344820
23	MAY 4344821
24	MAY W10281496
25	MAY W10772870
26	MAY W10319184
27	MAY W10204948
28	MAY W10774183
29	PLATE COVER
30	INSULATION, FAN COVER
31	MAY W10780357
32	MAY W10780356
33	MAY W10780349
34	MAY W10788689
35	MAY W10721454
36	MAY W10780353
37	MAY W10797391
38	MAY W10780359
39	MAY W10772869
40	MAY W10780358
41	MAIN PCB
42	MAY W10772858
43	MAY W10788699
