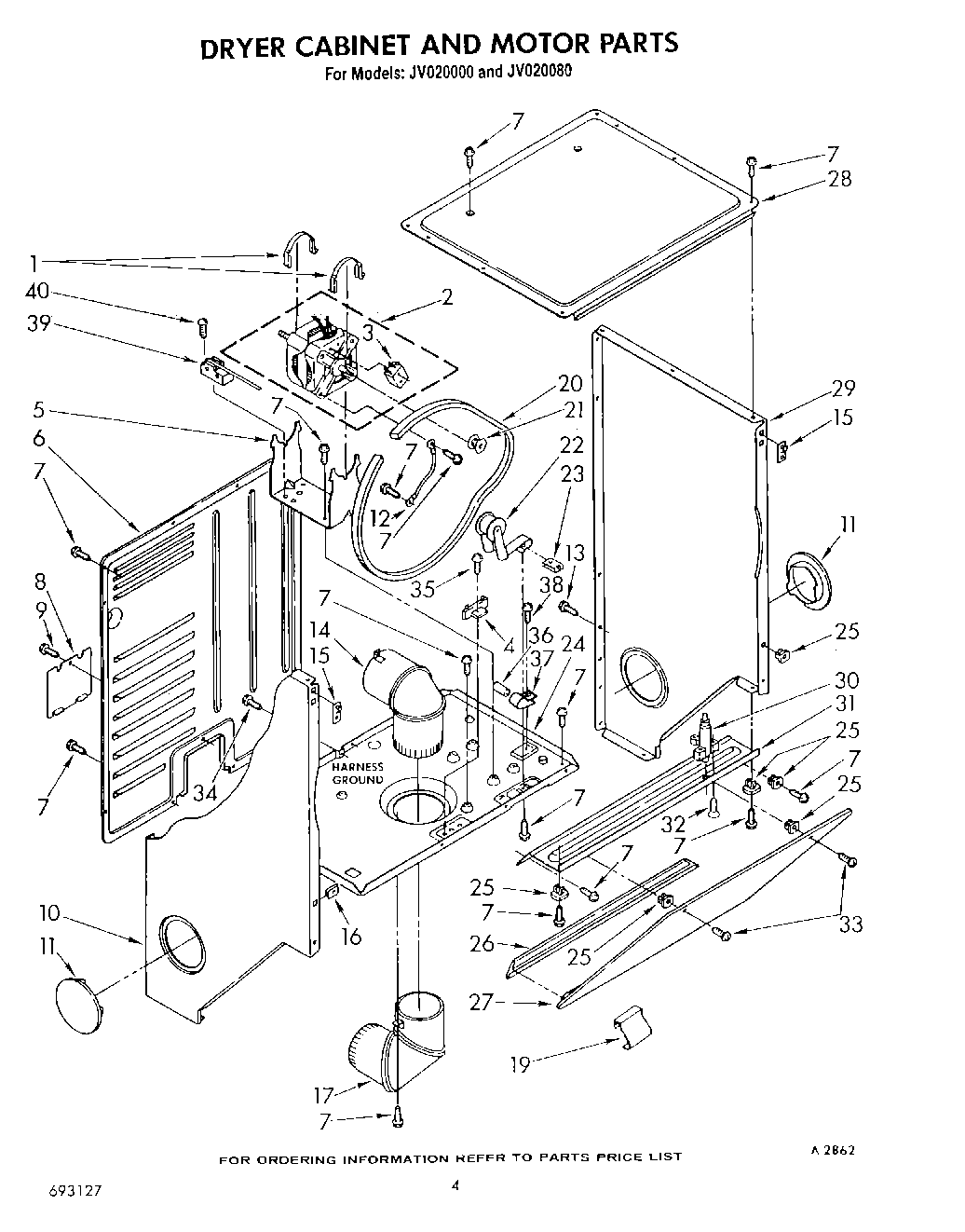

JV020080 04 – DRYER CABINET AND MOTOR

Products

Position	Product
1	WP660658 Whirlpool Clamp
3	279827 Whirlpool Dryer Drive Motor
4	279872 Whirlpool Resistor
5	696541 Whirlpool Base
6	Panel, Rear
8	Cover, Service
10	Panel, Side (L.H.) (Golden Harvest)
10	Panel, Side (L.H.) (Platinum)
10	WP3402293 Whirlpool Panel Assembly
10	Panel, Side (L.H.) (Almond)
10	Panel, Side (L.H.) (Toast)
11	Plug, Side Panel (2) (Platinum)
11	692790 Whirlpool Plug
11	Plug, Side Panel (2) (Golden Harvest)
11	Plug, Side Panel (2) (Almond)
11	Plug, Side Panel (2) (Toast)
12	Wire, Ground
13	WP308544 Whirlpool Screw
14	Elbow, Upper
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	WP98234 Whirlpool Nut
17	3399603 Whirlpool Elbow
19	WPL 686768
20	3394652 Whirlpool Drum Belt
21	W10837625 Whirlpool Dryer Motor Pulley
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	WP692771 Whirlpool Nut
24	Base, Dryer
25	WP692400 Whirlpool Nut
26	WP692926 Whirlpool Cover Appliance
27	Panel, Transition (Almond)
27	Panel, Transition (Toast)
27	Panel, Transition (Platinum)
27	Panel, Transition (Golden Harvest)
27	692933 Whirlpool Panel
28	WP692641 Whirlpool Dryer Top Assembly
29	Panel, Side (R.H.) (Almond)
29	Panel, S
29	Panel, Side (R.H.) (White)
29	WPL 692611
29	WPL 692610
30	WP693145 Whirlpool Lid Latch
31	WP692781 Whirlpool Closure Assembly
31	WPL 692782
31	WPL 692783
31	WPL 692784
31	WPL 692785
32	Screw & Washer
33	WP693304 Whirlpool Screw
35	WP3390631 Whirlpool Screw
36	CAPACITOR
37	357030 Whirlpool Clamp
38	SCREW
39	WPL 696581
40	303776 Whirlpool Dishwasher Screw
