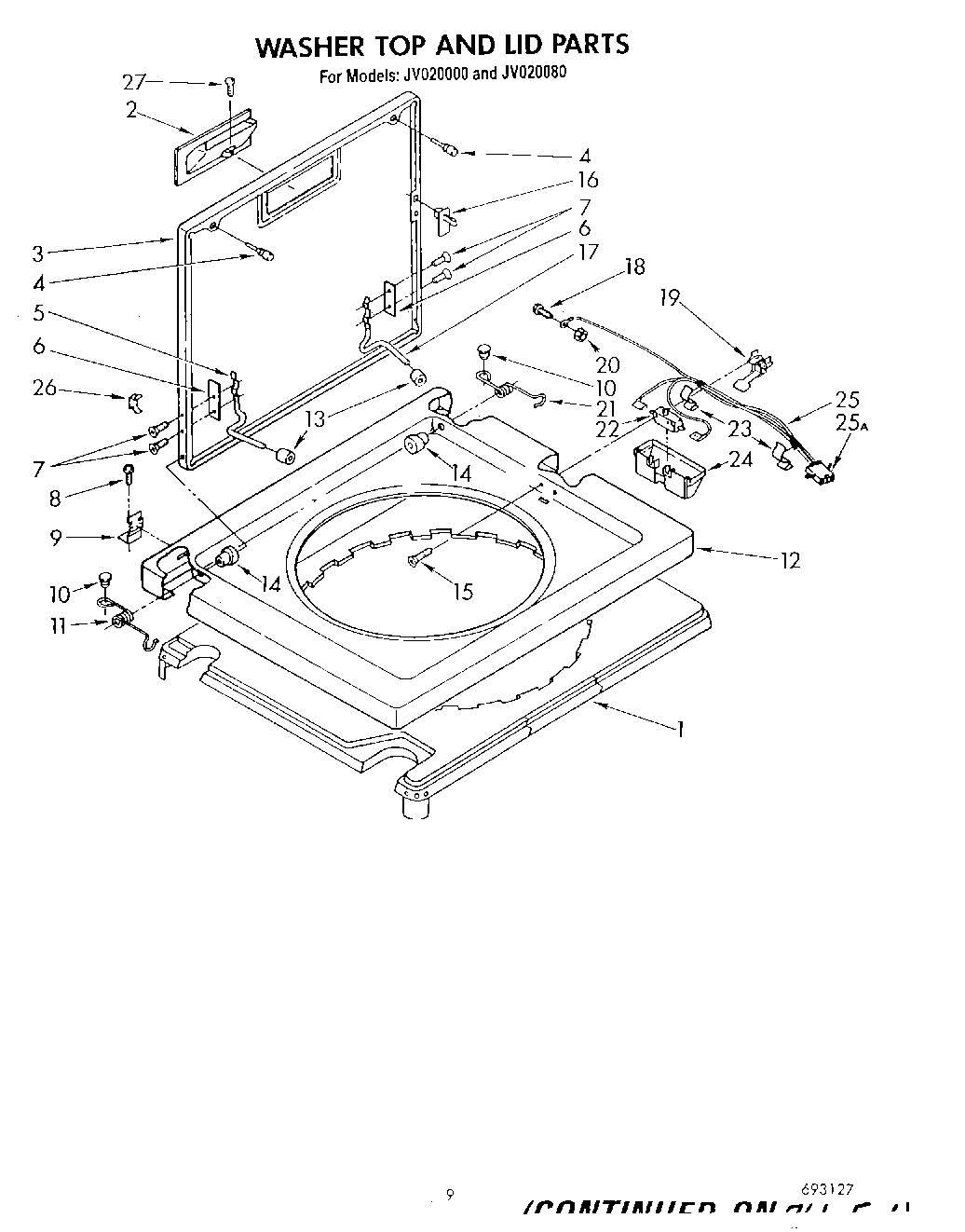

JV020080 07 – WASHER TOP AND LIDadmin2025-04-26T09:35:17+00:00JV020080 07 – WASHER TOP AND LID
Products
| Position | Product |
|---|
| 1 | Shield, Wiring |
| 2 | Handle, Lid (Platinum) |
| 2 | Handle, Lid (Toast) |
| 2 | Handle, Lid (Golden Harvest) |
| 2 | Handle, Lid (Almond) |
| 2 | Handle, Lid (White) |
| 3 | Lid (Golden Harvest) |
| 3 | Lid (Platinum) |
| 3 | Lid (Almond) |
| 3 | Lid (White) |
| 3 | Lid (Toast) |
| 4 | 80011 Whirlpool Washer Lid Bumper Kit of 2 |
| 5 | 384458 Whirlpool Hinge Assembly |
| 6 | WP21097 Whirlpool Pad |
| 7 | SCREW |
| 8 | SCREW |
| 9 | WP692985 Whirlpool Clip Assembly |
| 10 | Plug, Button |
| 11 | Spring, Lid (L.H.) (Includes Illus 10) |
| 12 | Top (Platinum) |
| 12 | Top (Toast) |
| 12 | Top (Golden Harvest) |
| 12 | Top (Almond) |
| 12 | WP384693 Whirlpool Top |
| 13 | Bumper, Lid Hinge |
| 14 | WP21258 Whirlpool Washer Lid Hinge Bearing |
| 15 | Screw & Washer, Lid Switch (2) |
| 16 | WP358684 Whirlpool Strike Assembly |
| 17 | 384459 Whirlpool Hinge |
| 18 | WP308544 Whirlpool Screw |
| 19 | Actuator, Lid Switch |
| 20 | W10080180 Whirlpool Nut |
| 21 | Spring, Lid (R.H.) (Includes Illus. 10) |
| 22 | W10820036 Whirlpool Door Switch Kit |
| 23 | WP90016 Whirlpool Clip |
| 24 | WP359231 Whirlpool Shield |
| 25 | Plug, Terminal (3-Way) |
| 25 | Harness, Lid Switch |
| 26 | WP297092 Whirlpool Clip |
| 27 | Screw |
