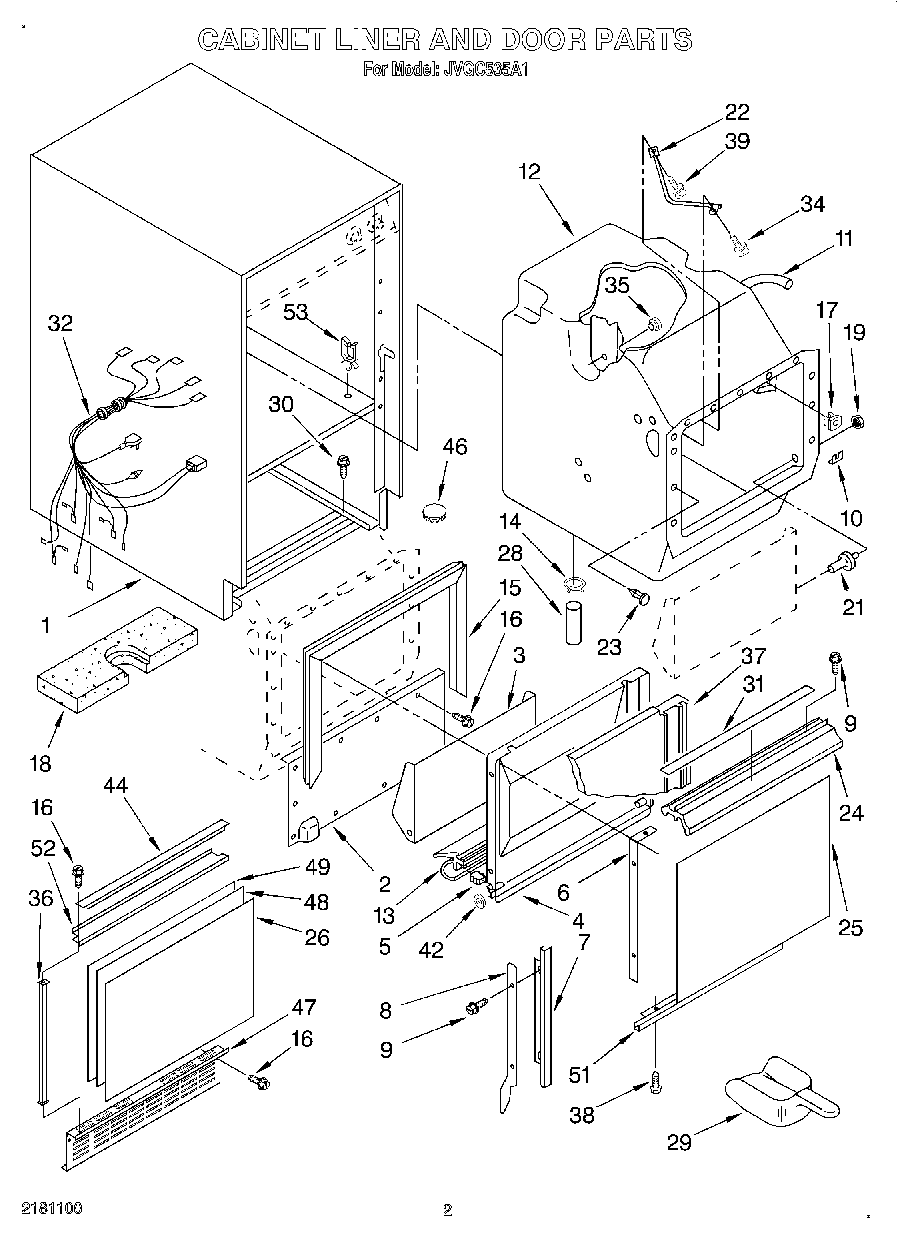

JVGC535A1 02 – CABINET LINER AND DOOR, LIT/OPTIONA

Products

Position	Product
	WPL LIT2181100
	WPL LIT2180911
	WPL LIT2180831
	WPL LIT2180634
1	WPL 2175698
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (R.S.)
7	Trim, Door (L.S.)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pull, Door
25	Panel, Door (Almond & Harvest Gold)
26	Grille, Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	WPL 756313
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	WPL 758754
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
46	WPL 758564
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	WP503695 Whirlpool Refrigerator Sealer
53	876370 Whirlpool Refrigerator Insulation
53	212643 Whirlpool Refrigerator Permagum Sealer
53	978027 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (1/2“)
53	VALVE, ACCESS (5/8“)
53	WP505587 Whirlpool Refrigerator Sealer
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	978030 Whirlpool Refrigerator Valve
53	WP978025 Whirlpool Refrigerator Valve
53	WPL 489482
