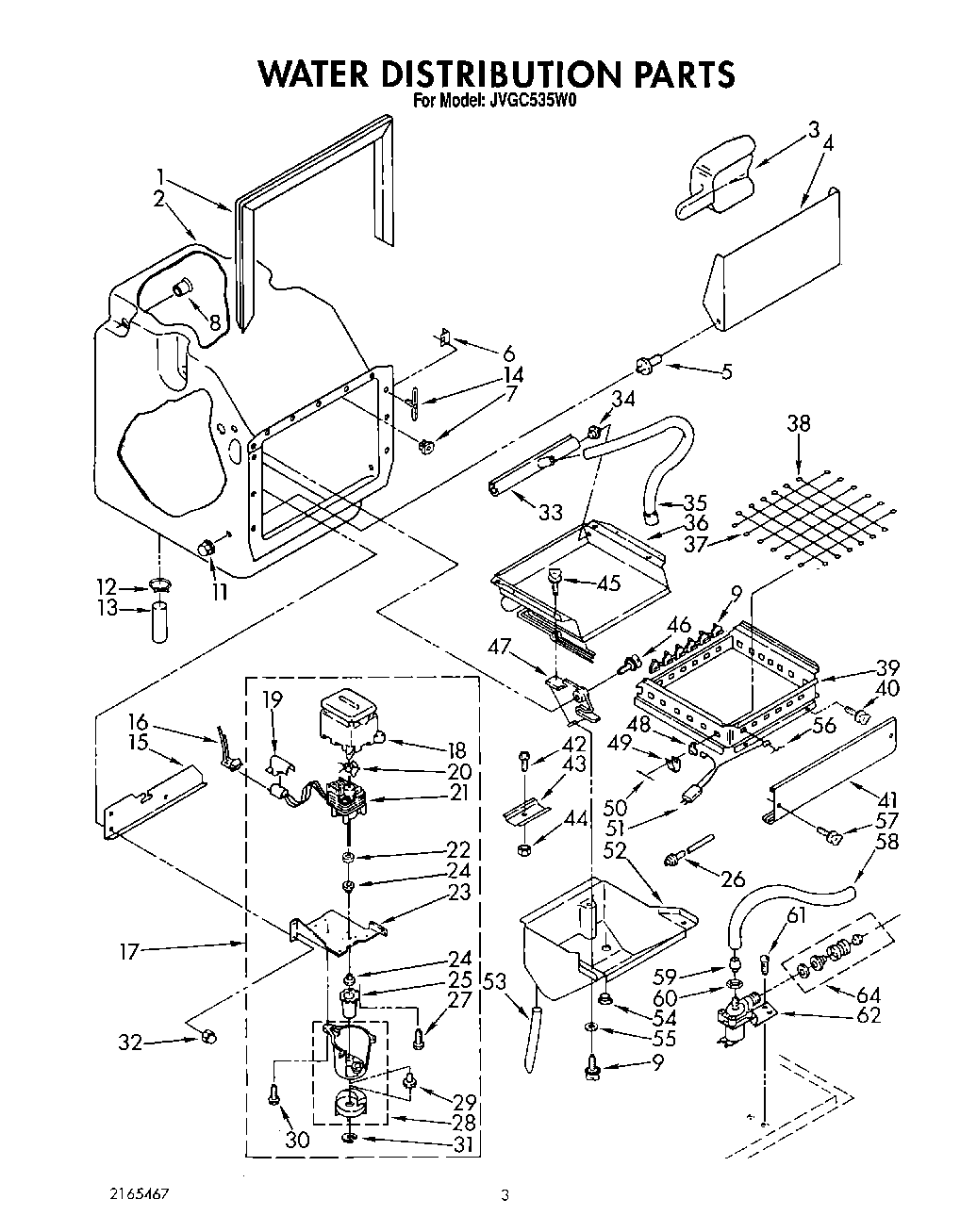

JVGC535W0 02 – WATER DISTRIBUTION

Products

Position	Product
1	Liner (Includes No.s 5, 6, 7, 11, 14)
2	Gasket, Liner
3	W11420408 Whirlpool Refrigerator Ice Scoop
4	Door, Inner
5	Stud, Inner Door Mtg. (2)
6	Washer, Clip
7	Grommet, Mtg (2)
8	Nut, Well (3)
9	Insulator (2 Strips of 9)
11	Nut, Hex 1/4 (2)
12	Clamp, Hose (2)
13	Hose, 5/8 x 4“ (Connector To Air Gap)
14	Clip, Linner (12)
15	Shelf, Water Pan
16	Harness, Wiring (Water Pump)
17	WP756782 Whirlpool Refrigerator Pump
18	WPL 583155
19	Sheild, Wiring
20	Blade, Fan
21	WPL 1127834
22	WPL 583424
23	Bracket, Pump
24	Grommet (2)
25	Sleeve
26	WPL 759213
27	681390 Whirlpool Refrigerator Screw
28	Pump, Assembly
29	Impeller, Pump (Includes No. 31)
30	Screw, 8-18 x 3/4
31	Ring, Retaining
32	Nut (3)
33	Dispenser, Water
34	Plug,
35	Hose, Dispenser
36	Evaporator
37	Wire, Cutter (Includes 5 Wires)
38	Wire, Cutter (Includes 6 Wires)
39	WPL 759200
40	Thumbscrew 10-32 x 5/8
41	Panel, Grid
42	Screw, 10-32 x 1/2
43	Clamp
44	Nut, 10-32
45	Screw, 10 x 1/2
46	Screw, Thumb 10-32 x 1“
47	Bracket, Grid (2)
48	Insulator (2 Strips of 10)
49	Clip, Grid Wires (11)
50	Pin, Grid Wires (4)
51	Harness, Wiring (Cutter Grid)
52	Pan, Water
53	WPL 759109
54	WPL 759043
55	Washer, Latch
56	Pin, Grid Wire (17)
57	Screw, Thumb 10-32 x 3/4 (2)
58	W10823511 Whirlpool Refrigerator Water Tube
59	4387491 Whirlpool Refrigerator Insert
60	WP627018 Whirlpool Refrigerator Nut
61	SCREW
62	Valve, Water
64	WPL 533238
