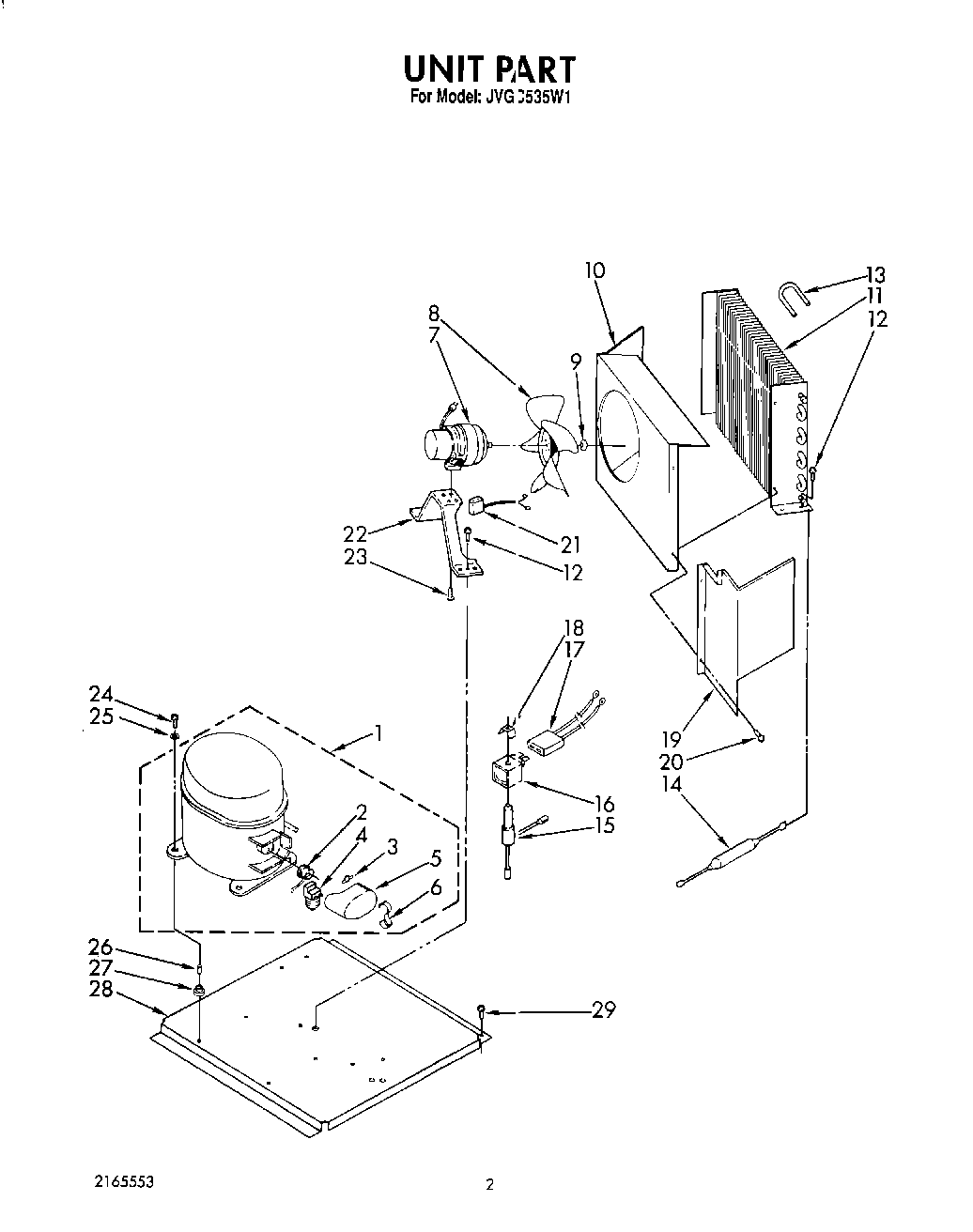

JVGC535W1 02 – UNIT, LITERATURE

JVGC535W1 02 – UNIT, LITERATURE

Written by

in

JVGC535W1 02 – UNIT, LITERATURE

Products

PositionProduct
WPL LIT758846
WPL LIT758860
WPL LIT759231
WPL LIT2165466
WPL LIT2165553
1Compressor, Service Kit
2Overload
2Overload
3Spring, Overload
4Relay, Start
4Relay, Start
5Cover
5Cover, Terminal
6Cover, Spring
6Strap
7Motor, Fan (Includes No. 23)
8978655 Whirlpool Refrigerator Fan Blade
9Nut, Hex 1/4-20
10Shroud, Condenser
11Condenser
12Screw, 1/4-20 x 1/2
13Accumulator
14W10843121 Whirlpool Refrigerator Tube
15Valve, Solenoid Coil
16Coil, Solenoid
17Harness, Wiring (Solenoid Coil)
18Retainer, Solenoid Coil
19Deflector, Air
20WP90767 Whirlpool Screw
21Harness, Wiring (Fan Motor)
22Bracket, Fan Motor
23Screw, 8-36 x 1/2 (4)
24Screw, 5/16-18 x 1-1/4 (4)
25Washer, Flat (4)
26Sleeve (4)
27Grommet (4)
28Base, Unit
29Screw, No.10-32 x 3/8
