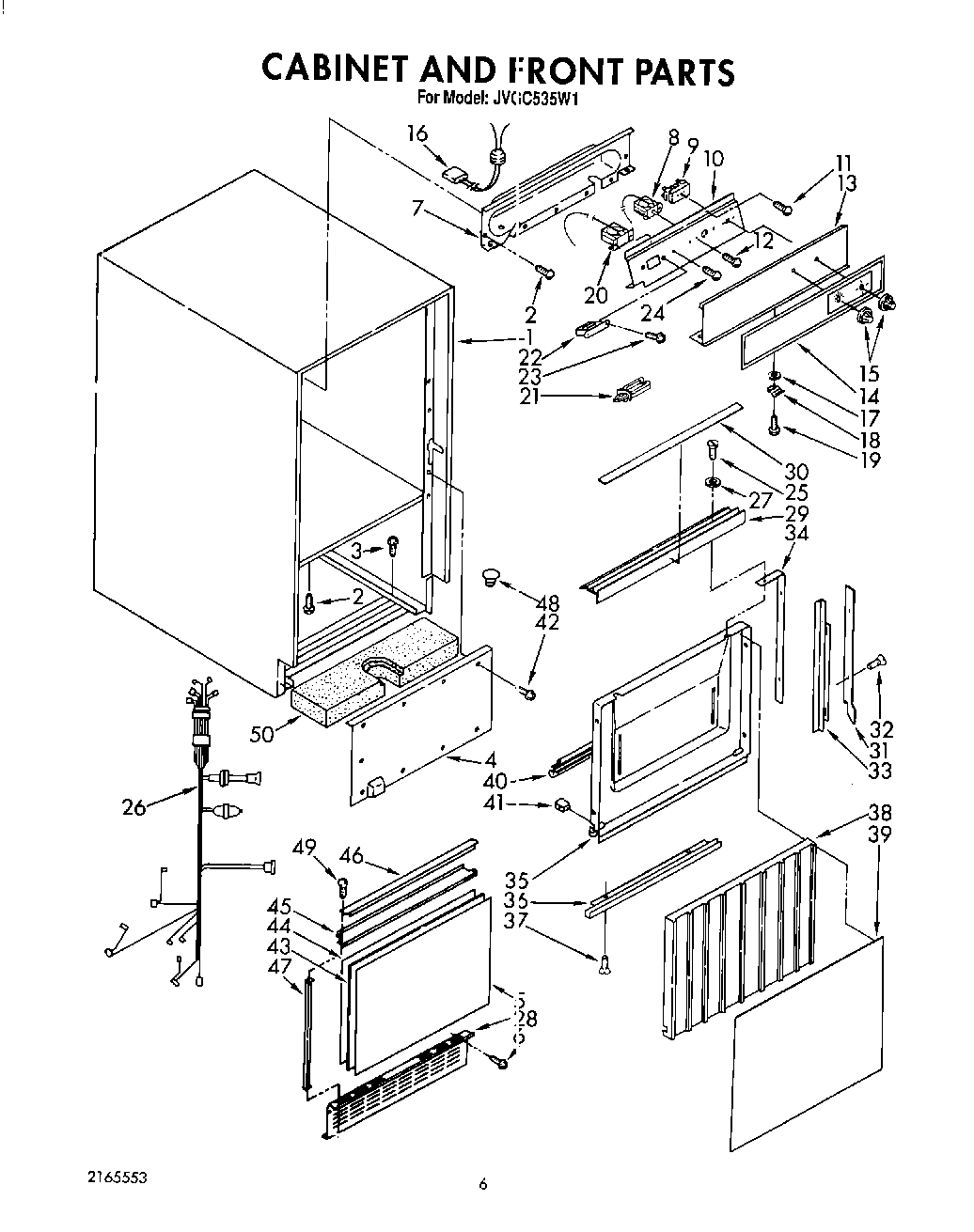

JVGC535W1 04 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Grille, Cabinet Front
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	WPL 2157321
9	Switch, Rotary
10	Panel, Control
11	WP250830 Whirlpool Refrigerator Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	WPL 593178
14	Insert, Escutcheon
15	WPL 756880
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch, Door
19	Screw, 8-32 x 1/2
20	WPL 2165478
21	Retainer, Wire (2)
22	Transformer
24	Screw, 8-32 x 3/8 (2)
25	Screw, 10 x 1/2
26	WPL 758838
27	Washer (2)
28	Grille, Panel
29	Pull, Door
30	WPL 756313
31	Rail, Door (Right Side)
31	Rail, Door (Left Side)
31	Overload
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (R.S.)
33	Trim, Door (L.S.)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door (Lower)
37	Screw, No.8-32 x 1/2
38	WPL 758754
39	Panel, Door (Almond & Harvest Gold)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
43	Filler, Grille Panel
44	Panel, Inner Grille
45	Support Panel
46	Trim, Top & Bottom
47	Trim, Sides (2)
48	WPL 758564
49	WP488729 Whirlpool Refrigerator Door Screw
50	Insul/Bottom Foam
