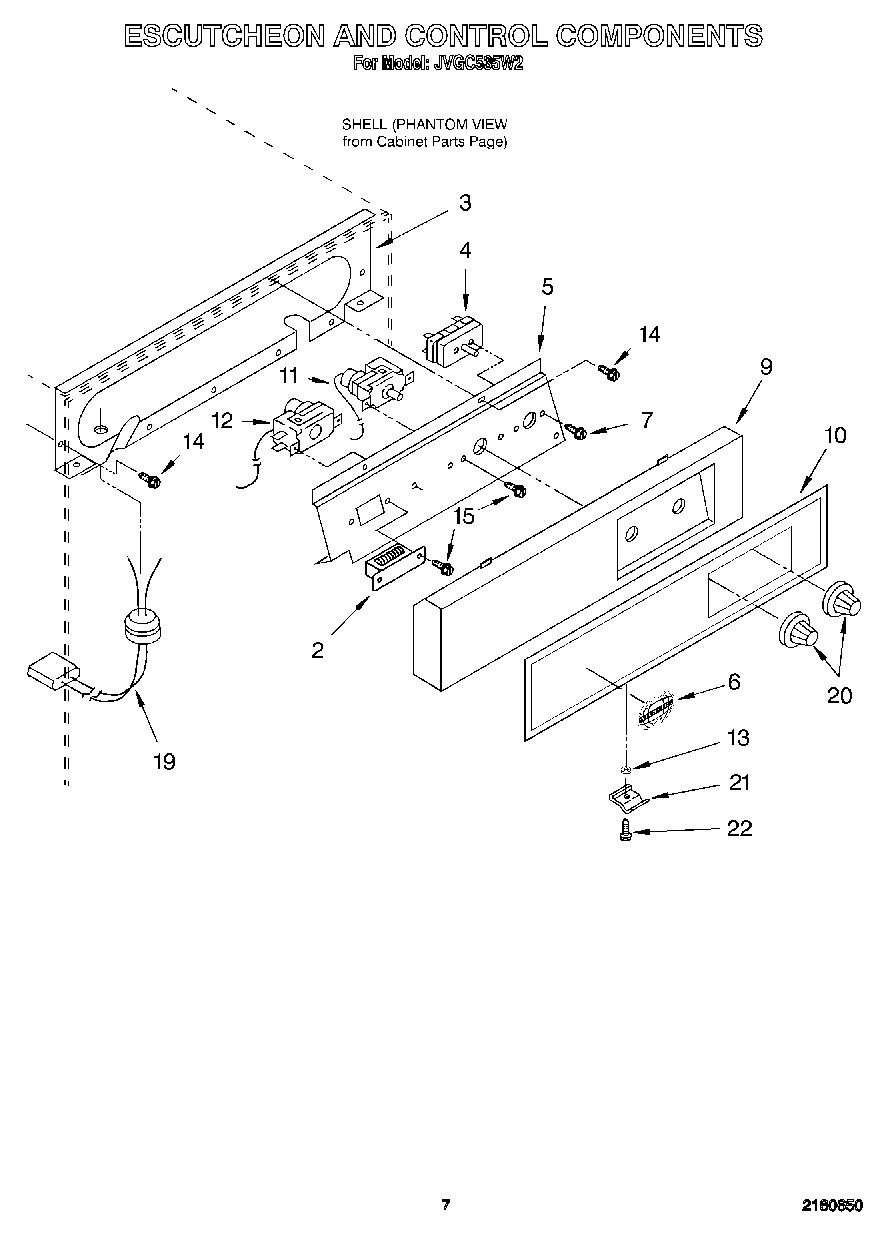

JVGC535W2 05 – ESCUTCHEON AND CONTROL COMPONENTSadmin2025-04-26T09:36:54+00:00JVGC535W2 05 – ESCUTCHEON AND CONTROL COMPONENTS
Products
| Position | Product |
|---|
| 2 | WPL 2165483 |
| 3 | Escutcheon, Panel |
| 4 | Switch, Service |
| 5 | WPL 2172846 |
| 6 | WPL 2165462 |
| 7 | WP486579 Whirlpool Air Conditioner Screw |
| 9 | WPL 593178 |
| 10 | Insert, Escutcheon |
| 11 | Thermostat, Ice-Control |
| 12 | Thermostat, Ice-Bin |
| 13 | Washer, Latch |
| 14 | WP488729 Whirlpool Refrigerator Door Screw |
| 15 | Screw, 8-32 x 3/8 (2) |
| 19 | Harness, Wiring (Cutter Grid) |
| 20 | WPL 756880 |
| 21 | Latch, Door |
| 22 | Screw, 8-32 x 1/2 |
