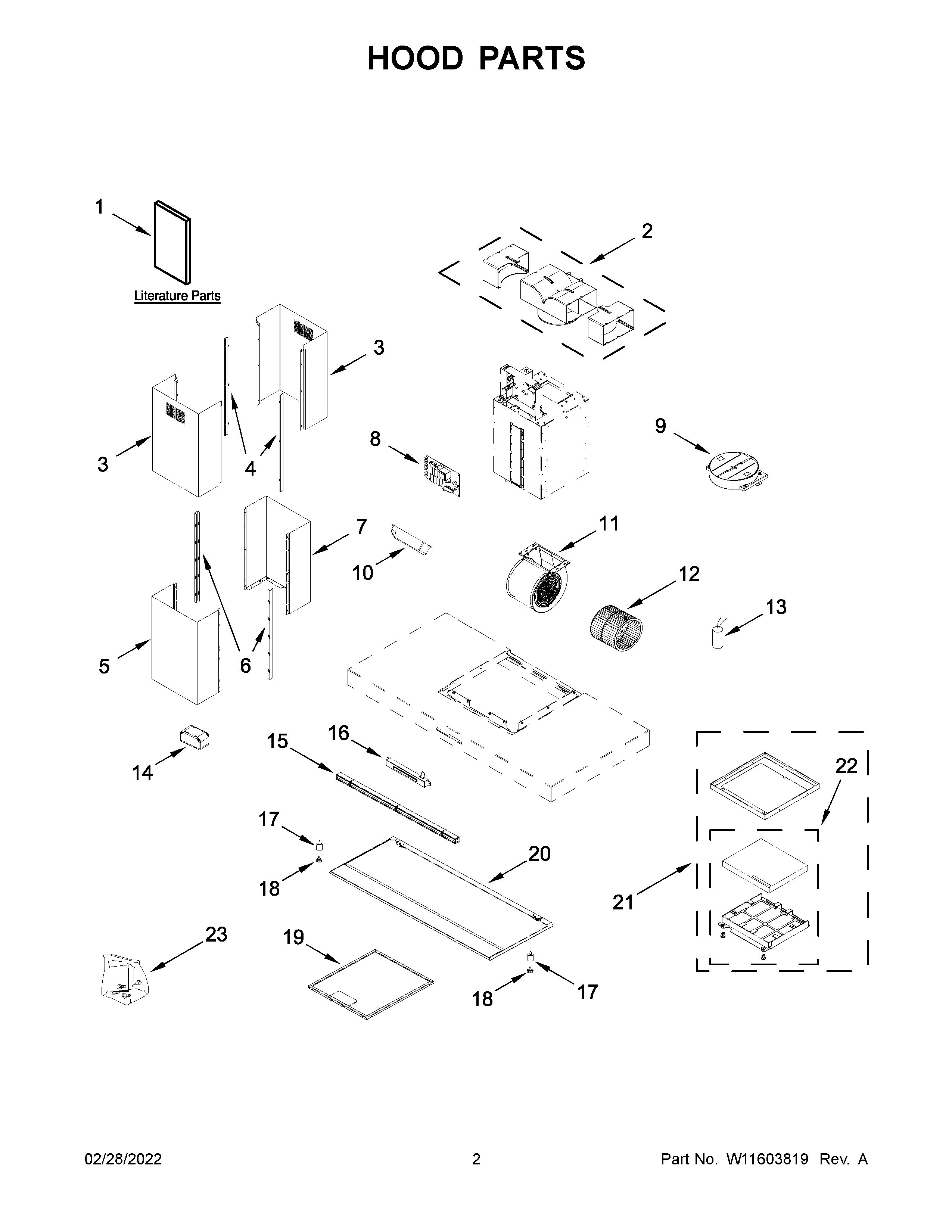

JVI0636LS0 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	DUCT, AIR DIVERTER
3	CHIMNEY, UPPER
4	BRACKET, UPPER CHIMNEY
5	CHIMNEY, LOWER FRONT
6	W11601151 Whirlpool Hanger Bracket
7	CHIMNEY, LOWER BACK
8	VARIATOR, ELECTRONIC
9	DAMPER
10	W11282989 Whirlpool Transformer
11	MOTOR, FAN
12	WHEEL, FAN
13	8186677 Whirlpool Capacitor
14	FILTER, NOISE
15	LIGHT STRIP, LED
16	W11601400 Whirlpool Electronic Control Board + Core
17	MAGNET, LATCH
18	PIN, LATCH
19	W10169961A Whirlpool Grease Filter
20	PANEL, PERIMETRIC (36" MODEL)
21	KIT, RECIRCULATION
22	KIT, CHARCOAL FILTER
23	HARDWARE, INSTALLATION
