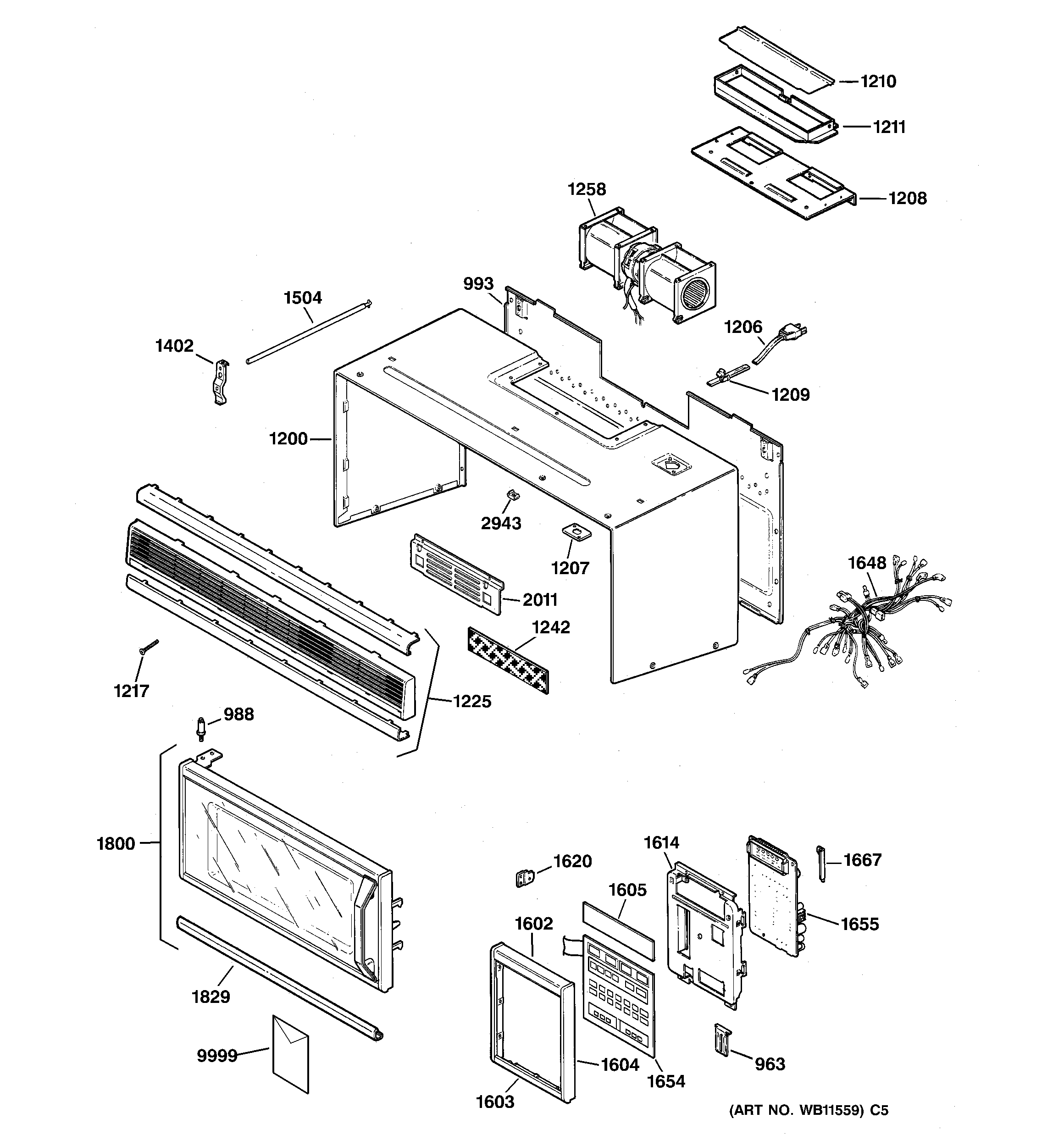

JVM1190CB01 CONTROL PANEL , DOOR & CASE
Products
| Position | Product |
|---|---|
| 963 | GEN WB14X0159 |
| 988 | GEN WB01X1418 |
| 993 | GEN WB06X0009 |
| 1200 | OUTER CASE BQ |
| 1206 | POWER SUPPLY CORD |
| 1207 | GEN WB02X4223 |
| 1208 | GEN WB04X0126 |
| 1209 | BUSHING-POWER CORD |
| 1210 | DAMPER DOOR |
| 1211 | GEN WB02X9957 |
| 1217 | SCREW TRUSS HD. 4X12MM |
| 1225 | GRILLE ASSEMBLY BQ |
| 1242 | GEN WB02X4267 |
| 1258 | MOTOR-FAN |
| 1402 | GUIDE-SHAFT-MOUNTING |
| 1504 | GEN WB06X0030 |
| 1602 | TRIM-CONT PANEL,UPR BQ |
| 1603 | TRIM-CONT PANEL,LWR BQ |
| 1604 | CONTROL PANEL BQ |
| 1605 | GEN WB36X0954 |
| 1614 | GEN WB06X0430 |
| 1620 | GEN WB04X0185 |
| 1648 | GEN WB18X10064 |
| 1654 | GEN WB27X10338 |
| 1655 | GEN WB27X10227 |
| 1667 | GEN WB06X0061 |
| 1800 | GEN WB55X10307 |
| 1829 | GEN WB07X10296 |
| 1829 | TRIM DOOR, UPR BQ |
| 2011 | GEN WB06X0031 |
| 2943 | GEN WB01X1502 |
| 9999 | GEN 31-20296 |
| 9999 | GEN 49-40008 |
| 9999 | GEN 49-40009 |
| 9999 | GEN 49-40010 |
| 9999 | GEN 49-40029 |
| 9999 | GEN 49-8637 |
| 9999 | GEN WB02X10516 |
