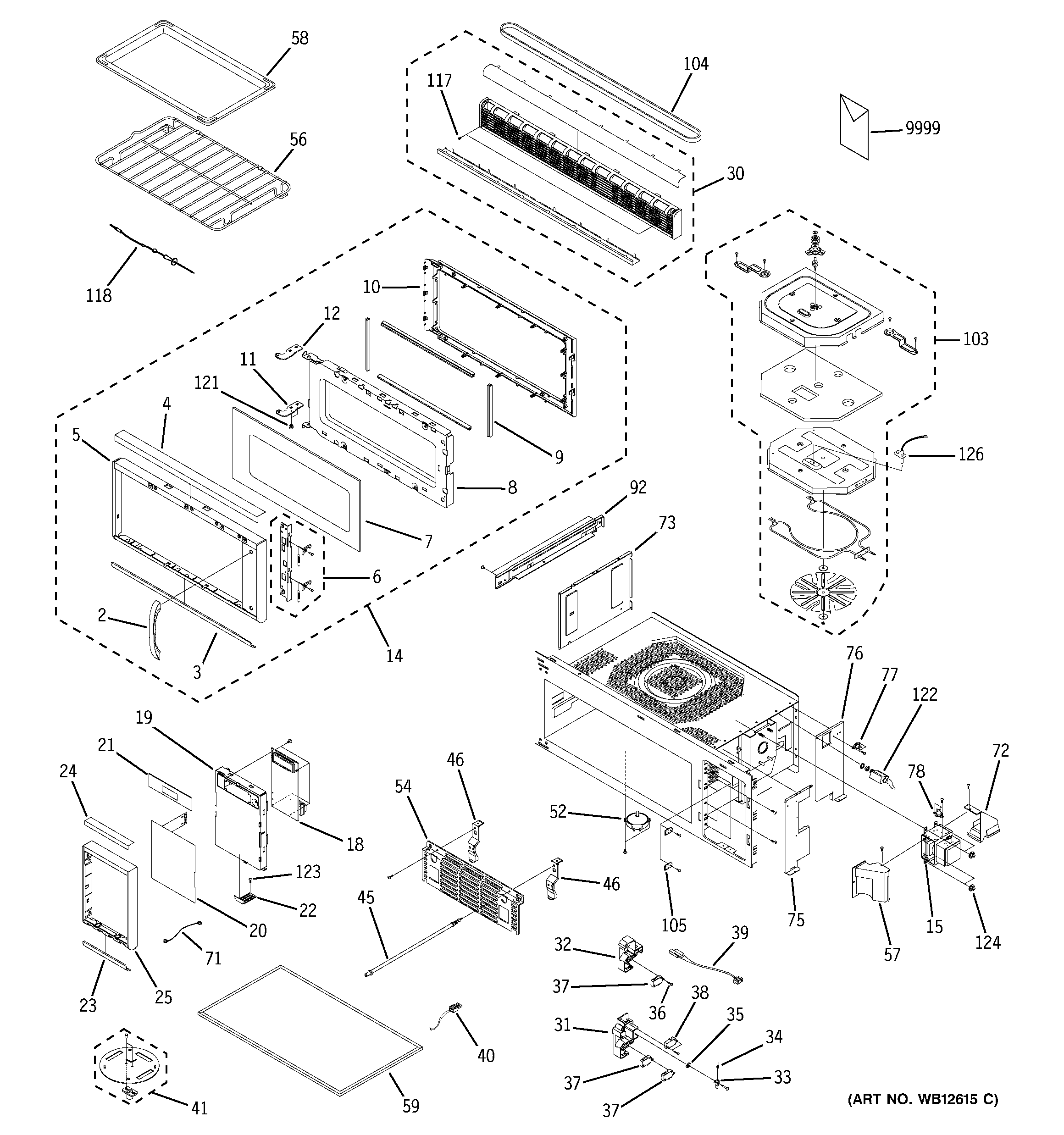

JVM1190WY004 DOOR & CASE PARTS

Products

Position	Product
2	GEN WB15X10094
3	GEN WB07X2056
4	SASH-DOOR-U
5	GEN WB55X10577
6	GEN WB05X10008
7	GEN WB36X10230
8	GEN WB55X10571
9	GEN WB02X10868
10	GEN WB55X10572
11	GEN WB14X10029
12	GEN WB14X10030
14	GEN WB56X10317
15	WB27X10585 GE Oven Magnetron
18	GEN WB27X10663
19	GEN WB06X10472
20	GEN WB27X10071
21	GEN WB36X0954
22	GEN WB14X0159
23	GEN WB07X2054
24	GEN WB07X2053
25	GEN WB07X2052
30	GEN WB07X2048
31	GEN WB06X10169
32	GEN WB06X0048
33	GEN WB02X4261
34	GEN WB09X0199
35	GEN WB02X4260
36	GEN WB01X0721
37	WB24X829 GE Oven Microwave Secondary Micro Switch
38	WB24X830 GE Oven Door Switch
39	GEN WB18X10208
40	GEN WB18X10209
41	GEN WB06X0045
45	GEN WB06X0030
46	GUIDE-SHAFT-MOUNTING
52	GEN WB26X0154
54	GEN WB06X0031
56	GEN WB48X10027
57	GEN WB06X0053
58	GEN WB49X0664
59	GEN WB39X0075
71	GEN WB18X10140
72	GEN WB06X0057
73	GEN WB06X0040
75	GEN WB06X10476
76	GEN WB06X10477
77	WB27X10195 GE Oven Thermostat
78	THERMOSTAT-MAGNETRON
92	GEN WB06X10480
103	CASE HEATER ASM
104	GEN WB06X0063
105	GEN WB04X0185
117	SCREW TRUSS HD. 4X12MM
118	GEN WB20X0135
121	GEN WB01X10064
122	GEN WB08X0302
123	SCREW-LAMP SOCKET
124	WB01X10065 GE Oven Flange Nut
126	GEN WB27X0596
9999	GEN 49-40009
9999	GEN 49-8845
9999	GEN 49-40063-2
9999	GEN 49-40008
9999	GEN 31-20296
9999	GEN 49-40010
