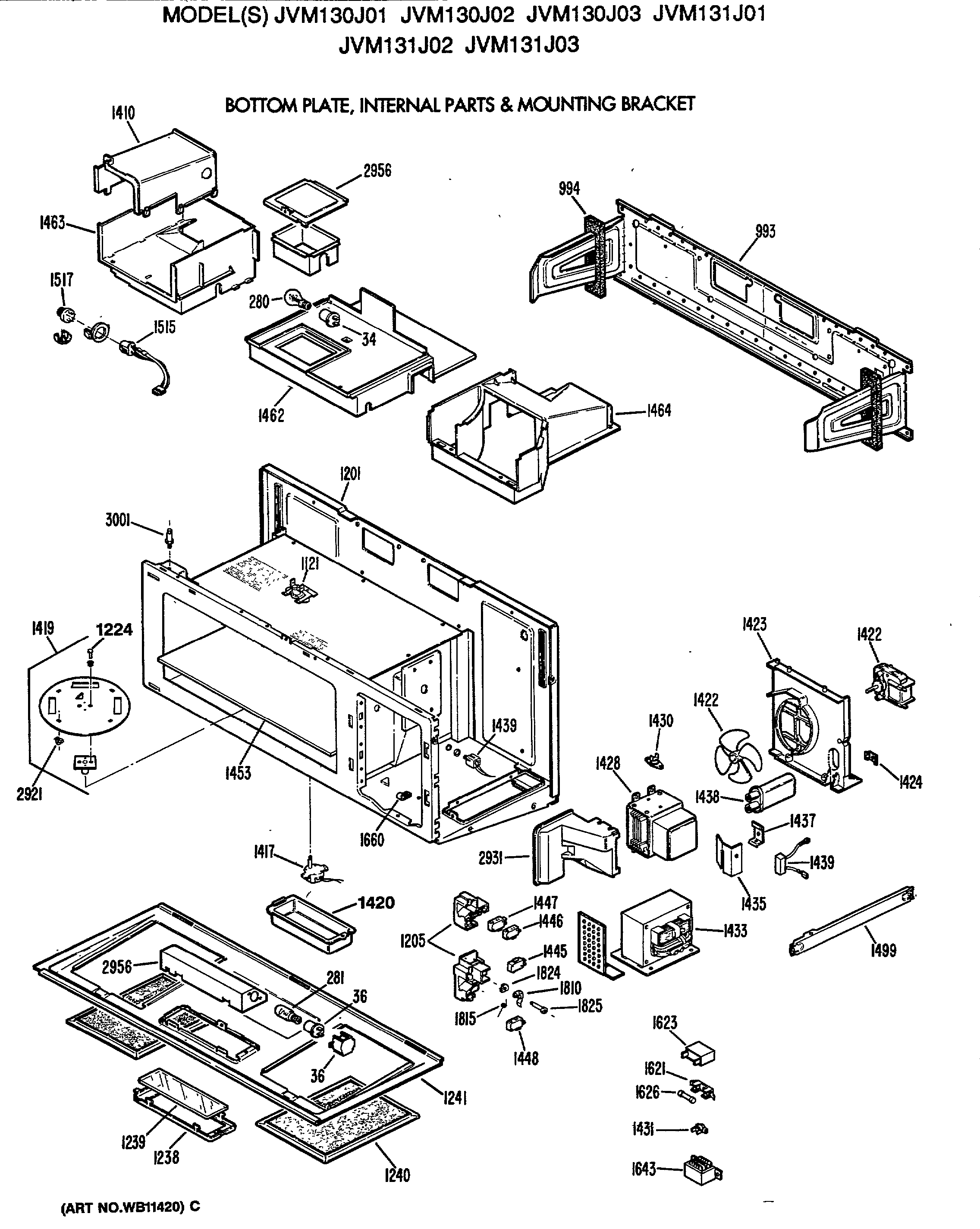

JVM130J01 BOTTOM PLATE, INTERNAL PARTS AND MOUNTING BRACKET

JVM130J01 BOTTOM PLATE, INTERNAL PARTS AND MOUNTING BRACKET

Written by

in

JVM130J01 BOTTOM PLATE, INTERNAL PARTS AND MOUNTING BRACKET

Products

PositionProduct
34GEN WB08X0275
36RECEPTACLE-LAMP-COOK TOP
281WB36X10003 GE Oven 40W 130V Light Bulb
993GEN WB56X2079
994GEN WB06X0178
1121GEN WB20X0146
1201GEN WB63X0443
1205GEN WB02X9324
1205LATCH BODY-LOWER
1224GEN WB01X0718
1238GEN WB36X0830
1239GEN WB36X0820
1240FILTER-AIR-BOTTOM
1401OVEN ASSEMBLY
1410GEN WB38X0129
1417GEN WB26X0142
1419GEN WB06X0180
1419GEN WB02X0242
1420GEN WB06X0259
1422GEN WB26X0143
1423GEN WB63X0444
1424GEN WB06X0184
1428WB27X10585 GE Oven Magnetron
1430GEN WB21X0486
1431WB27X709 GE Oven Thermostat Vent
1433GEN WB27X0707
1435BARRIER-HV TRANSFORMER
1437GEN WB06X0185
1438WB27X10240 GE Oven High Voltage Capacitor
1439WB27X1160 GE Microwave High Voltage Diode
1445SWITCH-MONITOR
1447SWITCH MICRO
1448WB24X829 GE Oven Microwave Secondary Micro Switch
1453GEN WB49X0672
1455GEN WB06X0182
1462GEN WB38X0126
1463GEN WB38X0127
1464GEN WB38X0128
1499GEN WB02X4257
1507GEN WB48X0223
1515GEN WB27X5392
1517WB27X1170 GE Oven Gas Sensor
1621FUSE HOLDER
1623WB27X10170 GE Oven Capacitor
1626WB27X7 GE Oven Fuse
1643GEN WB27X0708
1660GEN WB02X9323
1810GEN WB10X0279
1815GEN WB09X0282
1824GEN WB06X0175
1825GEN WB06X0174
2921GEN WB06X0181
2956GEN WB06X0177
3005INSTALLATION HARDWARE
3010GEN WB01X0894
7128GEN WB01X1460
7138GEN WB01X1459
9999GEN 49-8096
9999GEN 49-8078
9999GEN 31-0798
9999GEN 31-0893
9999GEN 31-0897
