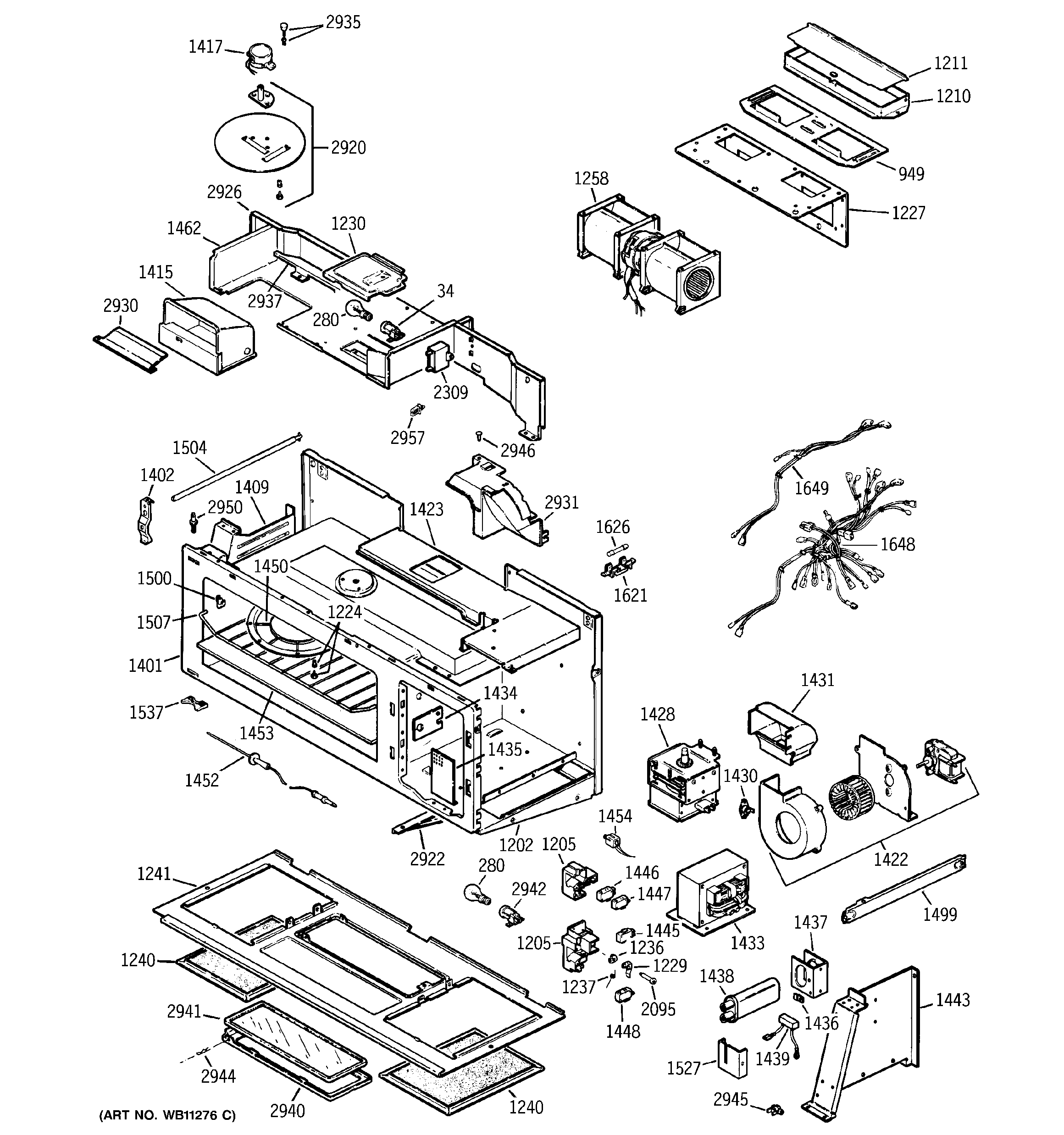

JVM131G02 INTERNAL PARTS

Products

Position	Product
34	SOCKET-COOKTOP LAMP
280	WB36X10003 GE Oven 40W 130V Light Bulb
949	BRACKET-ADJUSTABLE
1202	GEN WB56X1938
1205	LATCH BODY-LOWER
1205	GEN WB02X9324
1210	HOOD DAMPER
1211	DAMPER DOOR
1224	GEN WB01X0718
1227	BRACKET-MOTOR
1229	GEN WB02X4261
1230	GEN WB08X0285
1236	GEN WB02X4260
1237	GEN WB09X0199
1240	GEN WB02X4267
1240	FILTER-AIR-BOTTOM
1241	GEN WB56X1933
1258	MOTOR-FAN
1401	OVEN ASSEMBLY
1402	GUIDE-SHAFT-MOUNTING
1409	DUCT-SIDE-LEFT
1415	DUCT-EXHAUST
1417	MOTOR-STIRRER
1422	MOTOR-BLOWER
1423	SUPPORT-MOTOR
1428	WB27X10249 GE Oven Magnetron
1430	GEN WB21X0486
1431	GEN WB02X9333
1433	GEN WB27X0462
1434	GEN WB02X9335
1435	BARRIER-HV TRANSFORMER
1436	FASTENER-HV CAPACITOR
1437	GEN WB02X9331
1438	CAPACITOR-HV
1439	WB27X1160 GE Microwave High Voltage Diode
1443	DUCT-SIDE-RIGHT
1445	SWITCH-MONITOR
1446	SWITCH START
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1450	GEN WB02X9332
1452	GEN WB20X0079
1453	GEN WB49X0635
1454	GEN WB08X0288
1462	GEN WB02X9326
1499	GEN WB02X4257
1500	RACK HOLDER
1504	GEN WB02X9321
1507	RACK-OVEN
1527	BARRIER-CAPACITOR
1537	CLIP-BOTTOM
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1648	GEN WB18X0341
1648	GEN WB02X9323
1649	GEN WB18X0344
2095	GEN WB01X0721
2309	CAPACITOR
2920	GEN WB02X9355
2922	GEN WB02X9322
2926	GEN WB02X9325
2930	GEN WB02X9359
2931	GEN WB02X9328
2935	GEN WB02X9338
2937	GEN WB02X9356
2940	GEN WB36X0765
2941	GEN WB02X9334
2942	GEN WB08X0275
2944	PIN WIRE
2945	THERMOSTAT
2946	CLIP
2950	GEN WB02X9358
2957	GEN WB02X9330
