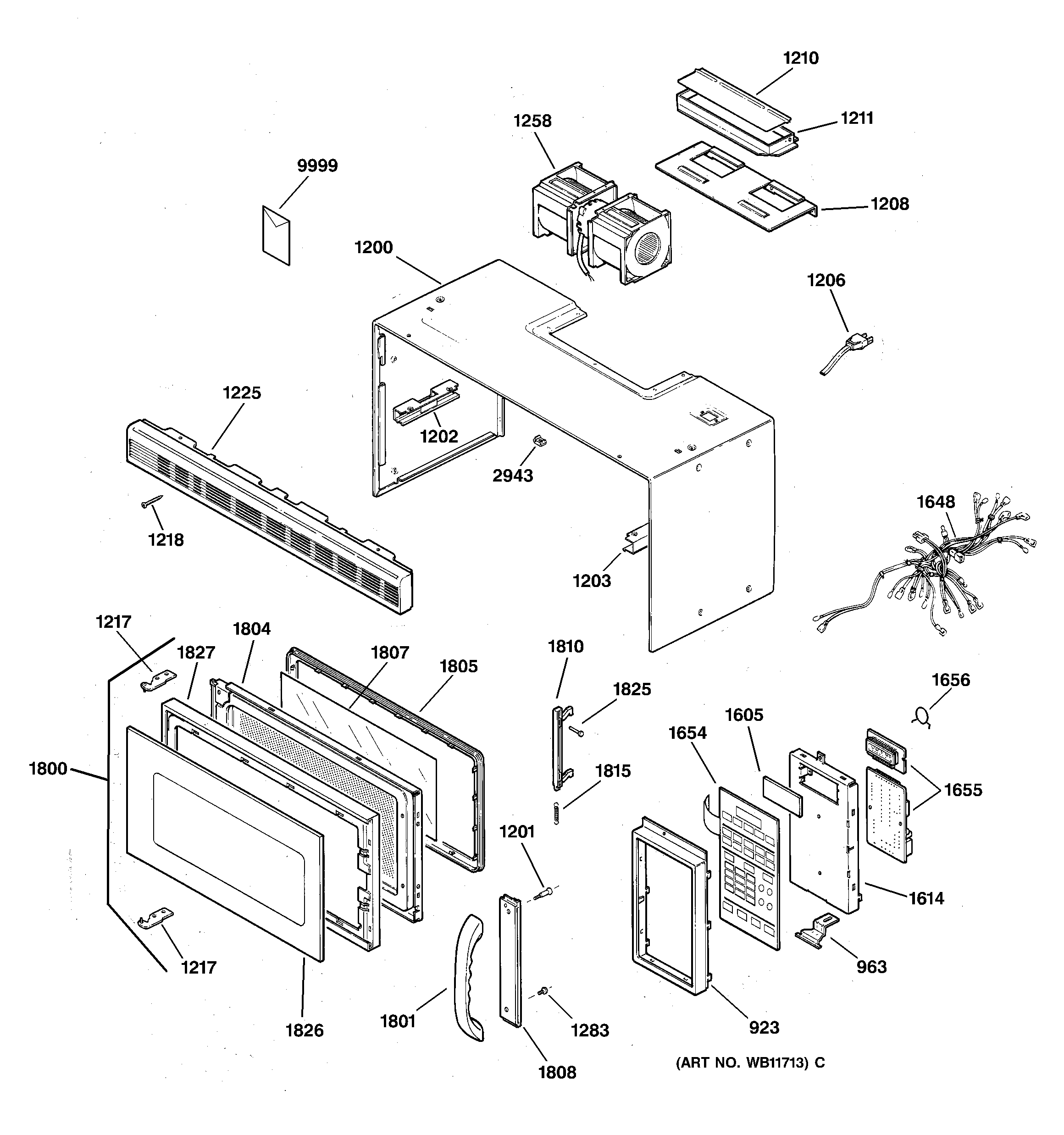

JVM1320BB01 CASE, DOOR & CONTROLS
Products
| Position | Product |
|---|---|
| 923 | CONTROL PANEL - BLK |
| 963 | HINGE-C/BOX |
| 1200 | GEN WB56X2183 |
| 1201 | GEN WB01X1525 |
| 1202 | GEN WB06X0510 |
| 1203 | GEN WB06X0511 |
| 1206 | GEN WB18X0566 |
| 1208 | GEN WB06X0387 |
| 1210 | WB06X10129 GE Oven Damper Cover |
| 1211 | WB06X10436 GE Oven Hood Damper Assembly |
| 1217 | GEN WB14X0203 |
| 1218 | GEN WB01X1463 |
| 1225 | GEN WB07X2082 |
| 1258 | GEN WB26X0182 |
| 1283 | WE02X10086 GE Dryer Screw |
| 1605 | GEN WB36X0944 |
| 1614 | ASSY-BKT C/PANEL |
| 1648 | WIRE HARNESS-A |
| 1654 | GEN WB27X10357 |
| 1655 | GEN WB27X10356 |
| 1656 | GEN WB27X0956 |
| 1800 | GEN WB55X10324 |
| 1801 | HANDLE ASM - BLK |
| 1804 | GEN WB55X10325 |
| 1805 | GEN WB55X0985 |
| 1807 | GEN WB36X0943 |
| 1808 | BRACKET - DOOR - BLK |
| 1810 | GEN WB10X0301 |
| 1815 | GEN WB09X0303 |
| 1825 | GEN WB06X0480 |
| 1826 | GEN WB36X0940 |
| 1827 | DOOR-A |
| 2943 | GEN WB01X1502 |
| 9999 | GEN 49-40091 |
| 9999 | GEN 49-8699 |
| 9999 | TEMPLATE |
| 9999 | GEN WB01X1526 |
| 9999 | GEN 31-20931 |
