JVM1320BD001 MICROWAVE

Products

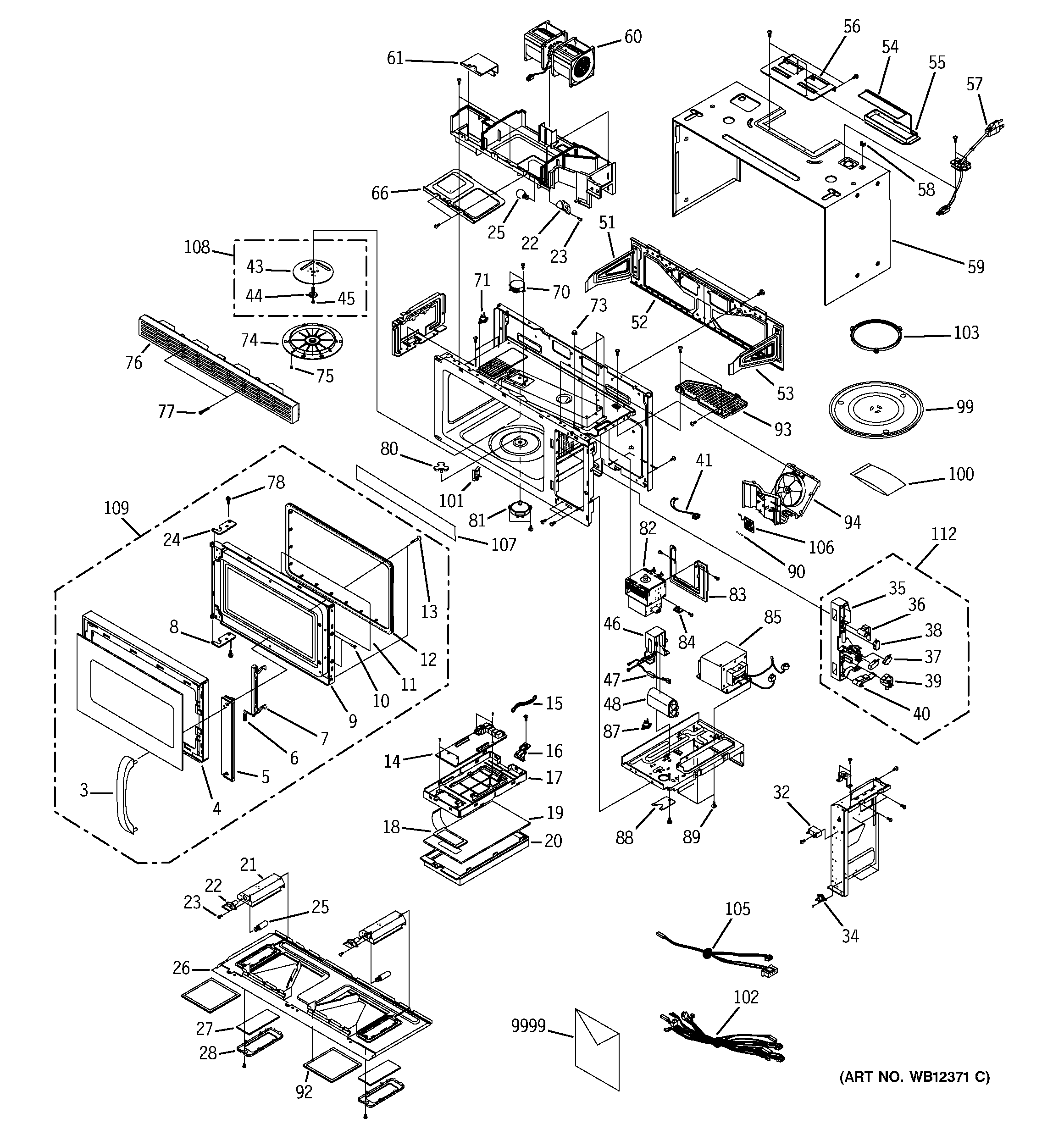

Position	Product
3	HANDLE ASM – BLK
4	DOOR-A
5	BRACKET – DOOR – BLK
6	GEN WB09X0303
7	GEN WB10X0301
8	GEN WB14X10012
9	ASSY DOOR-E
10	GEN WB06X10025
11	GEN WB36X0943
12	GEN WB55X0985
13	SCREW, TAPPING
14	SMARTBOARD
15	GEN WB18X10139
16	HINGE-C/BOX
17	ASSY-BKT C/PANEL
18	GEN WB36X10070
19	GEN WB27X10357
20	CONTROL PANEL – BLK
21	GEN WB06X10117
22	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
23	SCREW-LAMP SOCKET
24	GEN WB14X0203
25	WB36X10003 GE Oven 40W 130V Light Bulb
26	GEN WB56X10170
27	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
28	COVER LAMP
32	WB27X10170 GE Oven Capacitor
34	WB27X709 GE Oven Thermostat Vent
35	GEN WB06X0484
36	GEN WB06X0489
37	WB24X830 GE Oven Door Switch
38	WB24X829 GE Oven Microwave Secondary Micro Switch
39	GEN WB06X0490
40	GEN WB06X0491
41	GEN WB18X10048
43	WB06X10416 GE Oven Stirrer Assembly
44	GEN WB06X10123
45	GEN WB06X10340
46	GEN WB06X10118
47	WB27X1160 GE Microwave High Voltage Diode
48	GEN WB27X10368
51	GEN WB56X10167
52	GEN WB56X10168
53	GEN WB56X10166
54	WB06X10129 GE Oven Damper Cover
55	WB06X10436 GE Oven Hood Damper Assembly
56	GEN WB06X0387
57	GEN WB18X0566
58	ASM.- NUT HOLDER
59	GEN WB56X10169
60	GEN WB26X0182
61	GEN WB06X0492
66	GEN WB06X0493
70	GEN WB26X0154
71	GEN WB27X10167
73	WB01X10065 GE Oven Flange Nut
74	GEN WB06X10130
75	BUTTON-LOCK
76	GEN WB07X2082
77	SCREW-GRILLE
78	GEN WB01X10064
80	GEN WB06X10138
81	MOTOR-SYNCHRONOUS
82	WB27X10017 GE Microwave Oven Magnetron
83	GEN WB06X10280
84	GEN WB24X0810
85	GEN WB27X10377
87	WB27X1127 RANGE THERMAL FUSE
88	COVER TCO BOTTOM
89	WB01X10084 GE Oven Washer Screw
90	WB27X10928 GE Oven Line Fuse
92	WB6X486 GE Microwave Range Vent Hood Grease Filter
93	GEN WB06X0495
94	ASSY-MOTOR FAN
99	WB49X10097 GE Oven Cooking Tray
100	GEN WB01X1526
101	GEN WB01X10135
102	GEN WB18X10183
103	ASSY-GUIDE ROLLER
105	GEN WB18X10123
106	GEN WB06X10164
107	GEN WB07X2087
108	GEN WB06X0496
109	GEN WB55X10324
112	GEN WB06X10412
9999	GEN 49-40228
9999	GEN 49-8729
9999	GEN 49-8699-3
9999	GEN 31-20978
9999	GEN 49-40233
