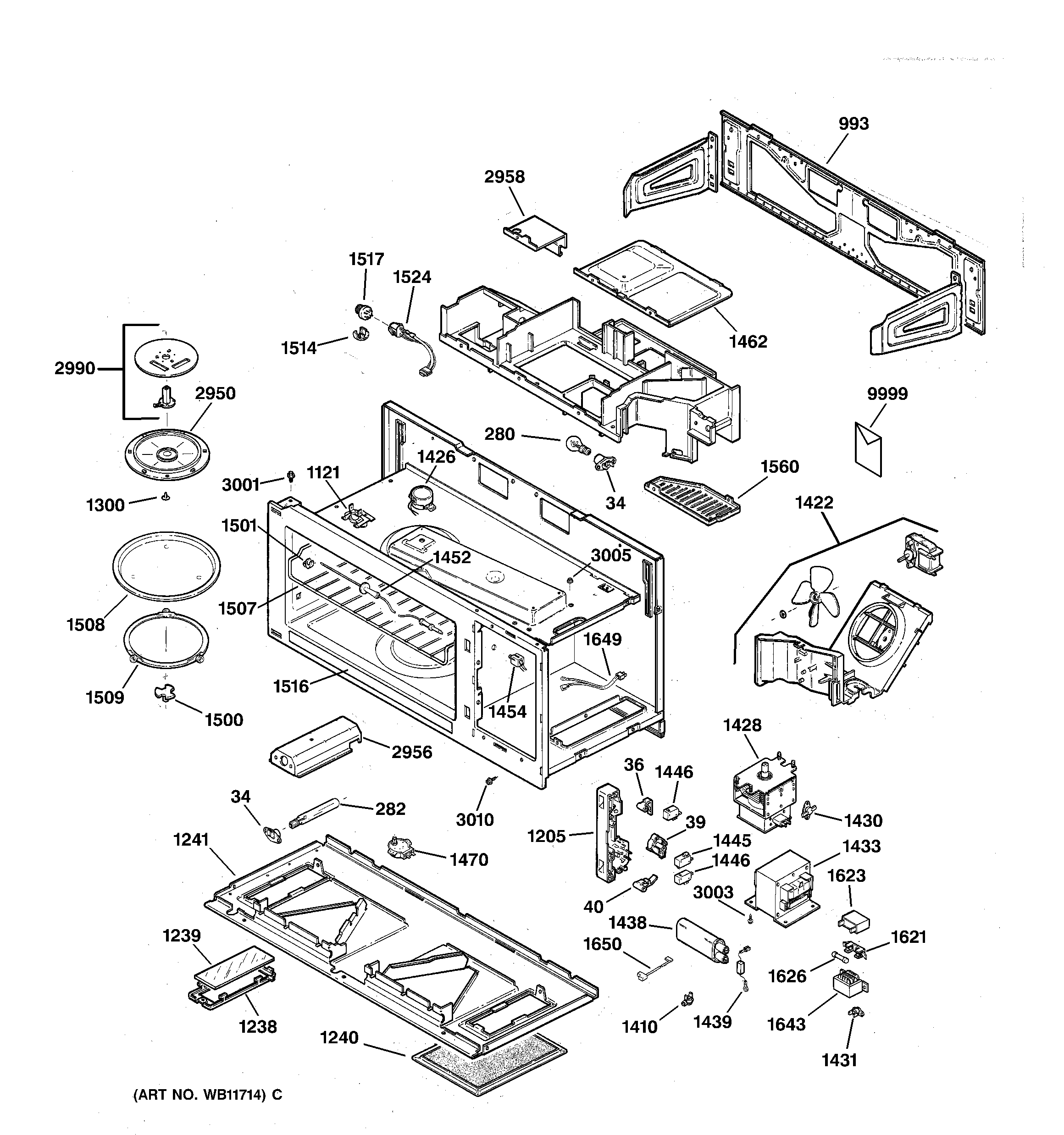

JVM1350AW01 BASE, STIRRER & ELECTRONICS

JVM1350AW01 BASE, STIRRER & ELECTRONICS

Written by

in

JVM1350AW01 BASE, STIRRER & ELECTRONICS

Products

PositionProduct
34WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
36GEN WB06X0489
39GEN WB06X0490
40GEN WB06X0491
280WB36X10003 GE Oven 40W 130V Light Bulb
993GEN WB56X2147
1121GEN WB20X0170
1205GEN WB06X0484
1238GEN WB06X0483
1239WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
1240WB6X486 GE Microwave Range Vent Hood Grease Filter
1241GEN WB56X2182
1300GEN WB01X1498
1410WB27X1127 RANGE THERMAL FUSE
1422GEN WB26X0183
1426GEN WB26X0154
1428WB27X10017 GE Microwave Oven Magnetron
1430GEN WB24X0818
1431GEN WB27X1126
1433GEN WB27X1112
1438GEN WB27X0949
1439WB27X1160 GE Microwave High Voltage Diode
1445WB24X830 GE Oven Door Switch
1446WB24X829 GE Oven Microwave Secondary Micro Switch
1452GEN WB20X0144
1454PROBE SOCKET
1462GEN WB06X0493
1470MOTOR-SYNCHRONOUS
1500GEN WB06X0485
1501GEN WB06X0419
1507GEN WB48X0232
1508WB49X10097 GE Oven Cooking Tray
1509ASSY-GUIDE ROLLER
1514WB6X549 GE Oven Holder Sensor A02
1516GEN WB07X2089
1517WB27X1170 GE Oven Gas Sensor
1524GEN WB20X0169
1560GEN WB06X0495
1621GEN WB06X0234
1623WB27X10170 GE Oven Capacitor
1626GEN WB27X0995
1643GEN WB27X1107
1649GEN WB18X0564
1650WIRE HARNESS ASM. "A"
2950GEN WB06X0494
2956GEN WB06X0488
2958GEN WB06X0492
2990GEN WB06X0496
3001GEN WB01X1457
3003WB01X10084 GE Oven Washer Screw
3005WB01X10065 GE Oven Flange Nut
3010GEN WB01X0894
9999GEN 31-20246
9999GEN WB01X1526
9999GEN 49-8699
9999GEN 49-8729
9999GEN 49-8729-1
9999GEN 49-8697
