JVM140001 MICROWAVE OVENS

JVM140001 MICROWAVE OVENS

Written by

in

JVM140001 MICROWAVE OVENS

Products

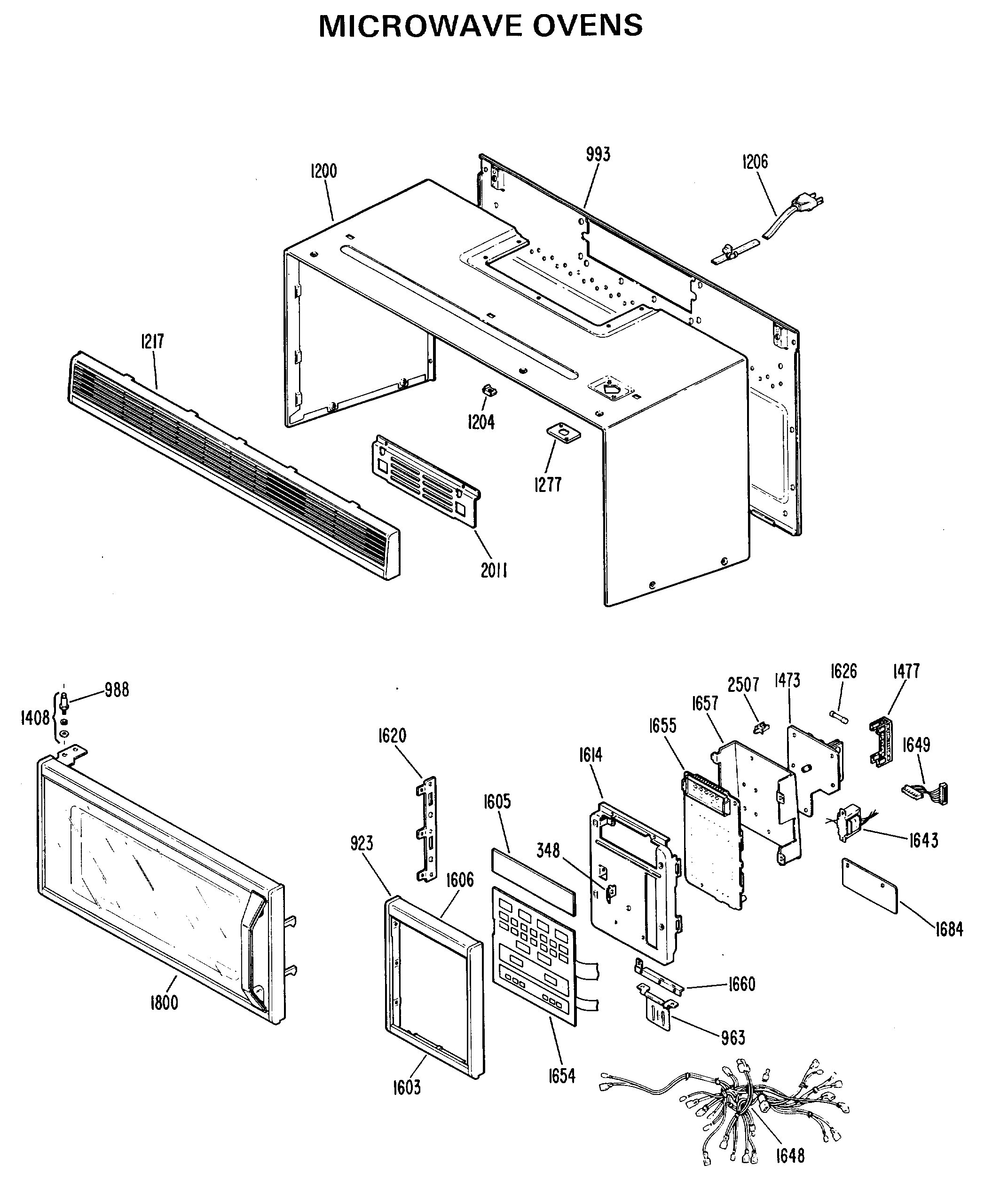

Position	Product
34	GEN WB08X0240
280	WB36X10003 GE Oven 40W 130V Light Bulb
348	GEN WB02X4229
923	GEN WB07X1369
923	GEN WB01X0800
949	BRACKET-ADJUSTABLE
963	GEN WB14X0046
988	BOLT
993	GEN WB56X1683
1200	GEN WB56X1684
1202	GEN WB49X0522
1204	NUT ASSEMBLY
1205	GEN WB02X4255
1205	GEN WB02X4259
1206	CORD POWER
1210	HOOD DAMPER
1211	DAMPER DOOR
1217	GEN WB07X1368
1217	SCREW-GRILLE MOUNTING
1224	GEN WB01X0718
1227	BRACKET-MOTOR
1229	GEN WB02X4261
1230	GEN WB02X4234
1236	GEN WB02X4260
1237	GEN WB09X0199
1239	GEN WB36X0677
1240	FILTER-AIR-BOTTOM
1240	GEN WB02X4267
1241	GEN WB56X1685
1246	THERMOSTAT
1251	GEN WB02X4250
1258	GEN WB26X0072
1277	GEN WB02X4223
1401	OVEN ASSEMBLY
1402	GUIDE-SHAFT-MOUNTING
1405	GEN WB02X4237
1408	GEN WB01X0838
1408	WASHER-SMOOTH
1409	DUCT-SIDE-LEFT
1410	GEN WB02X4241
1415	DUCT-EXHAUST
1417	MOTOR-STIRRER
1419	GEN WB02X4233
1419	GEN WB02X9041
1422	MOTOR-BLOWER
1423	SUPPORT-MOTOR
1428	WB27X10249 GE Oven Magnetron
1430	GEN WB27X5321
1431	GEN WB02X4246
1433	GEN WB27X0284
1434	GEN WB02X4245
1435	BARRIER-HV TRANSFORMER
1436	FASTENER-HV CAPACITOR
1437	GEN WB02X4258
1438	CAPACITOR-HV
1439	WB27X1160 GE Microwave High Voltage Diode
1443	DUCT-SIDE-RIGHT
1445	SWITCH-MONITOR
1446	GEN WB24X0326
1447	GEN WB24X0327
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1450	GEN WB02X4248
1451	GEN WB01X0717
1452	GEN WB20X0079
1453	GEN WB39X0059
1454	PROBE SOCKET
1454	GEN WB01X5588
1455	GEN WB02X4242
1462	GEN WB49X0519
1473	GEN WB27X0280
1475	GEN WB02X4254
1477	GEN WB02X7065
1499	GEN WB02X4257
1500	GEN WB02X4249
1507	GEN WB48X0167
1509	GEN WB02X4232
1516	GEN WB07X1425
1527	BARRIER-CAPACITOR
1537	CLIP-BOTTOM
1603	TRIM-CONTROL PANEL-LOWER
1605	GEN WB36X0676
1606	TRIM-CONTROL PANEL-UPPER
1614	BRACKET-CONTROL PANEL
1620	BRACKET-FRONT PANEL
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1643	GEN WB27X0281
1648	GEN WB18X0217
1649	GEN WB18X0296
1654	GEN WB27X0278
1655	GEN WB27X0279
1657	GEN WB02X4226
1660	GEN WB02X4224
1684	GEN WB02X4228
1800	GEN WB55X0512
2011	BARRIER-FRONT
2095	GEN WB01X0721
2309	CAPACITOR
2507	GEN WB01X0716
2525	GEN WB02X4262
32767	GEN 49-4664
32767	GEN 31-0451
32767	GEN 31-0452
32767	GEN 31-0453
32767	GEN WB02X4265
32767	GEN 49-4658
