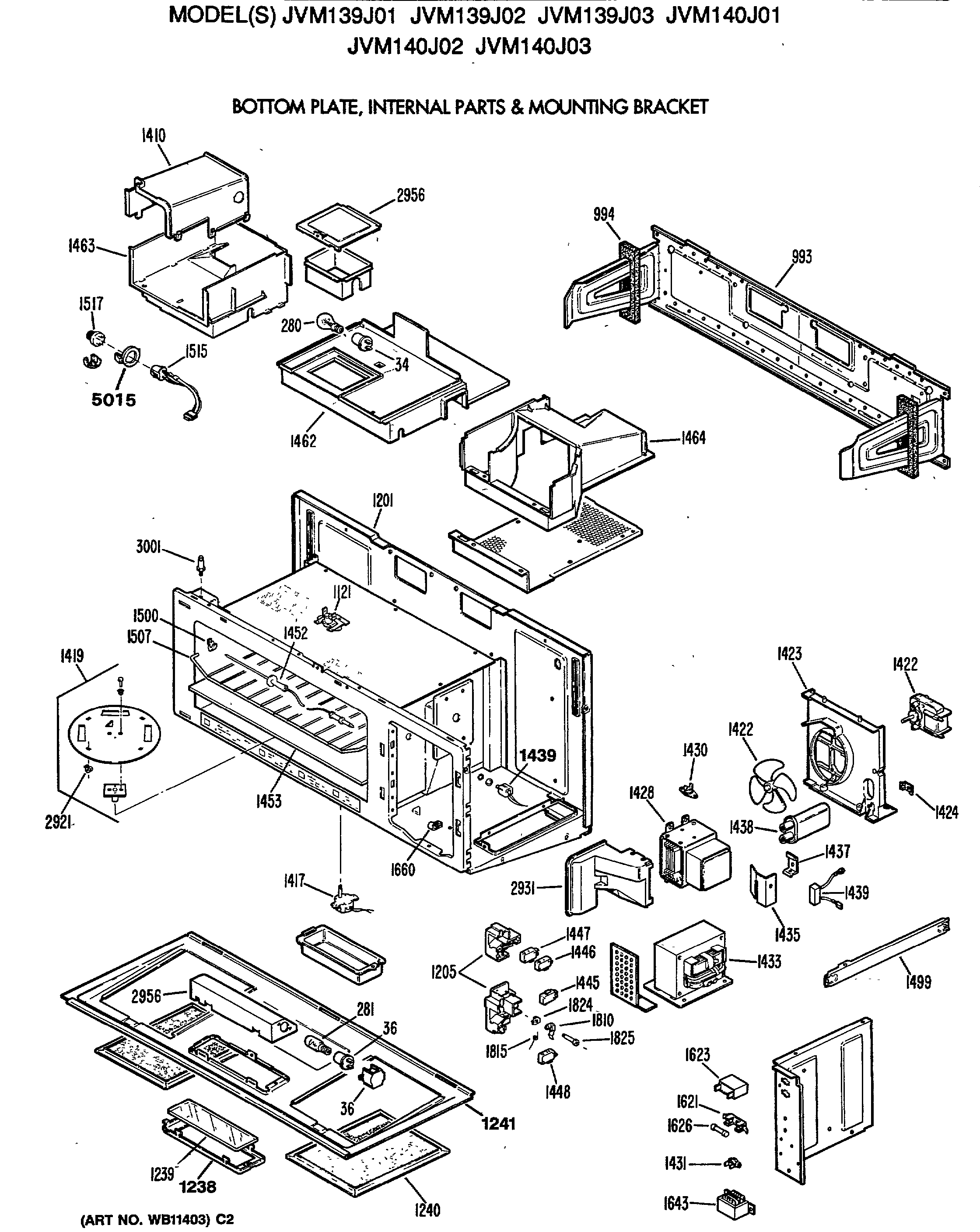

JVM140J01 BOTTOM PLATE, INTERNAL PARTS & MOUNTING BRACKET

Products

Position	Product
34	GEN WB08X0275
36	RECEPTACLE-LAMP-COOK TOP
281	WB36X10003 GE Oven 40W 130V Light Bulb
993	GEN WB56X2079
994	GEN WB06X0178
1121	GEN WB20X0146
1201	GEN WB63X0443
1205	GEN WB02X9324
1205	LATCH BODY-LOWER
1224	GEN WB01X0718
1238	GEN WB36X0830
1239	GEN WB36X0820
1240	FILTER-AIR-BOTTOM
1401	OVEN ASSEMBLY
1410	GEN WB38X0129
1417	GEN WB26X0142
1419	GEN WB06X0180
1420	GEN WB06X0259
1422	GEN WB26X0143
1423	GEN WB63X0444
1424	GEN WB06X0184
1428	WB27X10585 GE Oven Magnetron
1430	GEN WB24X0410
1431	WB27X709 GE Oven Thermostat Vent
1433	GEN WB27X0707
1435	BARRIER-HV TRANSFORMER
1437	GEN WB06X0185
1438	WB27X10240 GE Oven High Voltage Capacitor
1439	WB27X1160 GE Microwave High Voltage Diode
1445	SWITCH-MONITOR
1447	SWITCH MICRO
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1452	GEN WB20X0147
1453	GEN WB49X0672
1454	GEN WB20X0145
1455	GEN WB06X0182
1462	GEN WB38X0126
1463	GEN WB38X0127
1464	GEN WB38X0128
1499	GEN WB02X4257
1500	GEN WB02X9934
1507	GEN WB48X0223
1515	GEN WB27X5392
1516	GEN WB07X1928
1517	WB27X1170 GE Oven Gas Sensor
1621	FUSE HOLDER
1623	WB27X10170 GE Oven Capacitor
1626	WB27X7 GE Oven Fuse
1643	GEN WB27X0708
1660	GEN WB02X9323
1810	GEN WB10X0279
1815	GEN WB09X0282
1824	GEN WB06X0175
1825	GEN WB06X0174
2921	GEN WB06X0181
2956	GEN WB06X0177
3001	BOLT
3005	GEN WB01X1458
3010	GEN WB01X0894
5015	WB6X549 GE Oven Holder Sensor A02
7128	GEN WB01X1460
7138	GEN WB01X1459
9999	GEN 49-8078
9999	GEN 31-0798
9999	GEN 31-0893
9999	GEN 31-0897
9999	GEN 49-8099
