JVM1430BA01 MICROWAVE

JVM1430BA01 MICROWAVE

Written by

in

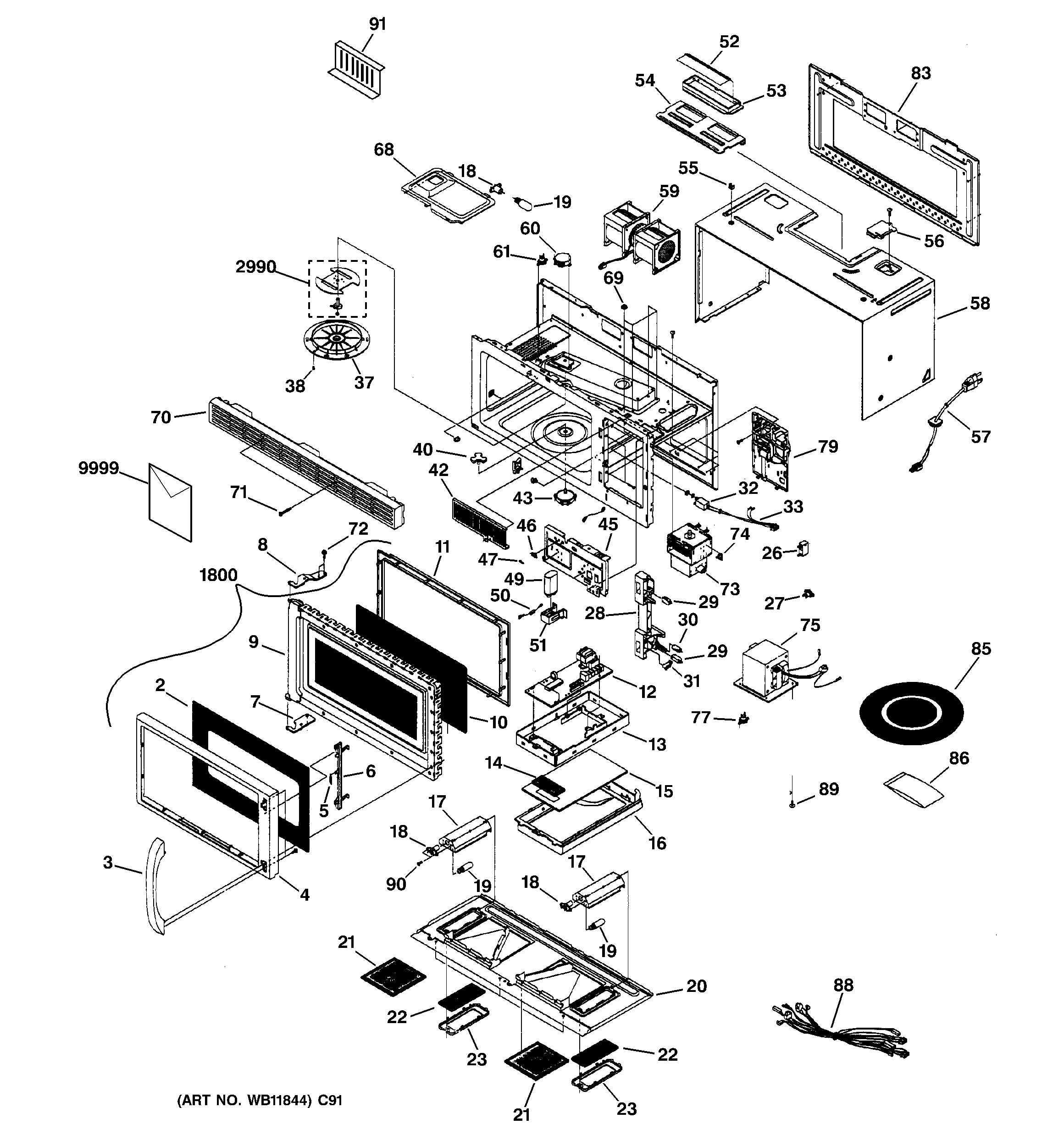

JVM1430BA01 MICROWAVE

Products

Position	Product
2	GEN WB36X10069
3	HANDLE
4	DOOR – A
5	GEN WB09X10008
6	LATCH, DOOR
7	HINGE- LOWER
8	HINGE- UPPER
9	DOOR CHOKE & LINER BK
10	GEN WB36X10068
11	GEN WB55X10137
12	GEN WB27X10766
13	GEN WB06X10135
14	GEN WB36X10070
15	GEN WB27X10165
16	CONTROL PANEL
17	GEN WB06X10117
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10085
21	WB6X486 GE Microwave Range Vent Hood Grease Filter
22	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
23	COVER LAMP
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10168
28	GEN WB06X10127
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
32	GEN WB20X10008
33	GEN WB18X10055
37	GEN WB06X10130
38	BUTTON-LOCK
40	GEN WB06X10138
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
45	GEN WB06X10119
46	GEN WB06X10005
47	WB27X10928 GE Oven Line Fuse
49	WB27X10011 GE Microwave Capacitor
50	WB27X10597 GE Oven Diode
51	GEN WB06X10118
52	WB06X10129 GE Oven Damper Cover
53	WB06X10436 GE Oven Hood Damper Assembly
54	GEN WB06X10120
55	ASM.- NUT HOLDER
56	GEN WB06X10122
57	POWER CORD ASM
58	CASE,OUTER-BLACK
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	GEN WB27X10167
68	GEN WB06X10121
69	WB01X10065 GE Oven Flange Nut
70	GEN WB07X10194
71	SCREW-GRILLE
72	GEN WB01X10064
73	WB27X10017 GE Microwave Oven Magnetron
74	GEN WB27X10166
75	GEN WB27X10133
77	WB27X1127 RANGE THERMAL FUSE
79	GEN WB26X10043
83	GEN WB56X10084
85	COOKING TRAY
86	HARD WARE ASS'Y
88	GEN WB18X10054
89	WB01X10084 GE Oven Washer Screw
90	SCREW-LAMP SOCKET
91	GEN WB06X10167
1800	GEN WB55X10139
2990	GEN WB06X10134
9999	GEN 49-40040
9999	TEMPLATE
9999	GEN 31-20904
