JVM1440WD002 MICROWAVE

JVM1440WD002 MICROWAVE

Written by

in

JVM1440WD002 MICROWAVE

Products

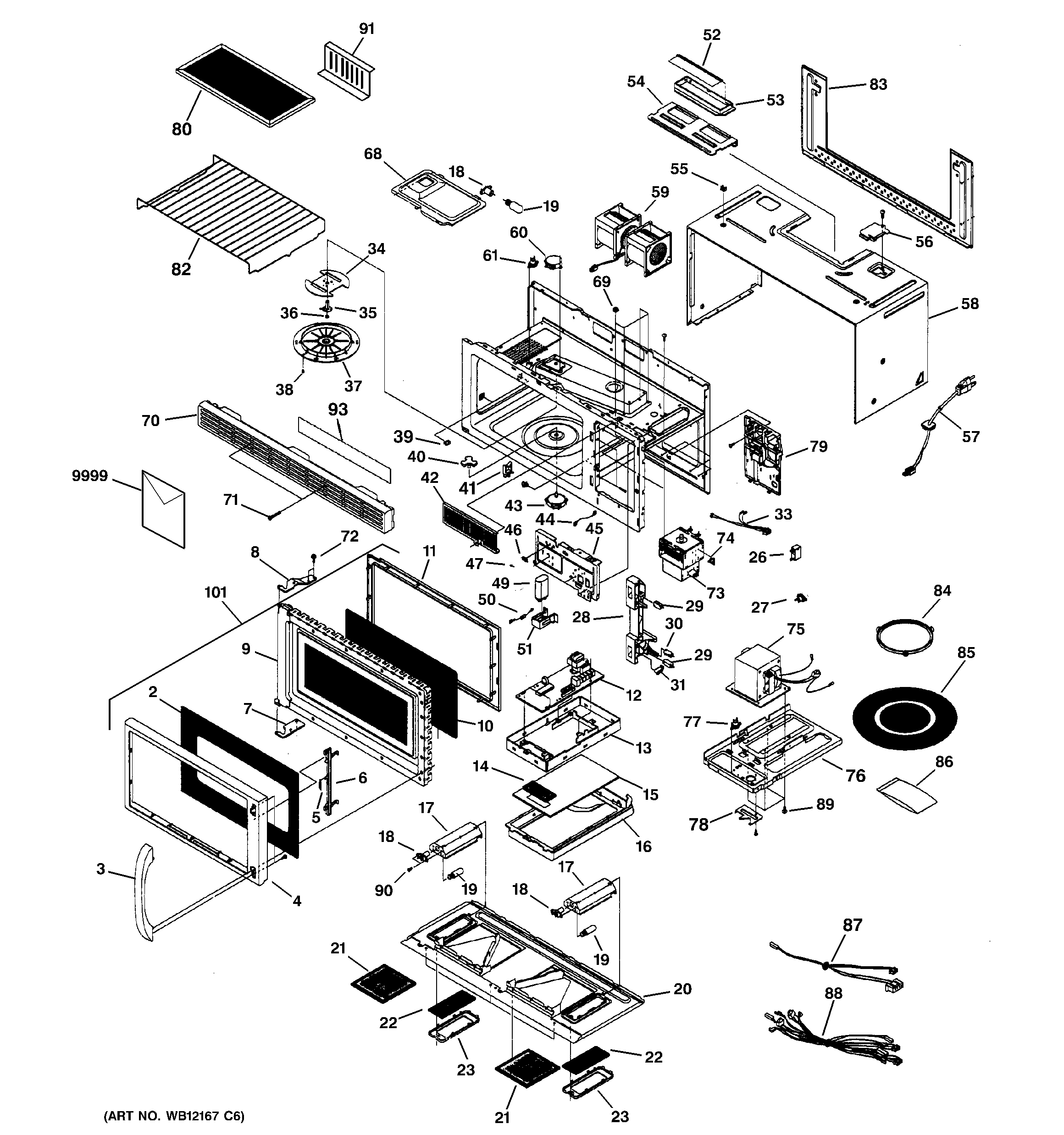

Position	Product
2	GEN WB36X10072
3	WB15X10023 GE Oven Door Handle
4	GEN WB55X10142
5	GEN WB09X10013
6	DOOR KEY
7	HINGE- LOWER
8	HINGE- UPPER
9	GEN WB55X10148
10	GEN WB36X10068
11	GEN WB55X10141
12	GEN WB27X10480
13	GEN WB06X10135
14	GEN WB36X10070
15	GEN WB27X10529
16	CONTROL PANEL ASS'Y WH
17	GEN WB06X10117
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10089
21	WB6X486 GE Microwave Range Vent Hood Grease Filter
22	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
23	COVER LAMP
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	GEN WB06X10127
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
33	GEN WB18X10055
34	GEN WB06X10116
35	WB06X10416 GE Oven Stirrer Assembly
36	GEN WB06X10340
37	GEN WB06X10130
38	BUTTON-LOCK
39	RACK HOLDER
40	GEN WB06X10138
41	WB01X10118 GE Saddle Wire
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
44	WB18X10122 GE Oven Wire GND Printed Circuit Board
45	GEN WB06X10147
46	GEN WB06X10050
47	WB27X10928 GE Oven Line Fuse
49	WB27X10011 GE Microwave Capacitor
50	WB27X1160 GE Microwave High Voltage Diode
51	GEN WB06X10118
52	WB06X10129 GE Oven Damper Cover
53	WB06X10436 GE Oven Hood Damper Assembly
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	POWER CORD ASM
58	CASE, OUTER- WHITE
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
68	BRACKET-DUCT UPPER ASM
69	WB01X10065 GE Oven Flange Nut
70	GRILLE
71	SCREW-GRILLE
72	GEN WB01X10064
73	WB27X10017 GE Microwave Oven Magnetron
74	GEN WB27X10166
75	GEN WB27X10133
76	GEN WB56X10228
77	WB27X1127 RANGE THERMAL FUSE
78	COVER TCO BOTTOM
79	MOTOR MAG FAN ASM
80	CHARCOAL FILTER(OPTIONA)
82	GEN WB48X10008
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	HARD WARE ASS'Y
87	GEN WB18X10123
88	GEN WB18X10061
89	WB01X10084 GE Oven Washer Screw
90	SCREW-LAMP SOCKET
91	GEN WB06X10167
93	GEN 49-40217
101	GEN WB55X10143
9999	GEN 49-40134-1
9999	GEN 49-40135-1
9999	MINI MANUAL
9999	GEN 49-40136-1
9999	GEN 49-40151-1
