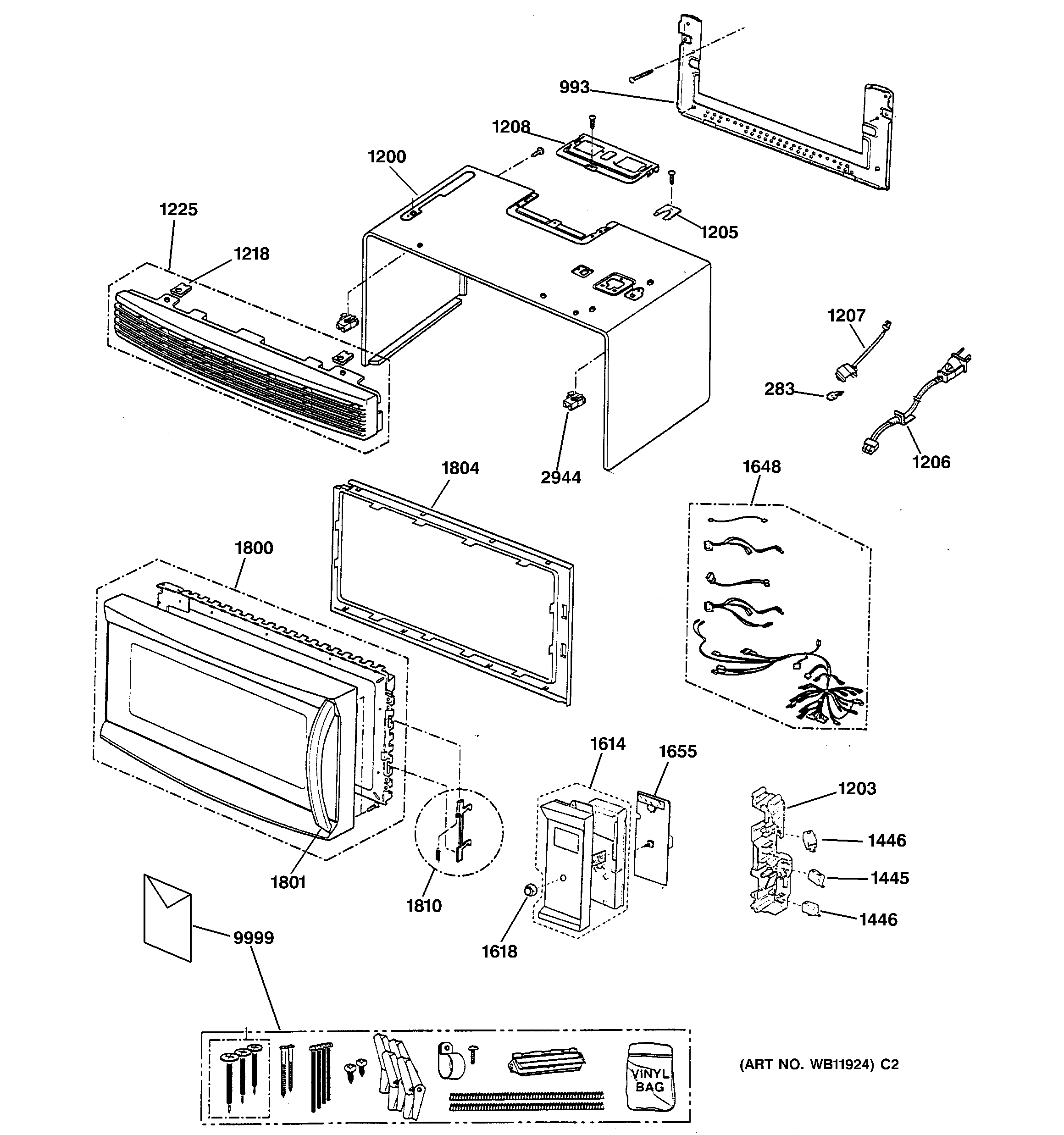

JVM1490BD002 CONTROL PANEL, DOOR, GRILLE & BASE

JVM1490BD002 CONTROL PANEL, DOOR, GRILLE & BASE

Written by

in

JVM1490BD002 CONTROL PANEL, DOOR, GRILLE & BASE

Products

PositionProduct
283WB36X10163 GE Halogen Lamp 10W 12V G4 2 Pin Base
993WB56X35363 GE Mounting Bracket
1200GEN WB56X10205
1203GEN WB06X10216
1205WB06X10308 GE Microwave Power Cord Cover
1206GEN WB18X10150
1207GEN WB36X10179
1208WB02X32725 GE Vent Motor Cover Mount
1218GEN WB02X10625
1225GEN WB07X10429
1445WB24X25397 GE Oven Interlock Monitor Switch
1446PRIMARY INTERLOCK SWITCH
1614GEN WB07X10430
1618GEN WB03X10125
1648GEN WB18X10149
1655GEN WB27X10466
1800GEN WB55X10427
1801GEN WB15X10069
1804GEN WB55X10428
1810WB10X10021 GE Oven Latch and Spring
2944WB01X10124 GE Microwave Nut Assembly
9999GEN 31-20958
9999GEN WB64X10003
9999GEN 49-40160
9999GEN 49-40157
9999GEN 49-40144
