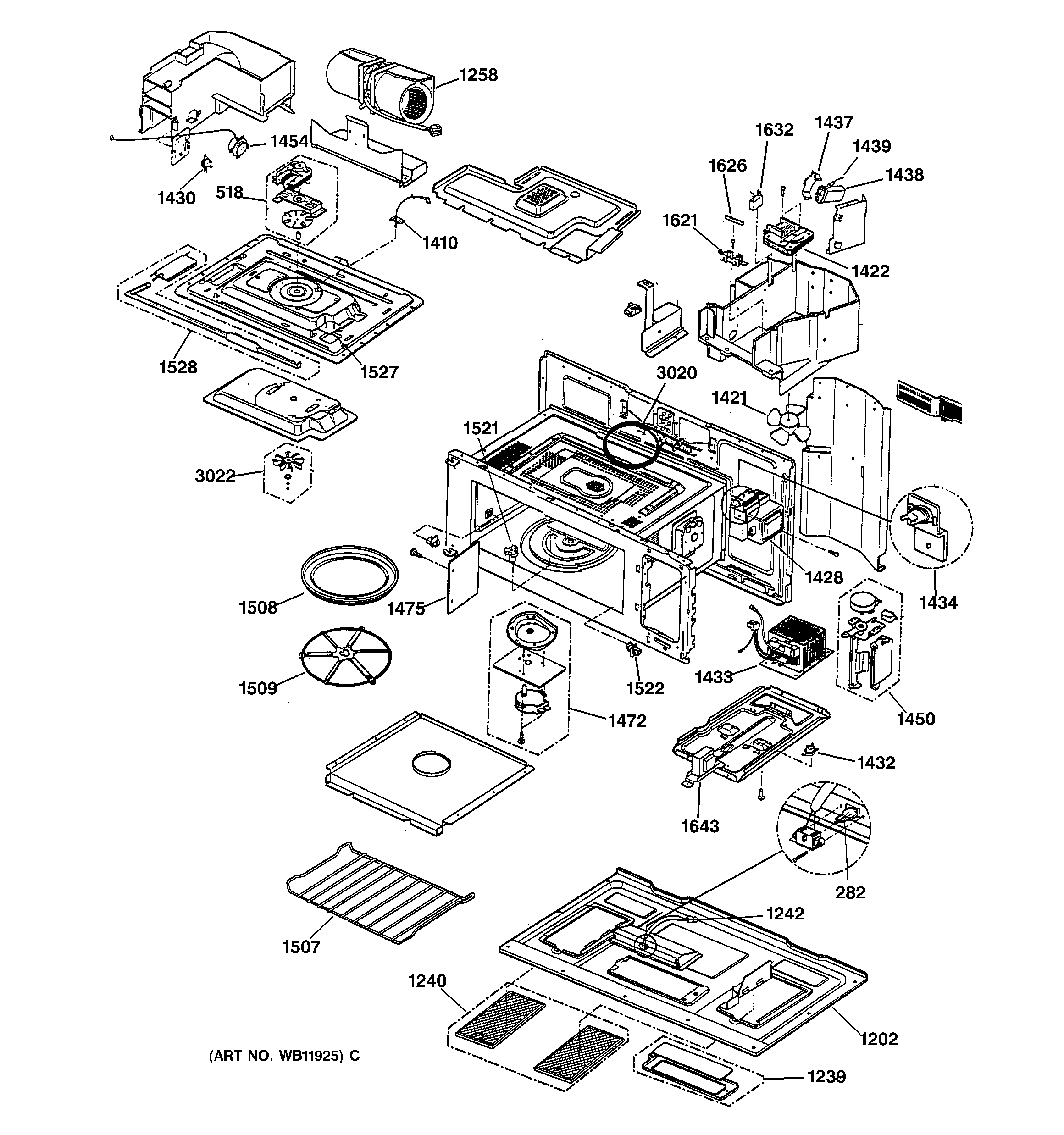

JVM1490BD03 UNIT PARTS & BASE

JVM1490BD03 UNIT PARTS & BASE

Written by

in

JVM1490BD03 UNIT PARTS & BASE

Products

PositionProduct
282WB01X10239 GE Halogen Lamp 20W 12V G4 Base
518GEN WB26X10098
1202GEN WB56X10206
1239GEN WB36X10178
1240WB06X10309 GE Grease Filter
1242GEN WB06X10310
1258WB26X36106 GE Ventilation Motor
1410WB18X10126 GE Oven Thermistor
1421FAN
1422GEN WB26X10101
1428GEN WB27X10309
1430WB20X10048 GE Oven Thermostat
1432GEN WB21X10045
1433GEN WB20X10022
1434MGT THERMO ASSY
1437GEN WB06X10316
1438CAPACITOR, H. V.
1439DIODE-CABLE
1450GEN WB06X10314
1454SENSOR ASS'Y
1472GEN WB26X10099
1475GEN WB06X10311
1507GEN WB48X10017
1508GEN 1B71961A
1509GEN WB06X10315
1521WB06X10312 GE Oven Shaft Assembly
1522GEN WB02X10750
1527GEN WB06X10317
1528GEN WB06X10318
1621FUSE HOLDER
1626WB27X10928 GE Oven Line Fuse
1632WB27X10329 GE Oven Capacitor
1643GEN WB20X10021
3020GEN WB44X10026
3022GEN WB06X10319
